Leybold RUTA W 1001 / SV 200 - NEW
| Weight |
948 lbs |
| Motor Power |
4.8 hp |
| Pumping Speed |
715 m3/h |
| Ultimate Pressure |
< 6 x 10-3 Torr |
Leybold RUTA WAU 1001 / SV 200 Roots Vacuum Pump System - NEW
SOGEVAC 2-Stage Adaptor Version
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| SOGEVAC 2-Stage |
Adaptor Version |
| Inlet connection |
DN 63 ISO-K |
| Outlet connection |
G 2" Inside thread |
| Pumping speed at 1.0 x 10-1 mbar / 7.5 x 10-2 Torr |
715 m3/h / 421 cfm |
| Ultimate partial pressure w/out gas ballast |
< 8.0 x 10-3 mbar / < 6.0 x 10-3 Torr |
| Ultimate total pressure w/ gas ballast |
< 4.0 x 10-2 mbar / < 3.0 x 10-2 Torr |
| Operating fluid |
N 62 |
| Total operating fluid capacity |
7.0 l / 7.4 qt |
Noise level to DIN 45 635 w/o gas ballast
at 1.0 x 10-1 mbar / 7.5 x 10-2 Torr |
75 dB(A) |
| Mains connection |
3-phase, 400 V, 50 Hz |
| Installed motor rating |
8.0 kW / 10.9 hp |
Power consumption
at 1.0 x 10-1 mbar / 7.5 x 10-2 Torr |
3.5 kW / 4.8 hp |
| Admissible ambient temperature |
+12 to +40°C / +54 to +104°F |
| Weight |
430 kg / 948 lbs |

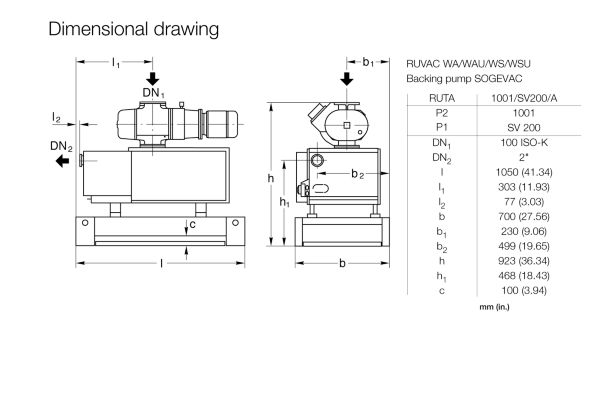

Specs - Adaptor Version
| Type |
Label |
Description |
Download |
|
|
Leybold SOGEVAC SV 200 & 300 - REBUILT |
Instruction Manual |
Download
|
|
|
Leybold RUTA Series - NEW |
Instruction & Operating Manual |
Download
|
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold RUTA WAU 1001 / SV 200 Roots Vacuum Pump System - NEW
SOGEVAC 2-Stage Adaptor Version
Part no. 02208 / 022 08
Pumping speed: 715 m3/h
Ultimate pressure: < 4 x 10-2 mbar
