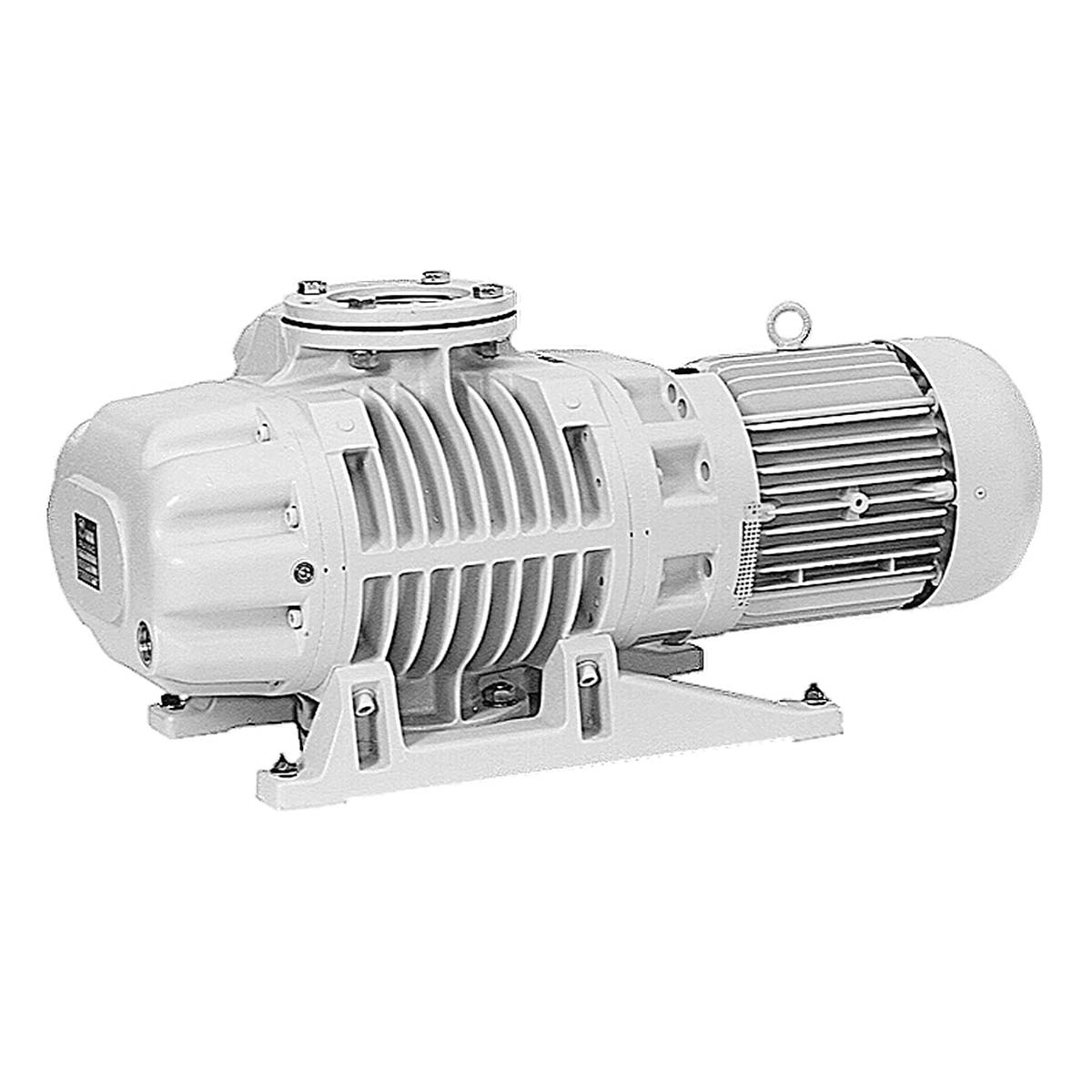

Leybold RUVAC WSU 251 - REBUILT

Name: Leybold RUVAC WSU 251 - REBUILT
Brand: Leybold
SKU: REBUILT_WS/WSU251

Be the first to review this product

$4,850

In stock

SKU

REBUILT_WS/WSU251

Request For Quote

Weight	210 lbs
Motor Power	1.5 hp
Pumping Speed	253 m³/h
Ultimate Pressure	< 8 x 10^-4 mbar

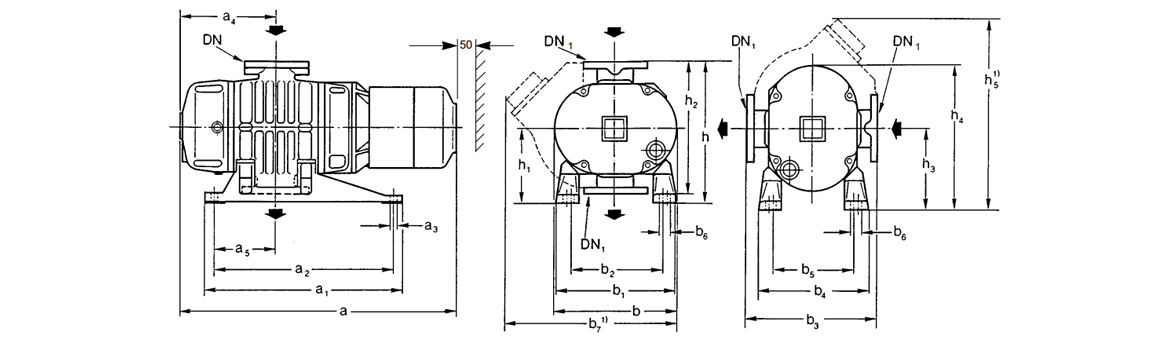

Dimensions

Description

The Leybold Vacuum RUVAC WSU 251 roots type vacuum blower is a bypass version of the WS 251 blower. The bypass enables the blower to run from atmosphere instead of requiring a pressure switch to energize it at a set point of vacuum.

11/20/2015 Oerlikon streamlined its portfolio and signed an agreement to sell its Vacuum Segment to Atlas Copco.
09/01/2016 Atlas Copco completed the acquisition of Leybold Vacuum.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Inlet connection	DN 63 ISO-K
Outlet connection	DN 63 ISO-K
Nom. Pumping speed at 50 Hz	253 m³/h / 149 cfm
Nom. Pumping speed at 60 Hz	304 m³/h / 179 cfm
Ultimate partial pressure	< 2.0 x 10^-5 / < 1.5 x 10^-5 Torr
Ultimate total pressure	< 8.0 x 10^-4 mbar / < 6.0 x 10^-4 Torr
Cut in pressure at 50 Hz	90.0 mbar / 67.5 Torr
Cut in pressure at 60 Hz	60.0 mbar / 45.0 Torr
Max. permissible pressure differnce	80.0 mbar / 60.0 Torr
Leak rate	≤ 5.0 x 10^-4 mbar l/s
Operating fluid	Leybonol LVO 100
Noise level to DIN 45 635	3-ph, 220-240/380-400 V, 50 Hz 3-ph, 200-240/380-480 V, 60 Hz
Motor rating	1,1 kW / 1,5 hp
Nominal rotation speed at 50 Hz	3,000 min^-1 / 3,000 rpm
Nominal rotation speed at 60 Hz	3,600 min^-1 / 3,600 rpm
Max. permissable rotation speed	3,600 min^-1 / 3,600 rpm
Motor protection rating	IP 55
Admissible ambient temperature	+12 to +40°C / +54 to +104°F
Weight	89 kg / 196 lbs

Specifications

Digital Manuals

Type	Label	Description	Download
	Leybold RUVAC WS / WSU Series - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Oerlikon-Leybold RUVAC WS / WSU 251 Roots Vacuum Blower - REBUILT

91722 / 917 22  WS 251
91727 / 917 27  WS 251  PFPE
91723 / 917 23  WSU 251
91728 / 917 28  WSU 251 PFPE
11722 / 117 22  WS 251
11727 / 117 27  WS 251  PFPE
11723 / 117 23  WSU 251
11728 / 117 28  WSU 251 PFPE
