Leybold SCREWLINE SP 630 - NEW

Name: Leybold SCREWLINE SP 630 - NEW
Brand: Leybold
SKU: NEW_SP630

Be the first to review this product

Call for Price

In stock

SKU

NEW_SP630

Request For Quote

Weight	1166 lbs
Motor Power	20 hp
Pumping Speed	630 m³/h
Ultimate Pressure	1 x 10^-2 mbar

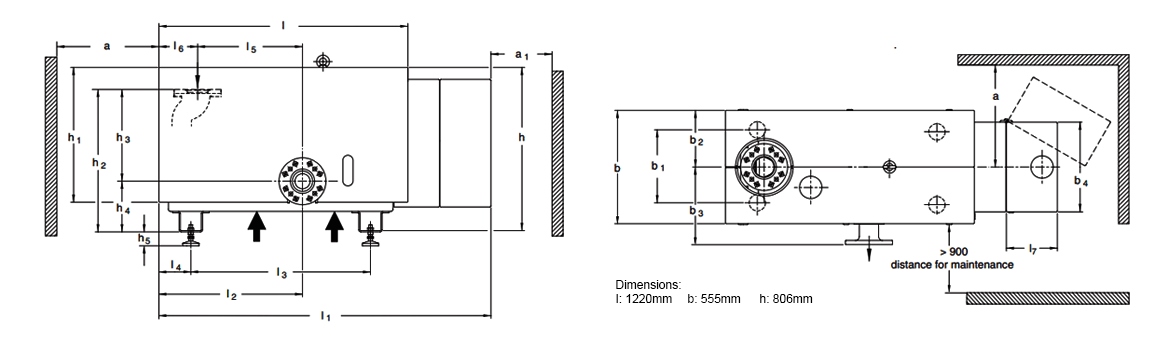

Dimensions

Description

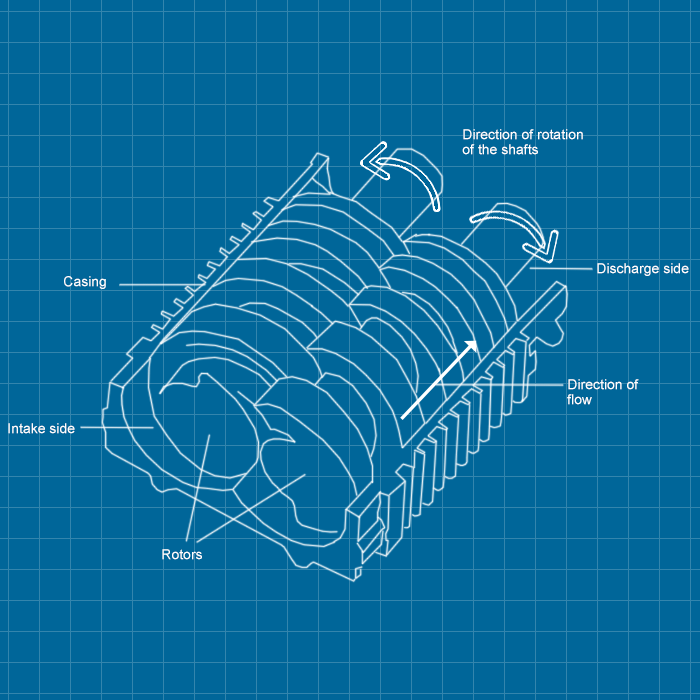

Leybold SCREWLINE SP 630 Dry Screw Vacuum Pump - NEW

The SCREWLINE pumps were developed in view of the special requirements of industrial applications. The innovative design allows these pumps to be used whenever reliable, compact and low maintenance vacuum solutions are required. The pumps offer a high degree of flexibility. Inlet and exhaust connections are made through universal flanges, respectively clamped flanges, permit simple integration within the system. Through the accessories which are available, the pump can be optimally adapted to the individual requirements of differing applications.

Pumping speed: 630 m³/h
Ultimate pressure: 1 x 10^-2 mbar

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Inlet connection	EN 1092-2 - PN 6 - DN 100 EN 1092-2 - PN 16 - DN 100 ASME B 16.5 NPS 4 class 150
Outlet connection	ISO 1609-1986 (E)-100 (DN 100 ISO-K)
Pumping speed at 50/60 Hz	630 m³/h / 371 cfm
Ultimate total pressure w/out gas ballast at 50/60 Hz	≤ 1.0 x 10^-2 mbar / ≤ 7.5 x 10^-3 Torr
Ultimate total pressure w/ gas ballast at 50 Hz	≤ 1.0 x 10^-1 mbar / ≤ 7.5 x 10^-2 Torr
Water vapor tolerance at 50/60 Hz	40.0 mbar / 30.0 Torr
Water vapor capacity at 50/60 Hz	14.0 kg/h
Operating fluid gear box	LEYBONOL LVO 210
Operating fluid capacity	15.0 l / 15.9 qt
Noise level to DIN 45 635 w/out gas ballast
at 50 Hz	73 dB(A)
at 60 Hz	75 dB(A)
Mains connection	3-phase, 200/400 V, 50 Hz
Motor rating at 50/60 Hz	15.0 kW / 20.0 hp
Rotation speed at 50 Hz	2,930 min^-1 / 2,930 rpm
Rotation speed at 60 Hz	3,530 min^-1 / 3,530 rpm
Motor protection rating	IP 55
Admissible ambient temperature	+12 to +40°C / +54 to +104°F
Weight	530 kg / 1,166 lbs

Specifications

Digital Manuals

Type	Label	Description	Download
	Leybold Dry Compressing Vacuum Pumps - NEW	Excerpt / Catalog Part	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold SCREWLINE SP 630 Dry Screw Vacuum Pump - NEW

Part no. 117007
Pumping speed: 630 m³/h
Ultimate pressure: ≤ 1 x 10^-2 mbar
three-phase motor: 190V-210V / 380V-420V, 50Hz
SP-GUARD - manually operated gas ballast valve

Part no. 117008
Pumping speed: 630 m³/h
Ultimate pressure: ≤ 1 x 10^-2 mbar
3-phase motor: 190V-210V / 380V-420V, ±5%, 60Hz
SP-GUARD - manually operated gas ballast valve

Part no. 117105
Pumping speed: 630 m³/h
Ultimate pressure: ≤ 1 x 10^-2 mbar
3-phase motor: 190V-210V / 380V-420V, ±5%, 50Hz
SP-GUARD - electromagnetic gas ballast valve 24V DC adapter for RUVAC 2001

Part no. 117106
Pumping speed: 630 m³/h
Ultimate pressure: ≤ 1 x 10^-2 mbar
3-phase motor: 190V-210V / 380V-420V, ±5%, 60Hz
SP-GUARD - electromagnetic gas ballast valve 24V DC adapter for RUVAC 2001

Part no. 117107
Pumping speed: 630 m³/h
Ultimate pressure: ≤ 1 x 10^-2 mbar
3-phase motor: 190V-210V / 380V-420V, ±5%, 50Hz
SP-GUARD - manually operated gas ballast valve

Part no. 117108
Pumping speed: 630 m³/h
Ultimate pressure: ≤ 1 x 10^-2 mbar
3-phase motor: 190V-210V / 380V-420V, ±5%, 60Hz
SP-GUARD - manually operated gas ballast valve

Part no. 117113
Pumping speed: 630 m³/h
Ultimate pressure: ≤ 1 x 10^-2 mbar
3-phase motor: 190V-210V / 380V-420V, ±5%, 50Hz
SP-GUARD - manually operated gas ballast valve purge gas kit

Part no. 117114
Pumping speed: 630 m³/h
Ultimate pressure: ≤ 1 x 10^-2 mbar
3-phase motor: 190V-210V / 380V-420V, ±5%, 60Hz
SP-GUARD - manually operated gas ballast valve purge gas kit

Part no. 117117
Pumping speed: 630 m³/h
Ultimate pressure: ≤ 1 x 10^-2 mbar
3-phase motor: 190V-210V / 380V-420V, ±5%, 50Hz
SP-GUARD - electromagnetic gas ballast valve 24V DC adapter for RUVAC 2001 - purge gas kit - castors

Part no. 117118
Pumping speed: 630 m³/h
Ultimate pressure: ≤ 1 x 10^-2 mbar
3-phase motor: 190V-210V / 380V-420V, ±5%, 60Hz
SP-GUARD - electromagnetic gas ballast valve 24V DC adapter for RUVAC 2001 - purge gas kit - castors
