Leybold SCROLLVAC SC 5 D - NEW

Name: Leybold SCROLLVAC SC 5 D - NEW
Brand: Leybold
SKU: NEW_SC5D

Be the first to review this product

Call for Price

In stock

SKU

NEW_SC5D

Request For Quote

Weight	31 lbs
Motor Power	0.2 hp
Pumping Speed	4.8 m³/h
Ultimate Pressure	≤ 5 x 10^-2 mbar

Dimensions

Description

Leybold SCROLLVAC SC 5 D Dry Scroll Vacuum Pump - NEW

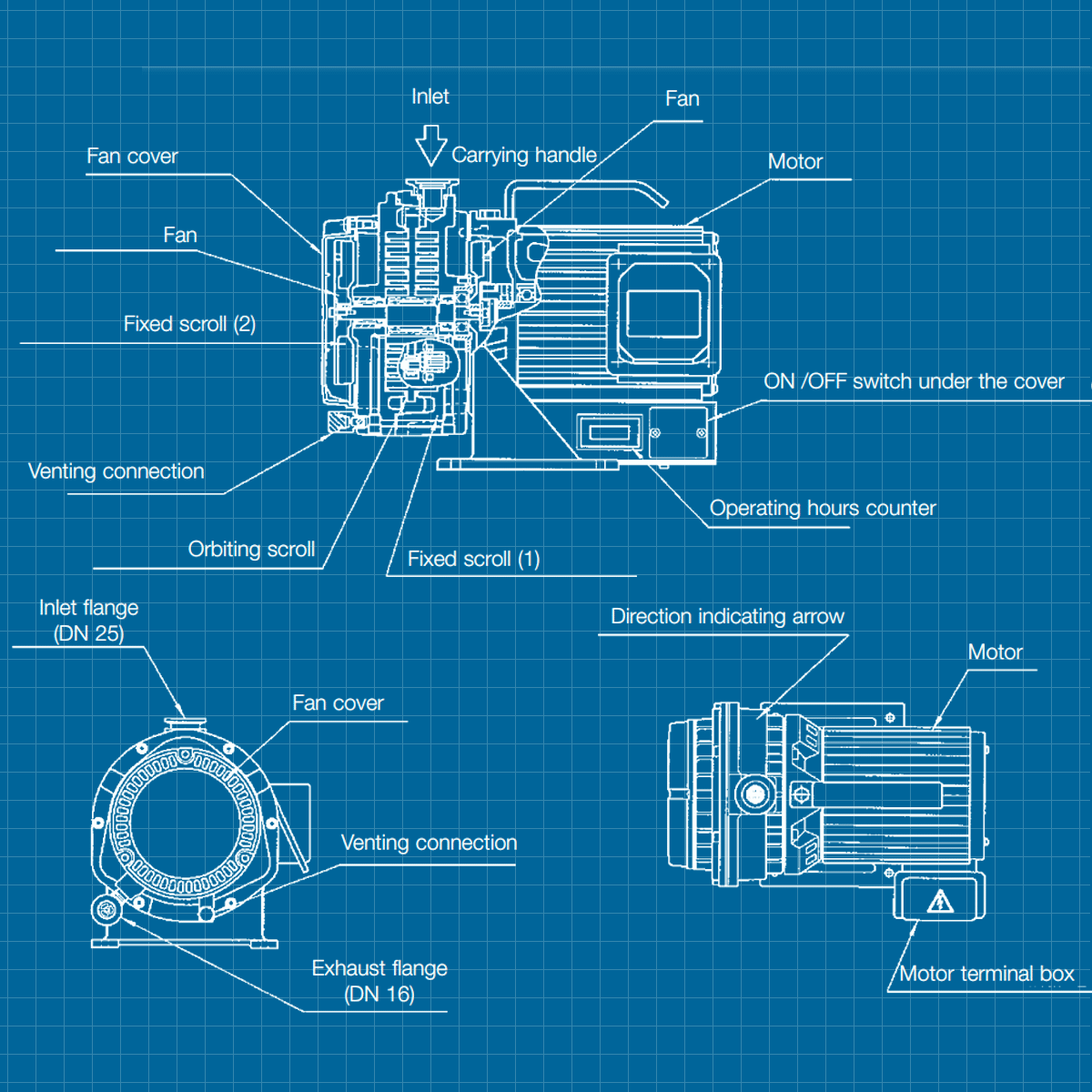

The dry compressing SCROLLVAC pumps operate on the principle of a scroll compressor. Two or more Archimedes spirals engaging each other. The vacuum is generated by reducing the volume of the pockets and compressing gases from the outside towards the inside thereby pumping the gases. SCROLLVAC pumps operate absolutely oil-free with a high effective pumping speed in the whole range of operation.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Nominal pumping speed m³/h (cfm)	50 Hz: 5.4 (3.2) 60 Hz: 6.4 (3.8)
Pumping speed m³/h (cfm)	50 Hz: 4.8 (2.8) 60 Hz: 6.0 (3.5)
Attainable ultimate pressure mbar (Torr)	≤ 0.05 (≤ 0.038)
Leak rate mbar l/s	1 x 10^-6
Maximum inlet pressure	Atmosphere
Permissable ambient temperature	+5 to +40°C +41 to +104°F
Connections	Inlet: DN 25 Exhaust: DN 16
Cooling	Air
Water vapor capacity with purge, max.	0.2 g/h 9 l/min
Protection class	IP 20
Motor power	150 W (0.20 hp)
Motor speed	50 Hz: 1,440 min^-1 (1,440 rpm) 60 Hz: 1,740 min^-1 (1,740 rpm)
Motor voltage (1-phase)	50 Hz: 100 V 60 Hz: 100 - 115 V 50/60 Hz: 200 - 230 V
Noise level at 1 m (3.5 ft), free field measurement	≤ 58 dB(A)

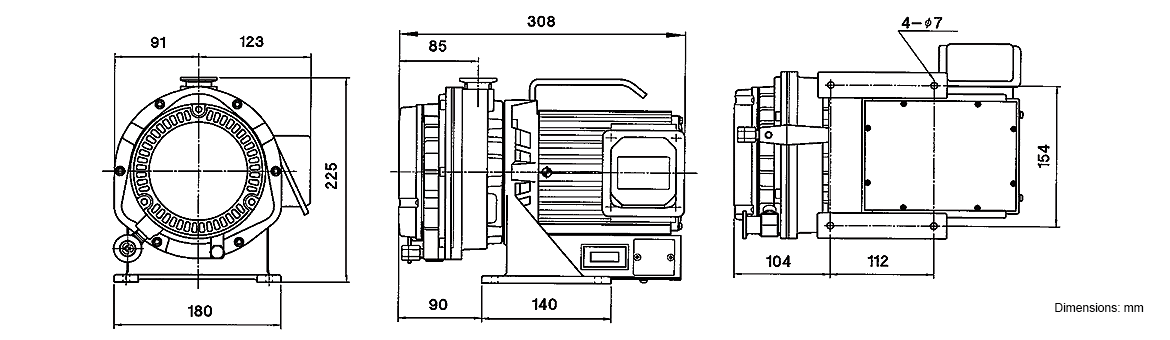

Dimensions	400 x 252 x 336 mm (15.75 x 9.92 x 13.23 in)
Weight (1-phase)	25 kg (55.2 lbs)

Specifications

Digital Manuals

Type	Label	Description	Download
	Leybold SCROLLVAC SC Series - NEW	Operating Instructions	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold SCROLLVAC SC 5 D Dry Scroll Vacuum Pump - NEW

Part no. 133000 / 133 000
Pumping speed (50 Hz): 5.4 m³/h
Pumping speed (60 Hz): 6.4 m³/h
Ultimate pressure: 0.05 mbar
Single-phase motor: 230 V, 50/60 Hz

Part no. 133100 / 133 100
Pumping speed (50 Hz): 5.4 m³/h
Pumping speed (60 Hz): 6.4 m³/h
Ultimate pressure: 0.05 mbar
1-phase motor: 115 V, 50/60 Hz
