Leybold SOGEVAC SV40 - REBUILT
Weight
88 lbs
Motor Power
1.5 hp
Pumping Speed
40 m3 /h
Ultimate Pressure
≤ 5 x 10-1 mbar

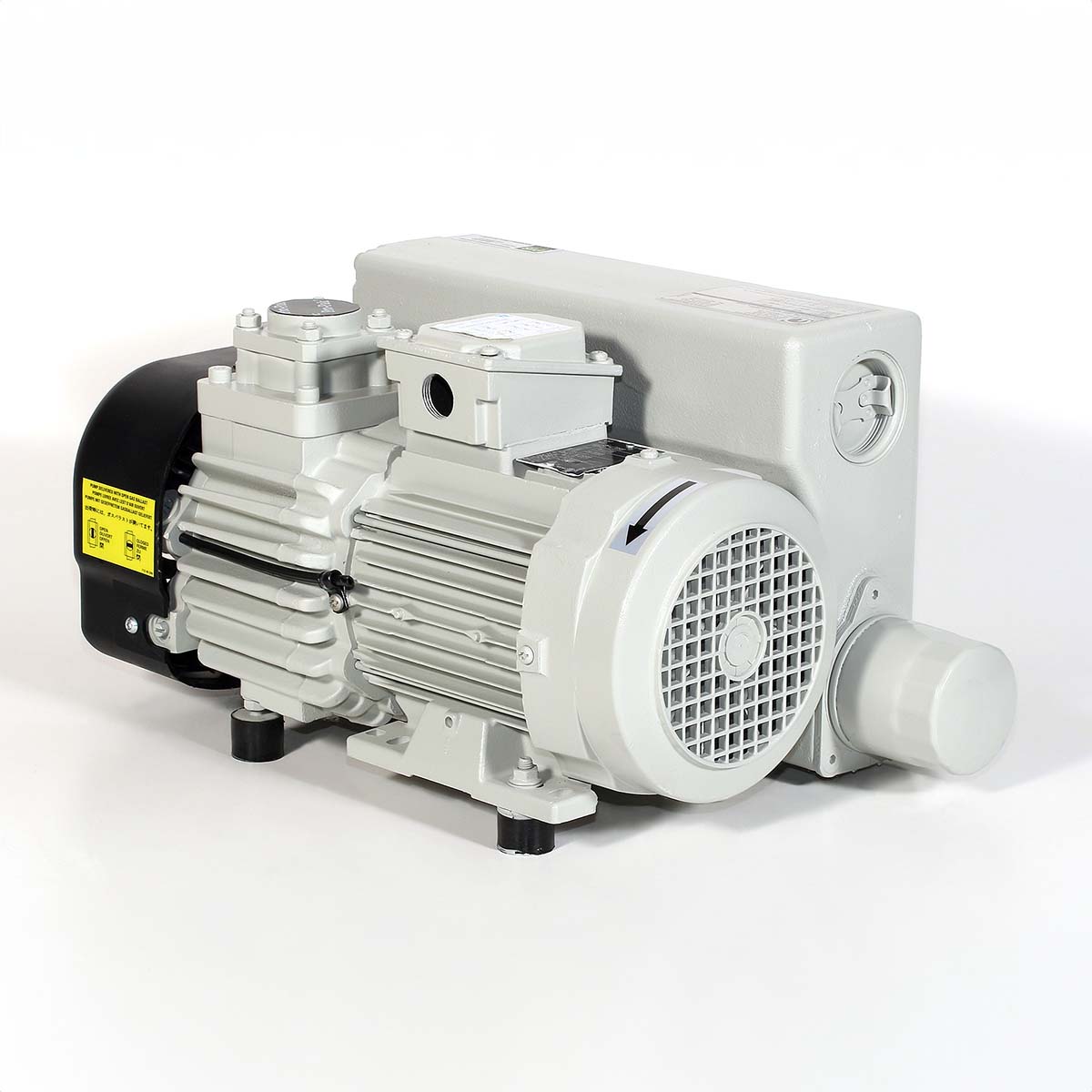

Leybold SOGEVAC SV40 Rotary Vane Vacuum Pump - REBUILT
PTB Sales' technicians rebuild pumps to OEM specifications led by a Leybold Vacuum factory-trained mechanic. We also offer repair service for your used vacuum pumps. View the other SOGEVAC SV models.
Questions? send an email to our sales team!
50 Hz
60 Hz
Nominal speed
46 m3 h-1
55 m3 h-1
Pumping speed
40 m3 h-1
48 m3 h-1
Ultimate partial pressure w/out gas ballast
≤ 0.5 mbar
Ultimate total pressure w/ gas ballast standard
≤ 1.5 mbar
Ultimate total pressure w/ big gas ballast
≤ 4 mbar
Water vapour tolerance w/ gas ballast standard
15 mbar
20 mbar
Noise level
63 dB
68 dB
Water vapour tolerance w/ big gas ballast
30 mbar
40 mbar
Mains voltage (Standard)
230/400 V
230/460 V
Motor power
1.1 kW
1.5 kW
Type of protection
IP54
TEFC / IP54
Leak rate
1 x 10-3 mbar.l/s
Weigh
40 kg
Oil capacity min./max.
2/2 liter
Intake connection
G11/4
NPT 11/4
Exhaust connection
G11/4
NPT 11/4
Specifications
Type
Label
Description
Download
Leybold SAS SOGEVAC Series - REBUILT
Operating Instructions
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold SOGEVAC SV40 Rotary Vane Vacuum Pump - REBUILT
10904 / 109 04 230/400 V 50 Hz, 230/460 V 60 Hz three-phase
95504 / 955 04 200 V - 50/60 Hz 3-phase
10905 / 109 05 230/400 V 50 Hz, 230/460 V 60 Hz 3-phase w/ integrated gas ballast valve
955054 200 V 50/60 Hz 3-phase w/ integrated gas ballast valve
9500513 USA-NEMA DOT4 WITH G B
