Leybold TRIVAC D 2.5 E - NEW
Call for Price
In stock
SKU
NEW_D2.5E
| Weight | 35.4 lbs |
|---|---|
| Motor Power | 0.38 hp |
| Pumping Speed | 2.7 m3/h |
| Ultimate Pressure | ≤ 2 x 10-3 mbar |

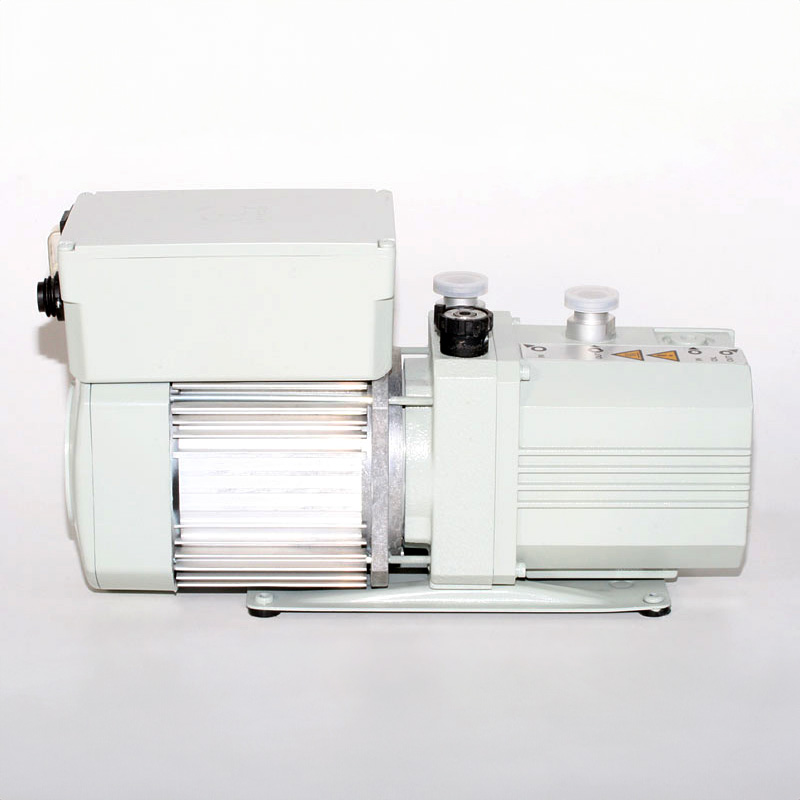

Leybold TRIVAC D 2.5 E Rotary Vane Vacuum Pump - NEW
New customers’ requirements as well as increased environmental requirements gave rise to the further development of the TRIVAC E. Besides standard voltages and frequencies, Leybold Vacuum offers world motors, which are specially required by OEMs.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Nominal pumping speed | |
| 50 Hz | 3.2 m3/h / 1.9 cfm |
| 60 Hz | 3.6 m3h / 2.1 cfm |
| Ultimate partial pressure w/o gas ballast | |
| 50 Hz | ≤ 5 x 10-4 mbar (≤ 3.8 x 10-4 Torr) |
| 60 Hz | ≤ 5 x 10-4 mbar (≤ 3.8 x 10-4 Torr) |
| Ultimate total pressure without gas ballast | |
| 50 Hz | ≤ 2 x 10-3 mbar (≤ 1.5 x 10-3 Torr) |
| 60 Hz | < 2 x 10-3 mbar, (< 1.5 x 10-3 Torr) |
| Ultimate total pressure with gas ballast | |
| 50 Hz | ≤ 3 x 10-2 (≤ 2.3 x 10-2) |
| 60 Hz | ≤ 3 x 10-2 (≤ 2.3 x 10-2) |
| Water vapor tolerance | |
| Stage 1 | 10 g/h / 10 g/h |
| Stage 2 | 20 g/h / 20 g/h |
| Stage 3 | 60 g/h / 75 g/h |
| Water vapor tolerance | |
| Stage 1 | 20 g/h / 25 g/h |
| Stage 2 | 40 g/h / 50 g/h |
| Stage 3 | 60 g/h / 75 g/h |
| Oil filling, min/max | 0.4/0.7 l |
| Noise level | ≤ 47 dB(A) |
| Motor rating | 250 W |
| Nominal speed | 1,400 rpm |
| Type of protection | IP 54 |
| Weight | 16.1 kg |
| Connections | 16 KF |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold TRIVAC B / BCS - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold TRIVAC D 2.5 E Rotary Vane Vacuum Pump - NEW 140005 / 140 005 single-phase 230V 50/60Hz (CH) 140001 / 140 001 1-phase 100/230V 50/60Hz 140000 / 140 000 1-phase 230V 50/60Hz (Schuko) Part numbers being phased out: 140009 / 140 009 140004 / 140 004 140002 / 140 002 140003 / 140 003
