Leybold Tianjin TRIVAC D 40 L - NEW
| Weight | 174 lbs |
|---|---|
| Pumping Speed | 50 m3/h |
| Ultimate Pressure | 3 x 10-3 mbar |
Leybold Tianjin TRIVAC D 40 L Rotary Vane Vacuum Pump - NEW
The TRIVAC L pumps are two-stage, oil sealed, sliding-vane vacuum pumps.
The pump is designed for pumping inert gases in the range of medium vacuum, between atmospheric pressure and the ultimate pressure of the pump. When removing condensable vapours, a gas ballast valve must be opened.
TRIVAC L pumps are capable of pumping gases, vapours and evacuating vessels or vacuum systems down into the medium vacuum range. The standard version of the pump is not suitable for pumping oxygen exceeding 25% and for pumping hazardous substances or aggressive or corrosive gases.
Through an intermediate flange, a four-pole three-phase motor is mounted to the coupling housing. The pump and motor shafts are directly connected by a flexible coupling. The oil-level glass, drain valve and nameplate are arranged on the same side. All vacuum connections are default on the top of the pump.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Parameter | Unit | 50 Hz | 60 Hz |
|---|---|---|---|
| Nominal pumping speed 1) | m3/h (cfm) | 49 (28.8) | 59 (34.7) |
| Pumping speed 1) | 42 (24.7) | 50 (29.4) | |
| Ultimate total pressure w/out gas ballast 1) | mbar (Torr) | 3 x 10-3 (2.2 x 10-3) | |
| Ultimate total pressure w/ gas ballast 1) OP1 | 6 x 10-3 (4.5 x 10-3) | ||
| Ultimate total pressure w/ gas ballast 1) OP2 | 2 x 10-2 (1.5 x 10-2) | ||
| Water vapour tolerance w/ gas ballast OP2 | 35 (26.2) | ||
| Water vapour capacity 50/60 Hz | g/h (lb/h) | 1,090 (2.40) | 1,308 (2.88) |
| Oil filling, minimum/maximum | l (qt) | 3.1/4.1 (3.2/4.3) | |
| Admissible ambient temperature | °C (°F) | 10 ~ 40 (50 ~ 104) | |
| Noise level w/out / w/ gas ballast 2) OP1 | dB(A) | 58/60 | |

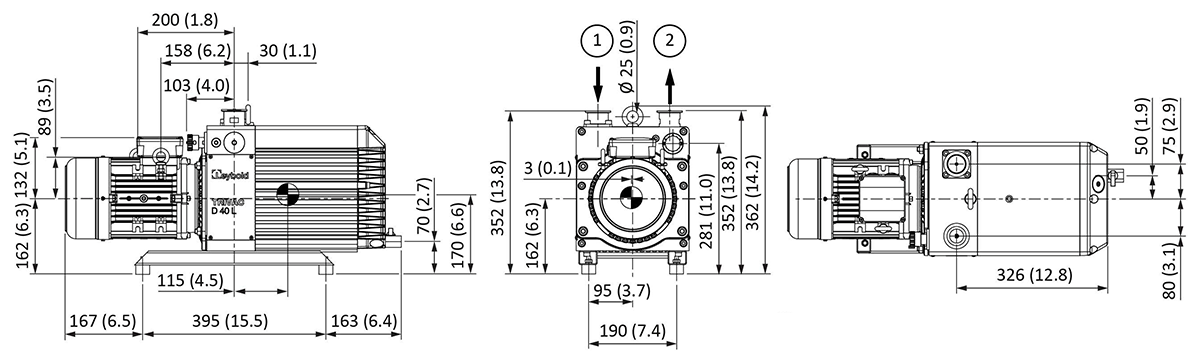

| Pump dimensions (L x W x H) | mm (inch) | 725 x 244 x 352 (28.5 x 9.6 x 13.8) | |
| Pump dimensions w/out motor (L x W x H) | 568 x 244 x 352 (22.3 x 9.6 x 13.8) | ||
| Shipping dimensions (L x W x H) | 950 x 446 x 538 (37.4 x 17.5 x 21.1) | ||
| Net weight | kg (lbs) | 79 (174.1) | |
| Net weight w/out motor | 59 (130.0) | ||
| Total shipping weight | 91 (200.6) | ||
| Intake connection | - | DN 40 ISO-KF | |
| Exhaust connection | |||
1) For DIN 28400 and following numbers, with standard gas ballast.
2) Operated at the ultimate pressure without/with gas ballast OP1, free-field measurement at a distance of 1 m.
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold Tianjin TRIVAC L Series - NEW | Operating Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold Tianjin TRIVAC D 40 L Rotary Vane Vacuum Pump - NEW 1019040V00 TRIVAC D 40 L EU/CN, LVO 130 1019040V01 TRIVAC D 40 L EU/US, LVO 130 1019040V02 TRIVAC D 40 L JP/KR, LVO 130 1019040V03 TRIVAC D 40 L BS, LVO 130
