Leybold TURBO.POWER 500 - NEW
Call for Price
In stock
SKU
NEW_TP500
| Height | 130 mm |
|---|---|
| Width | 250 mm |
| Length | 100 mm |
| Weight | 8.80 lbs |
Leybold TURBO.POWER 500 Power Supply - NEW
For operating and controlling of the TURBOVAC MAG turbomolecular vacuum pumps an electronic frequency converter is essential. The frequency converter must match to vacuum pump. Beside bench top units and units for rack mounting there are in some cases also converters which are directly integrated within the vacuum pump. For communication and system integration several interfaces are available.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Mains connection | 100-240 V, 50/60 Hz |
| Max output voltage | 48 V DC |
| Max power consumption | 650 W |
| Interfaces | - - - |
| Protection rating | IP 30 |
| Admissible ambient temperature | 10-45°C |

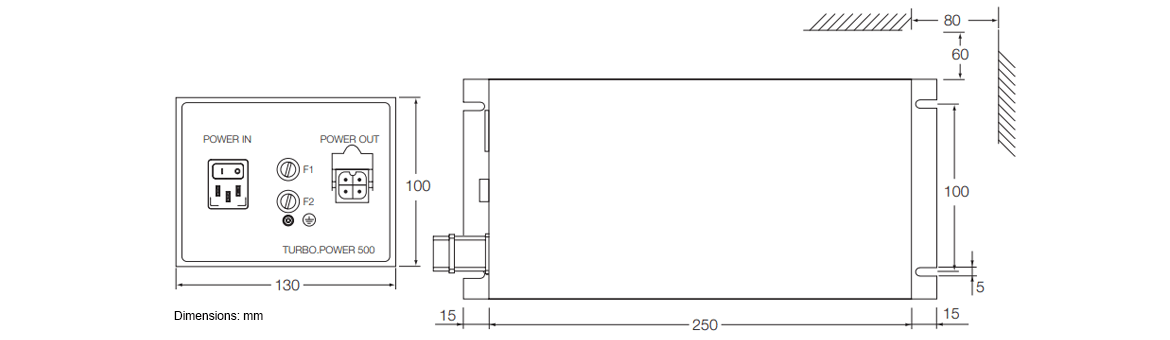

| Dimensions | 250 x 130 x 100 mm |
| Weight | 4 kg (8.8 lbs) |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold High Vacuum - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold TURBO.POWER 500 Power Supply - NEW Part no. 410300V0221 Mains connection: 100-240 V AC, 50/60 Hz Output voltage: 48 V DC
