Leybold TURBOTRONIK NT 12 - REBUILT

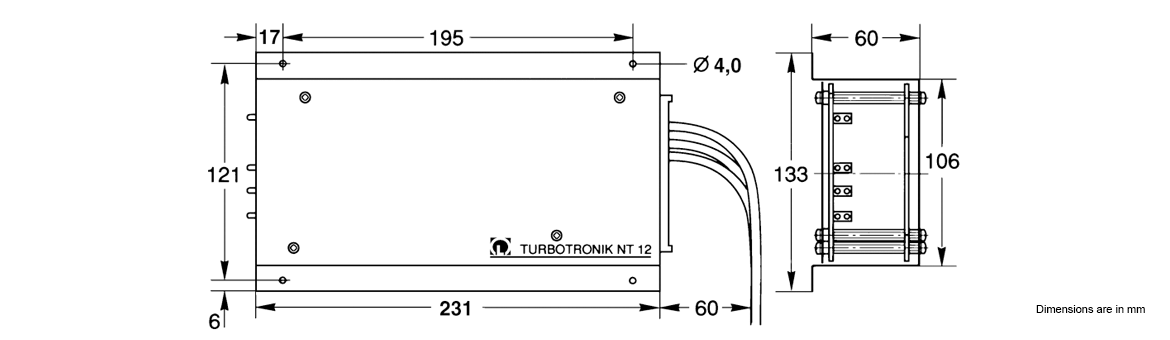

Height
60 mm
Width
133 mm
Length
231 mm
Weight
3.3 lbs
"
Leybold Vacuum TURBOTRONIK NT 12 Frequency Converter - REBUILT
Features:
Chassis unit

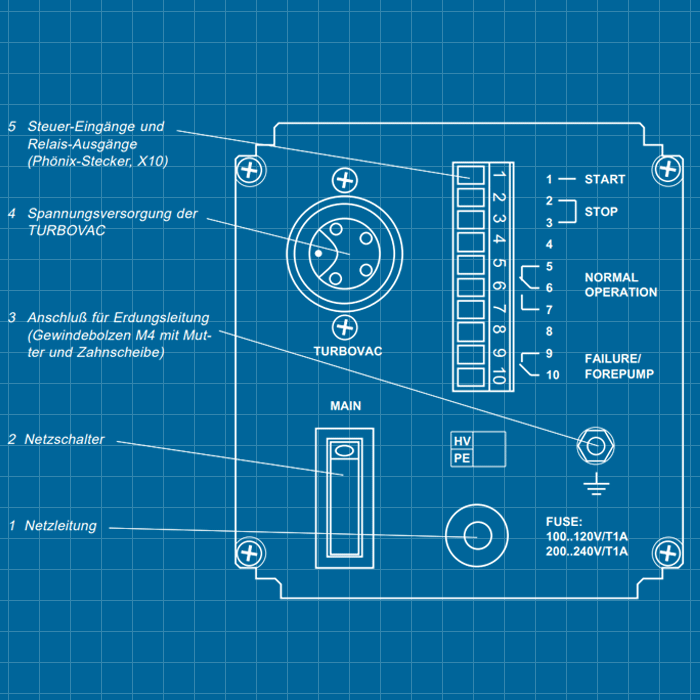

Inputs for remote control and process controller
Freely assignable relays
4 LEDs on the front panel
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
Supply voltage ranges
100-140 VAC, -10% / +16%
Can be switched-over to
200-240 VAC, ±10%
Supply frequency
50/60 Hz
Line fuse (F1 internal)
T 1A / 250 V
Rated speed of the TURBOVAC
72,000 rpm = 1,200 Hz
Power consumption
Briefly when accelerating
up to 64 VA (45 W)
Continuously in operation (rated speed)
35 VA (18 W)
Idle operation (no-load)
6 VA (3 W)
Output voltage
3 x 150 V
Supply frequency
1,200 Hz
Frequency range of the output voltage
220-1,250 Hz
Ambient temperature in operation
0°C - 40°C
Storage temperature
-40°C to +85°C
Max. load capability of the relay contacts
Switching voltage
≤ 250 VAC, ≤ 30 VDC
Switching current
≤ 6 AAC, ≤ 5 VDC
Switching power for DC
≤ 150 W
Switching power for AC
≤ 1500 VA
Degree of protection
The units have degree of protection IP20 in accordance with EN 60 529. An increased degree of protection, e.g. IP54 can only be realized by mounting the units in other housings.
Weight
1.5 kg
Specifications
Type
Label
Description
Download
Leybold TURBOTRONIK NT 10/12/13 - REBUILT
Operating Manual
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold Vacuum TURBOTRONIK NT 12 Frequency Converter - REBUILT
85904 / 859 04 220-240V
85905 / 859 05 100-120V
NT 13
85906 / 859 06 200-240V
85907 / 859 07 100-120V
