Leybold TURBOVAC 151 - REBUILT
| Weight |
20.00 lbs |
| Pumping Speed |
115 l/s |
| Ultimate Pressure |
< 1 x 10-10 mbar |
|---|

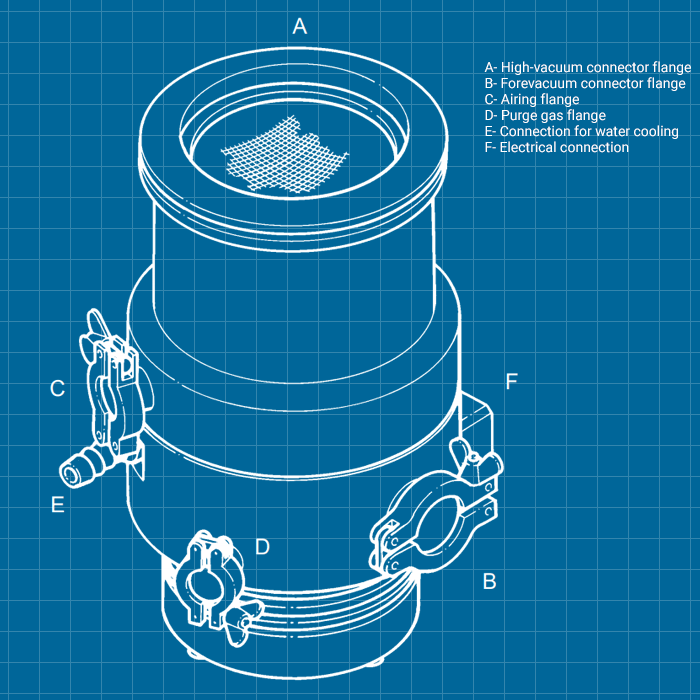

Leybold Vacuum TURBOVAC 151 Turbomolecular Pump - REBUILT
We offer repair service and are capable of rebuilding, balancing and testing this pump.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| TURBOVAC |
151 |
151 C |
| High-vacuum port |
DN 63 ISO-K |
DN ISO-K
DN 100 CF |
DN 100 ISO-K |
| Pumping speed for N2 |
115 l/s |
145 l/s |
| Ultimate pressure |
< 10-10 mbar |
| Forevacuum pressure |
0.5 mbar |
| Recommended forevacuum pump |
TRIVAC D 4 B |
TRIVAC D 16 B |
| Recommended frequency converter |
NT 20 |
| Speed |
50,000 rpm |
| Run-up time |
approx. 2 min. |
| Coolant connection nozzle |
10 mm |
| Coolant temperature |
10 - 25°C |
| Coolant flow rate at 15°C |
20 l/h-1 |
| Forevacuum port |
DN 25 KF |
| Purge gas port |
- |
DN 10 KF |
| Vent port |
DN 10 KF |
| Weight |
approx. 8 kg |
| Max. ambient temperature at operation |
55°C |
| Max. bakeout temperature at CF flange |
- |
100°C |
Specifications
| Type |
Label |
Description |
Download |
|
|
Leybold TURBOVAC 50 to 1000 - REBUILT |
Operating Instructions |
Download
|
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold Vacuum TURBOVAC 151 Turbomolecular Pump - REBUILT
85631 / 856 31 151 DN 100 ISO-K
85632 / 856 32 151 DN 100 CF
85633 / 856 33 SHIM; DN 100 ISO
85635 / 856 35 151 C DN 100 ISO-K
