Leybold TURBOVAC 250 i / iX - REBUILT
Call for Price
In stock
SKU
REBUILT_250iX
| Weight | 9.9 lbs |
|---|---|
| Pumping Speed | 225 l/s |
| Ultimate Pressure | 5 x 10-10 mbar |

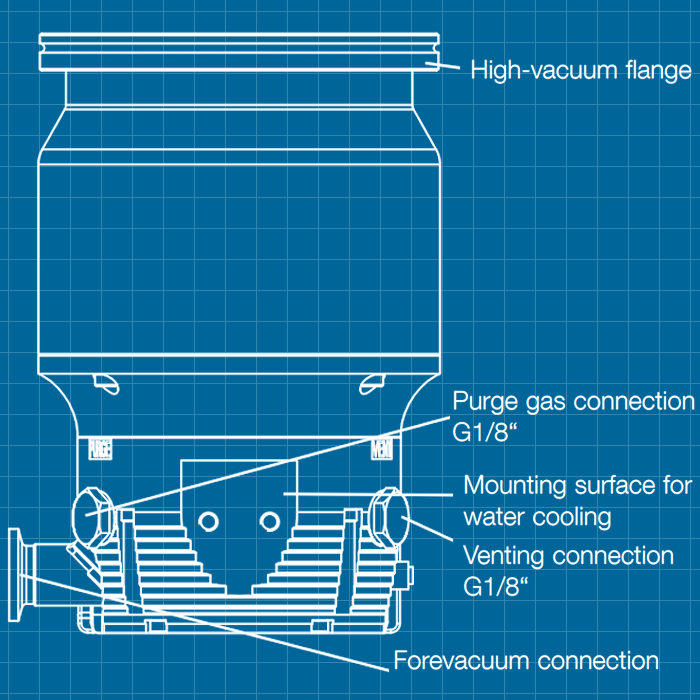

Leybold TURBOVAC 250 i / iX Turbomolecular Vacuum Pump - REBUILT
The Leybold Vacuum product line TURBOVAC i / iX with integrated drive electronics provides best pumping performance on ISO 100 and 160 flange size. It allows easiest pump integration, operation and control thanks to flexible housing and electronic options and a flexible range of accessories.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| TURBOVAC | 250 i | 250 iX |
|---|---|---|

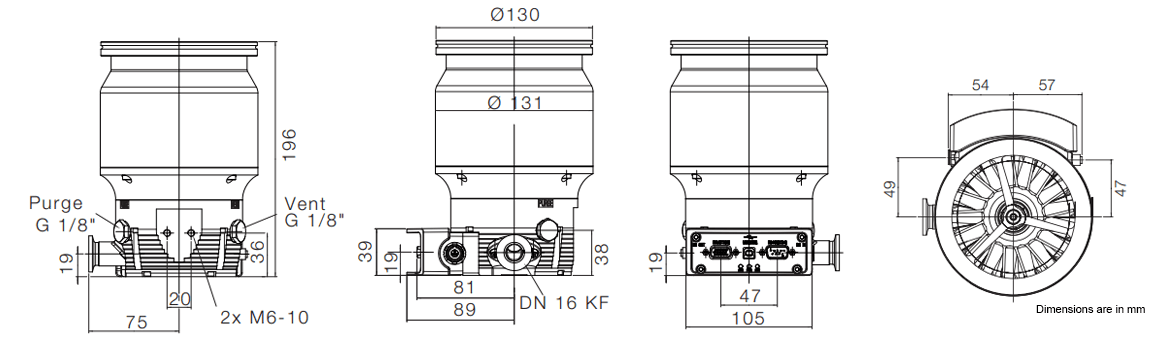

| Inlet connection | DN 100 ISO-K / 100 CF | |
| Outlet connection | DN 16 KF | |
| Pumping speed l/s | ||
| N2 | 225 | |
| Ar | 210 | |
| He | 250 | |
| H2 | 210 | |
| Gas throughput mbar x l/s | ||
| N2 | 6 | |
| Ar | 3 | |
| He | 6 | |
| H2 | > 10 | |
| Compession ratio | ||
| N2 | 1 x 1011 | |
| Ar | 1 x 1011 | |
| He | 1 x 108 | |
| H2 | 2 x 107 | |
| Ultimate pressure ISO-K/CF w/ 2-stage oil-sealed rotary vane pump |
< 8 x 10-8 mbar (≤ 5 x 10-10 Torr) | |
| Max. permissable fore-vacuum pressure for N2 | 10.0 mbar | |
| Operating speed | 60,000 rpm | |
| Standard cooling | Convection | |
| Optional cooling | Air / Water | |
| Weight | 4.0 kg (6.6 lbs) | 4.5 kg (7.1 lbs) |
| Recommended fore-vacuum pumps | ||
| TRIVAC | D 2,5 E / D 4 B | |
| SCROLLVAC | SC 5 D / SC 15 D | |
| DIVAC | 3.8 HV3 | |
| Supply voltage | 24/48 VDC ±10% | |
| Max. current consumption | 10 A at 24 VDC | |
| Max. power consumption | 240 W | |
| Interfaces | USB, 15 pin digital I/O, Anybus Optional RS485, RS232, Profibus (additional on request) |
|
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold TURBOVAC i(X) - REBUILT | Operating Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold TURBOVAC 250 i / iX Turbomolecular Vacuum Pump - REBUILT 820051V1000 250 i DN 100 ISO-K w/out integrated vacuum system controller 820051V3300 250 iX DN 100 ISO-K w/ integrated vacuum system controller 820061V1000 250 i DN 100 CF w/out integrated vacuum system controller 820061V3300 250 iX DN 100 CF w/ integrated vacuum system controller
