Leybold TURBOVAC 361 C - NEW
Call for Price
In stock
SKU
NEW_TMP361C
| Weight | 26 lbs |
|---|---|
| Pumping Speed | 345 l/s |
| Ultimate Pressure | < 1 x 10-10 mbar |
Leybold TURBOVAC 361 C Turbomolecular Vacuum Pump - NEW
The TURBOVAC turbomolecular vacuum pumps with mechanical rotor suspension are used in the pressure range from 10-1 mbar (0.75 x 10-1 Torr) to 10-10 mbar (0.75 x 10-1 Torr). Pumping speeds for air vary from 35 l/s to 2,400 l/s. Because of its compact design, the most reliable ceramics ball bearings and the simplicity of operation, this line of pumps is used in all high vacuum and ultrahigh vacuum areas of application.
Typical Applications
- Leak detectors
- Mass spectrometers
- Data storage
- Optical coating
- R & D: UHV systems, Particle accelerators
- Load locks and transfer chambers
Technical Features
- Small footprint
- Installation in any orientation
- Oil-free pump for generating clean high and ultrahigh vacuum conditions
- Bearing temperature measurement through the TURBO.DRIVE TD 20 classic
Advantages to the User
- Space-saving
- Easy to integrate into complex vacuum systems
- Low operating costs
- Highly reliable operation also in processes loaded with particles
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

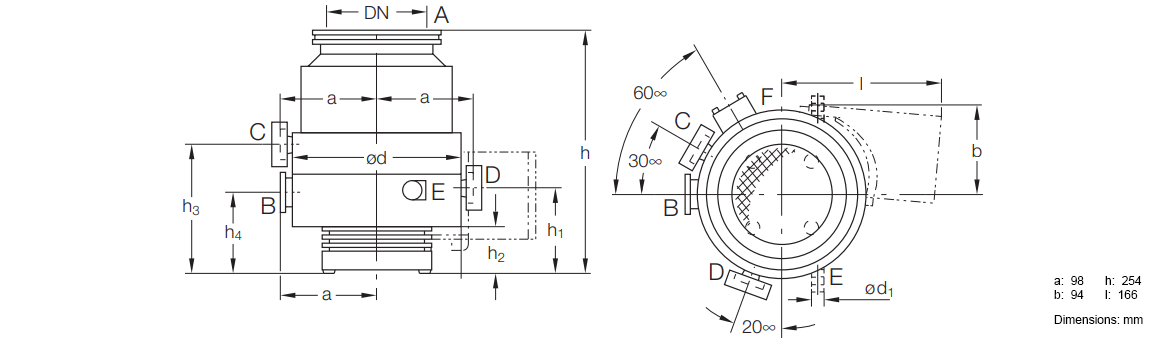

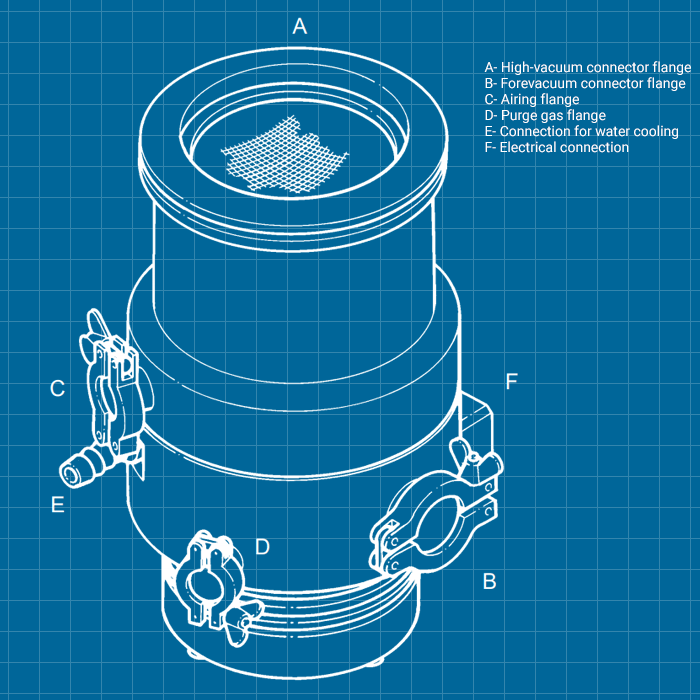

| Inlet flange | DN 100 ISO-K • 100 CF | DN 160 ISO-K • 160 CF |
| Pumping speed | ||
| N2 l/s | 345 | 400 |
| Ar l/s | 350 | - |
| He l/s | 340 | 380 |
| H2 l/s | 340 | 370 |
| Max. gas throughput | ||
| N2 mbar x l/s | 3.0 | |
| Ar mbar x l/s | 2.5 | |
| Compression ratio | ||
| N2 | 1 x 109 | |
| He | 6 x 104 | |
| H2 | 3 x 103 | |
| Ultimate pressure mbar (Torr) | < 1 x 10-10 (< 0.75 x 10-10) | |
| Ultimate partial pressure mbar | <10-10 | |
| Max. continuous inlet pressure mbar (Torr) | 5 x 10-2 (4 x 10-2) | |
| Max. foreline pressure for N2 mbar (Torr) | 5 x 10-1 (4 x 10-1) | |
| Foreline connection | KF25, ISO 63 | |
| Mounting position | Any | |
| Bearing type | Grease/ceramic ball bearing | |
| Corrosive version (C) | Yes | |
| Cooling | Standard: Water • Available: Air | |
| Recommended forevacuum pump | Standard: TRIVAC D 16 B • Corrosive: D 25 B | |
| Run-up time at 95% speed | 2 min | |
| Purge / vent port | DN 10 KF | |
| Cooling water connection (hose nozzles) | 10 mm (0.39 in) | |
| Weight | 12 kg (26 lbs) | |
| Max. power consumption / Ultimate pressure | 680 / 480 VA | |
| Frequency converter | TD 20, NT 20, NT 150/360 | |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold High Vacuum - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold TURBOVAC 361 Turbomolecular Vacuum Pump - NEW Part no. 85670 / 856 70 Pumping speed: 345 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 100 ISO-K Connecting flange fore-vacuum: DN 25 ISO-KF water-cooled Part no. 85671 / 856 71 Pumping speed: 345 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 100 CF Connecting flange fore-vacuum: DN 25 ISO-KF water-cooled Part no. 85672 / 856 72 Pumping speed: 345 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 160 ISO-K Connecting flange fore-vacuum: DN 25 ISO-KF water-cooled Part no. 85673 / 856 73 Pumping speed: 345 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 160 CF Connecting flange fore-vacuum: DN 25 ISO-KF water-cooled TURBOVAC 361 SCIEX; DN 100 ISO Part no. 85674 / 856 74 Pumping speed: 345 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 160 CF Connecting flange fore-vacuum: DN 25 ISO-KF water-cooled 361 C (corrosive) Part no. 85675 / 856 75 Pumping speed: 345 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 100 ISO-K Connecting flange fore-vacuum: DN 25 ISO-KF water-cooled 361 C (corrosive) Part no. 85677 / 856 77 Pumping speed: 345 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 160 ISO-K Connecting flange fore-vacuum: DN 25 ISO-KF water-cooled 361 C (corrosive) Part no. 11209 / 112 09 Pumping speed: 345 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 100 CF Connecting flange fore-vacuum: DN 25 ISO-KF water-cooled
