Leybold TURBOVAC 50 - NEW
Call for Price
| Weight | 4.4 lbs |
|---|---|
| Pumping Speed | 33 l/s |
| Ultimate Pressure | < 5 x 10-8 mbar |

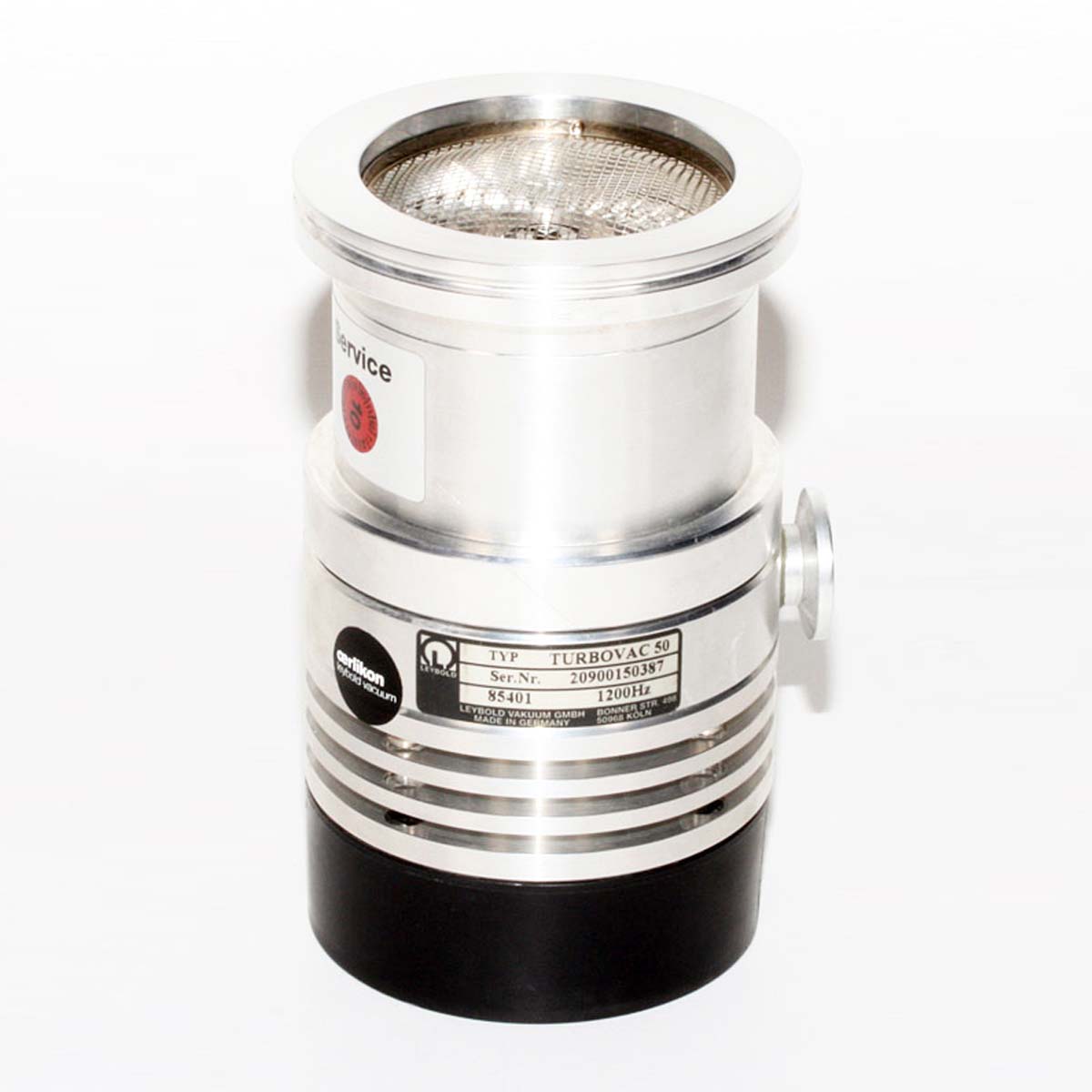

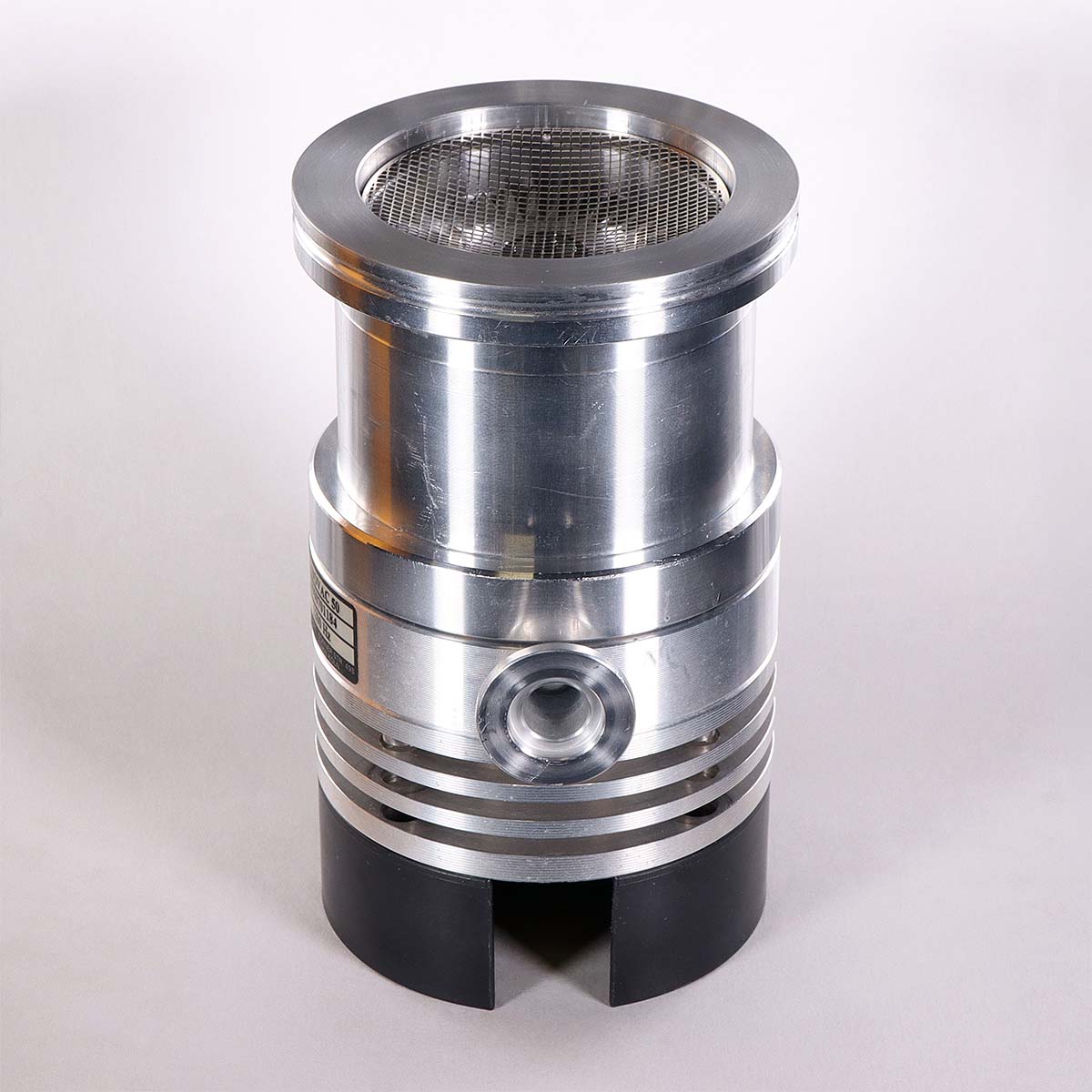

Leybold TURBOVAC 50 Turbomolecular Vacuum Pump - NEW
The TURBOVAC turbomolecular vacuum pumps with mechanical rotor suspension are used in the pressure range from 10-1 mbar (0.75 x 10-1 Torr) to 10-10 mbar (0.75 x 10-1 Torr). Pumping speeds for air vary from 35 l/s to 2,400 l/s. Because of its compact design, the most reliable ceramics ball bearings and the simplicity of operation, this line of pumps is used in all high vacuum and ultrahigh vacuum areas of application.
Typical Applications
- Leak detectors
- Mass spectrometers
- Electron beam microscopy
- TV tube manufacturing
- Load locks and transfer chambers
- High vacuum chambers
Technical Features
- Small footprint
- Installation in any orientation
- Cooling by convection is sufficient for most applications
- Air and water cooling can be added easily
- Oil-free pump for generating clean high and ultrahigh vacuum conditions
Advantages to the User
- Space-saving
- Easy to integrate into complex vacuum systems
- Low operating costs
- Highly reliable operation also in processes loaded with particles
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

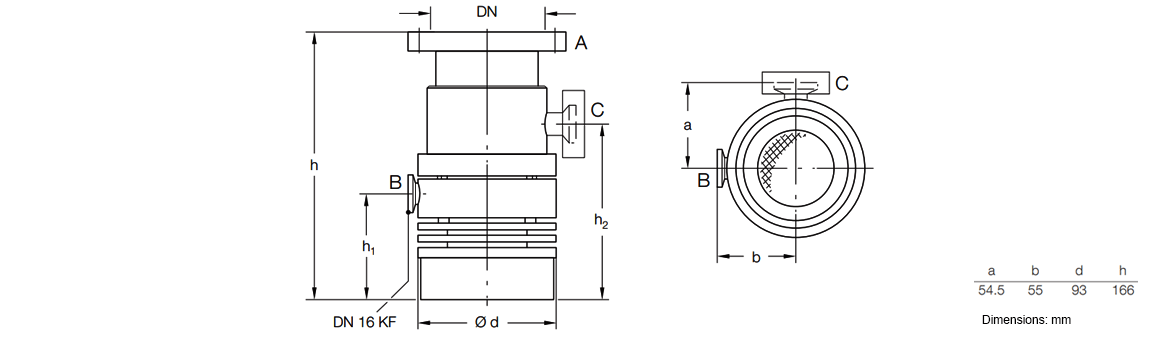

| Inlet flange | O-ring sealed DN 40 KF |
O-ring sealed DN 63 ISO-K |
| Pump housing | Aluminum | |
| Pumping speed at 10-3 mbar (0.75 x 10-3 Torr) | ||
| N2 l/s | 33 | 55 |
| He l/s | 36 | 48 |
| H2 l/s | 28 | 30 |
| Max. gas throughput at 10-2 mbar (0.75 x 10-2 Torr) | ||
| N2 mbar x l/s | 0.30 | 0.40 |
| He mbar x l/s | 0.25 | 0.35 |
| H2 mbar x l/s | 0.20 | 0.25 |
| Max. compression when idle | ||
| N2 | 2 x 106 | |
| Ultimate pressure mbar (Torr) | < 5 x 10-8 (< 3.75 x 10-8) | |
| Max. foreline pressure for N2 mbar (Torr) | 1 x 10-1 (< 0.75 x 10-1) | |
| Recommended forevacuum pump | TRIVAC D 2,5 E | |
| Run-up time to 95% of nominal speed | 2 min | |
| Weight | 2 kg (4.4 lbs) | |
| Max. power consumption | 45 VA | |
Specs Link
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold High Vacuum - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold TURBOVAC 50 Turbomolecular Vacuum Pump - NEW Part no. 85400 / 854 00 Pumping speed: 33 l/s (Nitrogen) Ultimate pressure: < 5 x 10-8 mbar Connecting flange high-vacuum: DN 40 ISO-KF Connecting flange fore-vacuum: DN 16 ISO-KF convection-cooled Part no. 85399 / 853 99 Pumping speed: 33 l/s (Nitrogen) Ultimate pressure: < 5 x 10-8 mbar Connecting flange high-vacuum: DN 40 CF Connecting flange fore-vacuum: DN 16 ISO-KF convection-cooled Part no. 85401 / 854 01 Pumping speed: 55 l/s (Nitrogen) Ultimate pressure: < 5 x 10-8 mbar Connecting flange high-vacuum: DN 63 ISO-K Connecting flange fore-vacuum: DN 16 ISO-KF convection-cooled Part no. 85402 / 854 02 Pumping speed: 55 l/s (Nitrogen) Ultimate pressure: < 5 x 10-8 mbar Connecting flange high-vacuum: DN 63 CF Connecting flange fore-vacuum: DN 16 ISO-KF convection-cooled
