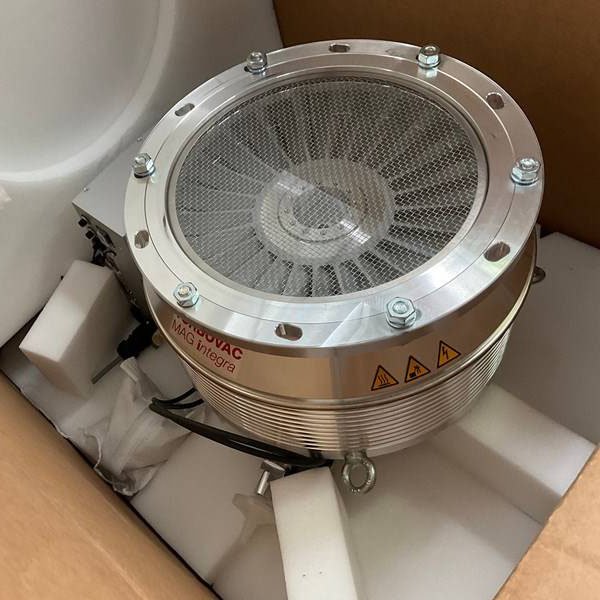

Leybold TURBOVAC MAG W 2200 iP - REBUILT
Call for Price
In stock
SKU
REBUILT_MAGW2200IP
| Weight | 110.20 lbs |
|---|---|
| Pumping Speed | 2100 l/s |
| Ultimate Pressure | 1 x 10-8 mbar |
Leybold Vacuum TURBOVAC MAG W 2200 iP Turbomolecular Pump - REBUILT
Accuracy, precision and reliability those are the features of these magnetically-levitated turbomolecular pumps. High pumping speed and gas throughput for faster pump down time improve equipment cycle times. With its fully integrated converter and power supply, conventional rack-mounted controller and interconnecting cables are no longer necessary.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| High-vacuum flange | DN 250 ISO-F / 250 CF |
| Pumping speed (PNEUROP) l/s | |
| N2 | 2,100 |
| Ar | 1,900 |
| He | 2,050 |
| H2 | 1,750 |
| Max. Compression | |
| N2 | > 108 |
| Ar | > 108 |
| He at 1 sccm | 5 x 104 |
| H2 at 1 sccm | 5 x 103 |
| Max. gas throughput mbar x I/s-1 | |
| N2 temporary, for pump down | 30 |
| N2 continuous operation | 17 |
| Ar temporary, for pump down | 20 |
| Ar continuous operation | 12 |
| Max. forevacuum pressure N2 / Ar | 2.5 mbar |
| Nominal speed | 30,600 min-1 rpm |
| Stand-by speed to be set between | 13,800 min-1 (230 Hz) and nominal speed |
| Ultimate pressure ISO-F / CF flange | < 10-8 mbar / < 10-10 mbar |
| Max. bake-out temperature | 80°C |
| Run-up time | < 10 min |
| Forevacuum flange | DN 40 KF |
| Purge gas / venting flange | DN 16 KF (clamp shoe) |
| Cooling connection | G 1/8” |
| Weight, approx. | 50 kg (110 lbs) |
| Noise level acc. to ISO 3744 | < 41 db(A) |
| Vibration level at high-vacuum flange at max. speed | < 0.01 µm |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold TURBOVAC MAG Integra Series - REBUILT | Operating Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold Vacuum TURBOVAC MAG W 2200 iP Turbomolecular Pump - REBUILT 412200V0504 MAG W 2200 iP DN 250 ISO 412200V2504 MAG W 2200 iP DN 250 ISO
