| VARODRY |
VD65 |
VD100 |
VD160 |
VD200 |
| Max. pumping speed |
65 m3h |
105 m3h |
150 m3h |
200 m3h |
Ultimate pressure w/out gas ballast
w/ gas ballast |
< 0.01 mbar
< 0.1 mbar |
| Max. permissible inlet pressure |
1,050 mbar |
| Max. permissible outlet pressure (rel. to ambient) |
200 mbar |
| Water vapor tolerance w/ gas ballast |
60 mbar |
| Water vapor capacity w/ gas ballast |
1.9 kg/h |
2.9 kg/h |
5.2 kg/h |
6.9 kg/h |
| Noise level (w/ built-in silencer) at ultimate pressure (50/60 Hz)** |
64/67 dB(A) |
65/69 dB(A) |
| Permissible ambient temperature |
0 to +40°C |
| Rated motor power |
1.5 kW |
2.2 kW |
3.0 kW |
4.0 kW |
| Protection class |
IP55 |
| Inlet / outlet connection |
G 2" (In) / G 1 1/2" (Out) |
| Weight, approx. |
90 kg |
100 kg |
130 kg
|
**According to DIN EN ISO 2151
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

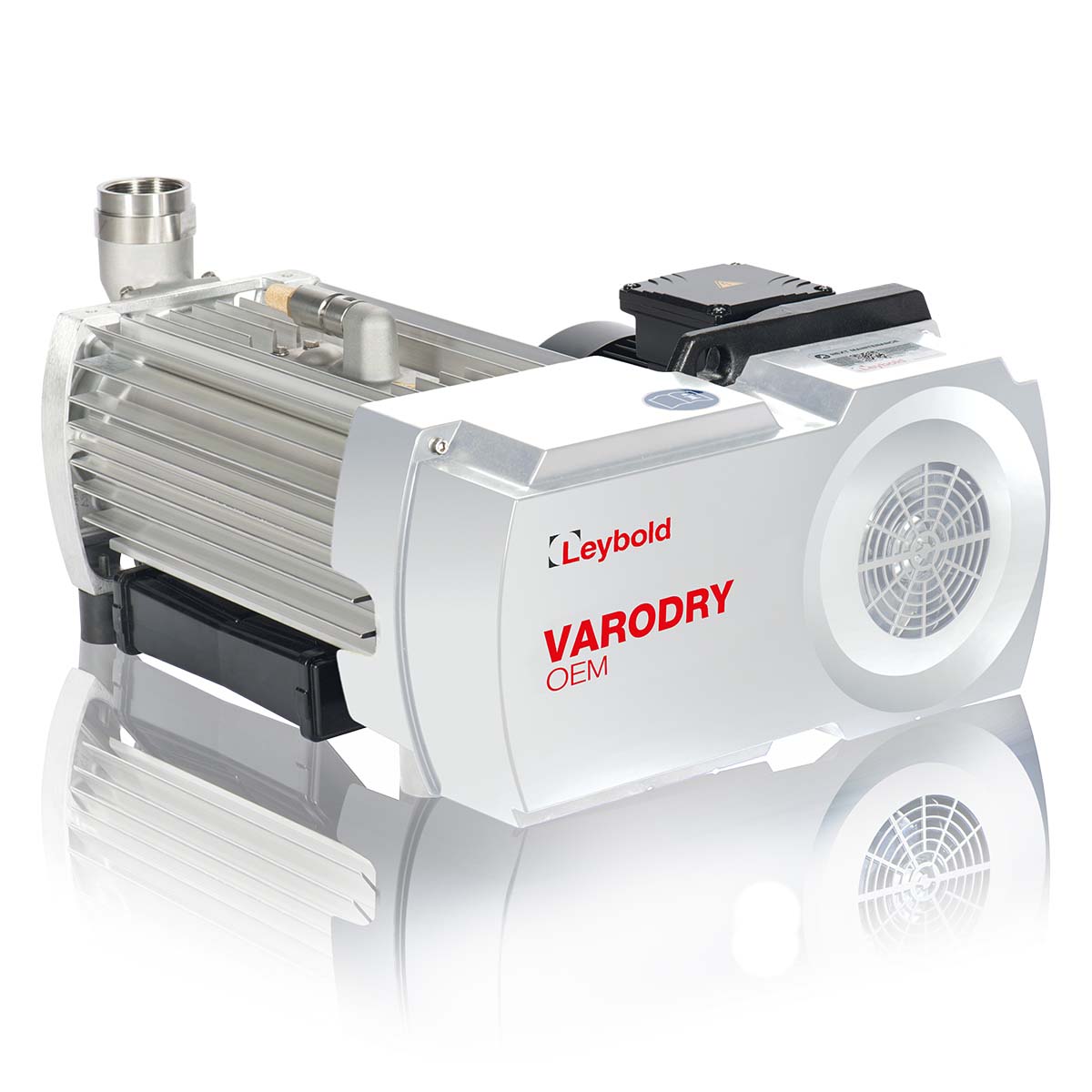

Leybold VARODRY VD65 Industrial Dry Vacuum Pump - NEW
111065V10 50Hz, 200/400V, +/- 10%, 3-phase
111065V15 50Hz, 200/400V, +/- 10%, 3-phase, w/ purge gas module
111065V11 60Hz, 230/460V, +/- 10%, 3-phase
111065V16 60Hz, 230/460V, +/- 10%, 3-phase, w/ purge gas module
111065V21 60Hz, 200/380V, +/- 10%, 3-phase
111065V26 60Hz, 200/380V, +/- 10%, 3-phase, w/ purge gas module
