Pfeiffer ATH 2804 M - NEW
Call for Price
| Weight | 216 lbs |
|---|---|
| Pumping Speed | 2,350 l/s |
| Ultimate Pressure | < 1 x 10-8 mbar |

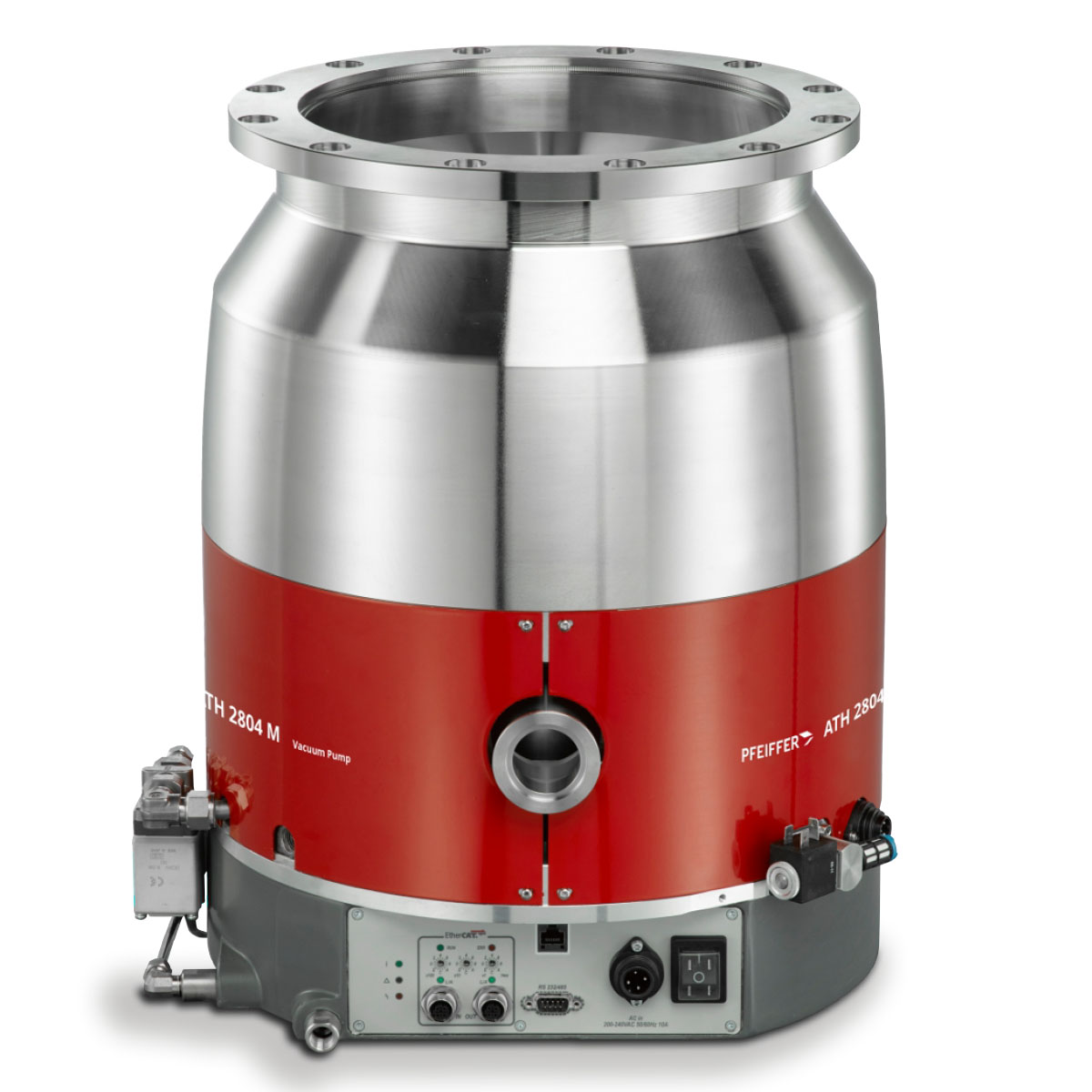

Pfeiffer ATH 2804 M Turbomolecular Vacuum Pump - NEW
Maintenance-free
No wearing parts thanks to magnetic bearing technology, reduced particle contamination or build-up of residue in MT version
Quiet
Low noise and vibration levels, perfectly suited for vibration-sensitive applications in semiconductor manufacturing processes and analytical instrumentation
Flexible
Compatible with a variety of backing pumps, MT version with integrated heating system for demanding chemical conditions, best-in-class cooling water consumption
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Pumping speed N2 | 2,350 l/s |
| Pumping speed Ar | 2,350 l/s |
| Pumping speed He | 2,300 l/s |
| Pumping speed H2 | 1,650 l/s |
| Compression ratio (ISO 5302) N2 | 1 x 109 l/s |
| Compression ratio (ISO 5302) Ar | 1 x 109 l/s |
| Compression ratio (ISO 5302) He | 9 x 104 l/s |
| Compression ratio (ISO 5302) H2 | 4.9 x 103 l/s |
| Ultimate pressure | < 1 x 10-8 mbar |
| Max. forevacuum N2 | 3.4 mbar |
| Max. forevacuum Ar | 4.4 mbar |
| Max. inlet vacuum N2 | 0.4 mbar |
| Max. inlet vacuum Ar | 0.03 mbar |
| Max. inlet vacuum He | > 1.0 mbar |
| Max. inlet vacuum H2 | > 1.0 mbar |
| Gas throughput at final rotational speed N2 | > 5,000 (cold) sccm |
| Gas throughput at final rotational speed Ar | > 2,500 (cold) sccm |
| Gas throughput at final rotational speed He | > 5,000 (cold) sccm |
| Gas throughput at final rotational speed H2 | > 5,000 (cold) sccm |
| Recommended purge flow rate | 50 sccm |
| Rotational speed | 25,000 rpm |
| Rotational speed variable | 15,000 rpm to nominal speed |
| Run-up time up to 90% of final rotational speed, with pressure exhaust < 0.1 mbar | < 8 min |
| Controller power supply | 200-240 V, 50/60 Hz Single-phase |
| Max. power consumption for start-up | 1,200 W |
| Nominal power (stand-by power) | 160 W |
| Max. baking temperature | 120°C |
| Recommended cooling water flow rate | 60 l/h |
| Cooling water temperature | 15-40°C |
| Remote controller type | Pump mounted controller (OBC) |
| Recommended backing pump | ADP/ADS |
| Sound pressure level (ISO 2151) 1m distance at nominal speed | < 45 dB(A) |
| Vibration level at nominal speed | < 0.01 μm |

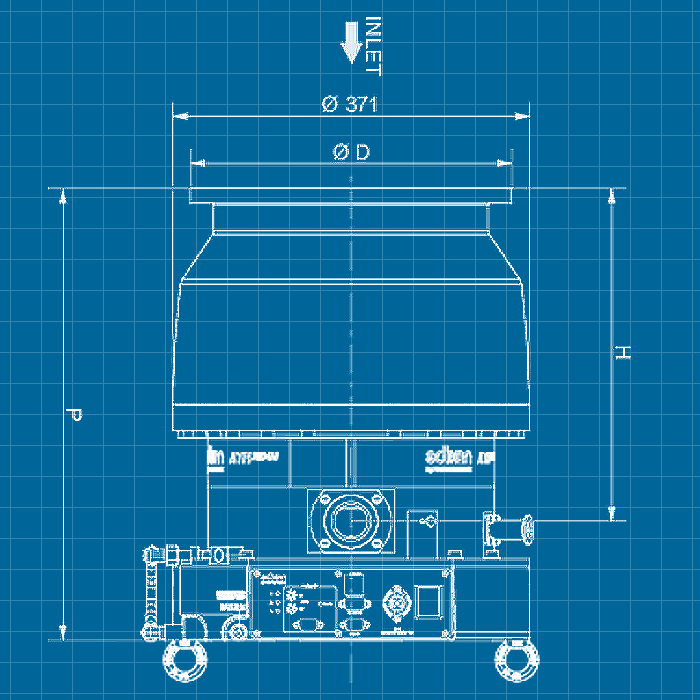

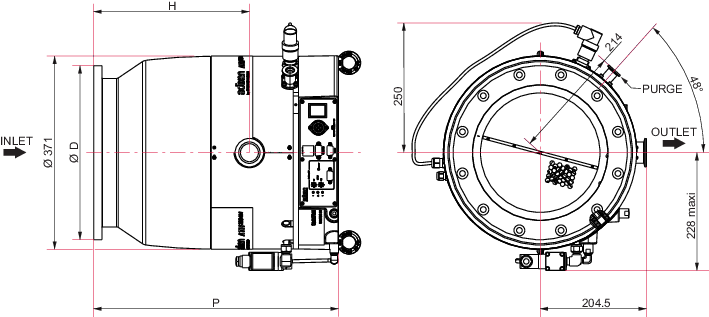

| Dimensions (Ø x H) | 371 x 471.3 mm |
| Weight approx. | 98 kg |
| Gas inlet / Gas outlet | DN 250 / DN 40 ISO-KF, DN 50 ISO-KF |
| N2 purge flange | DN 16 ISO-KF |
| Stainless steel inlet screen (factory setting) | Yes |
| Permissible magnetic field (radial value) at 10 cm | 5 mT |
| On-board control option | Profibus, Remote |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
