Pfeiffer ATH 4506 M - NEW
Call for Price
| Weight | 309 lbs |
|---|---|
| Pumping Speed | 4,500 l/s |
| Ultimate Pressure | 1.5 x 10-8 mbar |

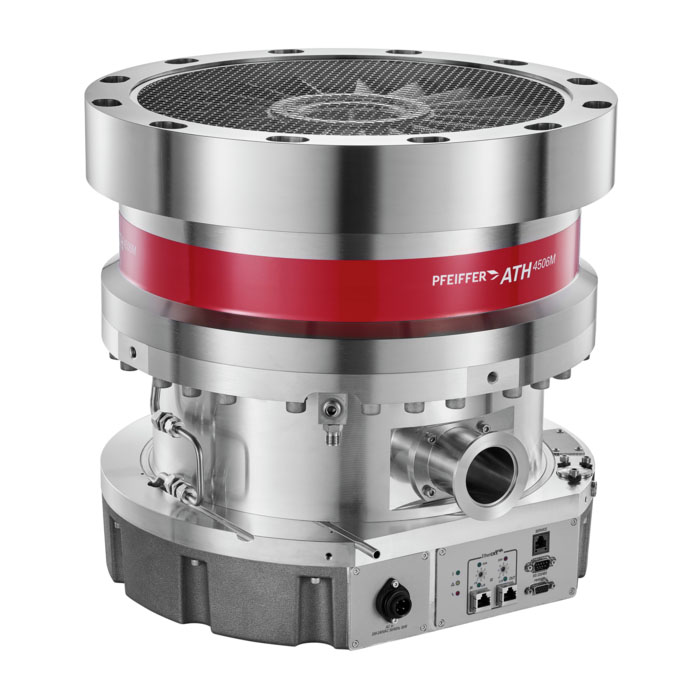

Pfeiffer ATH 4506 M Turbomolecular Vacuum Pump - NEW
Maintenance-free
No wearing parts thanks to magnetic bearing technology, reduced particle contamination or build-up of residue in MT version
Quiet
Low noise and vibration levels, perfectly suited for vibration-sensitive applications in semiconductor manufacturing processes and analytical instrumentation
Flexible
Compatible with a variety of backing pumps, MT version with integrated heating system for demanding chemical conditions, best-in-class cooling water consumption
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Pumping speed N2 | 4,500 l/s |
| Pumping speed Ar | 4,370 l/s |
| Pumping speed He | 3,900 l/s |
| Pumping speed H2 | 3,700 l/s |
| Ultimate pressure | < 1 x 10-8 mbar |
| Max. forevacuum N2 | 3.5 mbar |
| Max. forevacuum Ar | 3.5 mbar |
| Max. inlet vacuum N2 | 0.5 mbar |
| Max. inlet vacuum Ar | 0.22 mbar |
| Gas throughput at final rotational speed N2 | 6,550 sccm |
| Gas throughput at final rotational speed Ar | 3,500 sccm |
| Recommended purge flow rate | 0-100 sccm |
| Rotational speed | 23,500 rpm |
| Rotational speed variable | 15,000 rpm to nominal speed |
| Run-up time up to 90% of final rotational speed, with pressure exhaust < 0.1 mbar | < 9 min |
| Controller power supply | 230/440/480 VAC |
| Max. power consumption for start-up | 2,000 W |
| Nominal power (stand-by power) | 220 W |
| Max. current consumption | 14 A |
| Max. heating temperature | - |
| Recommended cooling water flow rate | 60-180 l/h |
| Cooling water temperature | 15-35°C |
| Remote controller type | Pump mounted controller (OBC) |
| Dimensions (Ø x H) | 450 x 422 mm |
| Weight approx. | 140 kg |
| Gas inlet | VG350, VG400, VF350 |
| Gas outlet | DN 40 ISO-K, DN 50 ISO |
| On-board control option | Remote, EtherCAT |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Pfeiffer ATH 4506 M Turbomolecular Vacuum Pump - NEW TMEFADA4015A ATH 4506 M 350 VG non-heated Remote
-
