Pfeiffer ATP 2300 M - NEW
Call for Price
In stock
SKU
NEW_ATP2300M
| Weight | 115 lbs |
|---|---|
| Pumping Speed | 1,450 - 1,950 l/s |
| Ultimate Pressure | < 4 x 10-9 mbar |
Pfeiffer ATP 2300 M Turbomolecular Vacuum Pump - NEW
Quiet
Low noise and vibration levels, perfectly suited for vibration-sensitive applications in semiconductor manufacturing processes and analytical instrumentation
Flexible
Compatible with a variety of backing pumps, excellent compression ratio for light gases
Maintenance-free
No wearing parts thanks to magnetic bearing technology, long maintenance intervals
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Pumping speed N2 | 1,450 - 1,950 l/s |
| Pumping speed Ar | 1,400 - 1,900 l/s |
| Pumping speed He | 1,700 - 2,050 l/s |
| Pumping speed H2 | 1,600 - 1,700 l/s |
| Compression ratio (ISO 5302) N2 | > 1 x 108 l/s |
| Compression ratio (ISO 5302) Ar | > 1 x 108 l/s |
| Compression ratio (ISO 5302) He | > 1 x 105 l/s |
| Compression ratio (ISO 5302) H2 | > 7 x 103 l/s |
| Ultimate pressure | < 4 x 10-9 mbar |
| Max. forevacuum N2 | 2.1 mbar |
| Max. forevacuum Ar | 1.7 mbar |
| Max. forevacuum He | 1.5 mbar |
| Max. forevacuum H2 | 1.9 mbar |
| Max. inlet vacuum N2 | 0.04 mbar |
| Max. inlet vacuum Ar | 0.011 mbar |
| Max. inlet vacuum He | 0.2 mbar |
| Max. inlet vacuum H2 | 0.7 mbar |
| Gas throughput at final rotational speed N2 | 2,200 sccm |
| Gas throughput at final rotational speed Ar | 900 sccm |
| Gas throughput at final rotational speed He | > 3,000 sccm |
| Gas throughput at final rotational speed H2 | > 3,000 sccm |
| Recommended purge flow rate | 50 sccm |
| Rotational speed | 31,000 rpm |
| Rotational speed variable | 15,000 rpm to nominal speed |
| Run-up time up to 90% of final rotational speed, with pressure exhaust < 0.1 mbar | < 8 min |
| Controller power supply | 200-240 V, 50/60 Hz Single-phase |
| Max. power consumption for start-up | 1,000 W |
| Nominal power (stand-by power) | 130 W |
| Max. baking temperature | 120°C |
| Recommended cooling water flow rate | 60 l/h |
| Cooling water temperature | 15-40°C |
| Remote controller type | Magpower |
| Recommended backing pump | ADP/ADS |
| Sound pressure level (ISO 2151) 1m distance at nominal speed | < 46 dB(A) |
| Vibration level at nominal speed | < 0.01 μm |

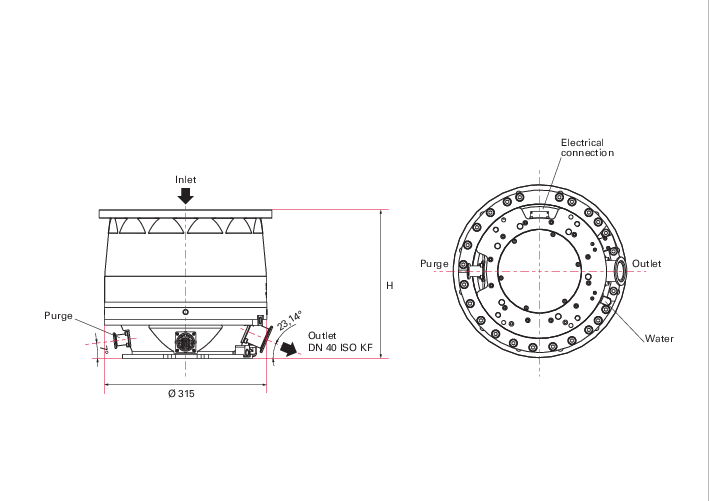

| Dimensions (Ø x H) | 315 x 278* mm (* depending on flange variant) |
| Weight approx. | 52 kg |
| Controller weight approx. | 8.7 kg |
| Gas inlet / Gas outlet | DN 200, DN 250 / DN 40 ISO-KF |
| N₂ purge flange | DN 16 ISO-KF |
| Stainless steel inlet screen (factory setting) | Yes |
| Permissible magnetic field (radial value) at 10 cm | < 12 mT |
| On-board control option | Profibus, Remote |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Pfeiffer ATP 2300 M Turbomolecular Vacuum Pump - NEW
Related Products
-

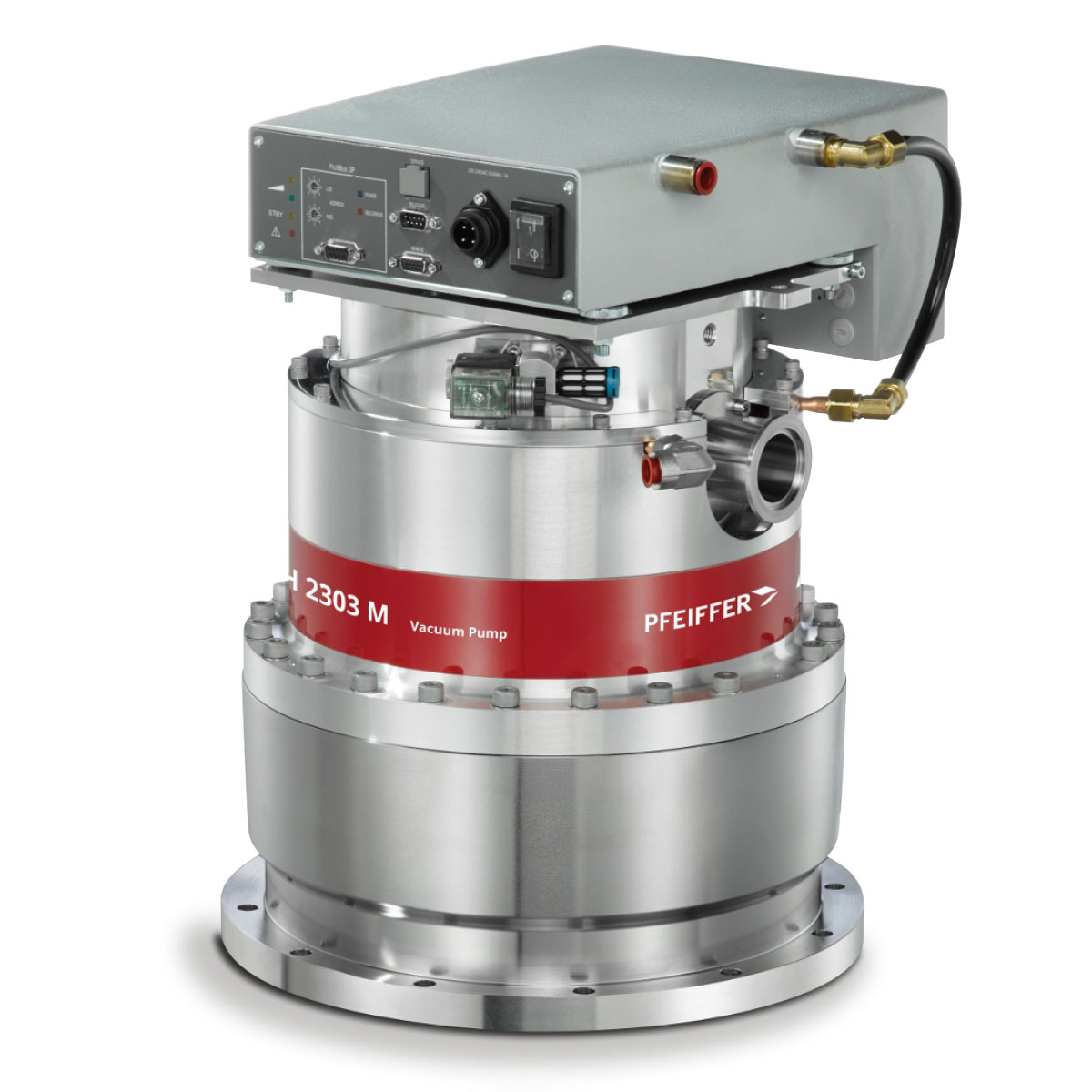

Pfeiffer ATH 2300 MT - NEWCall for Price
-

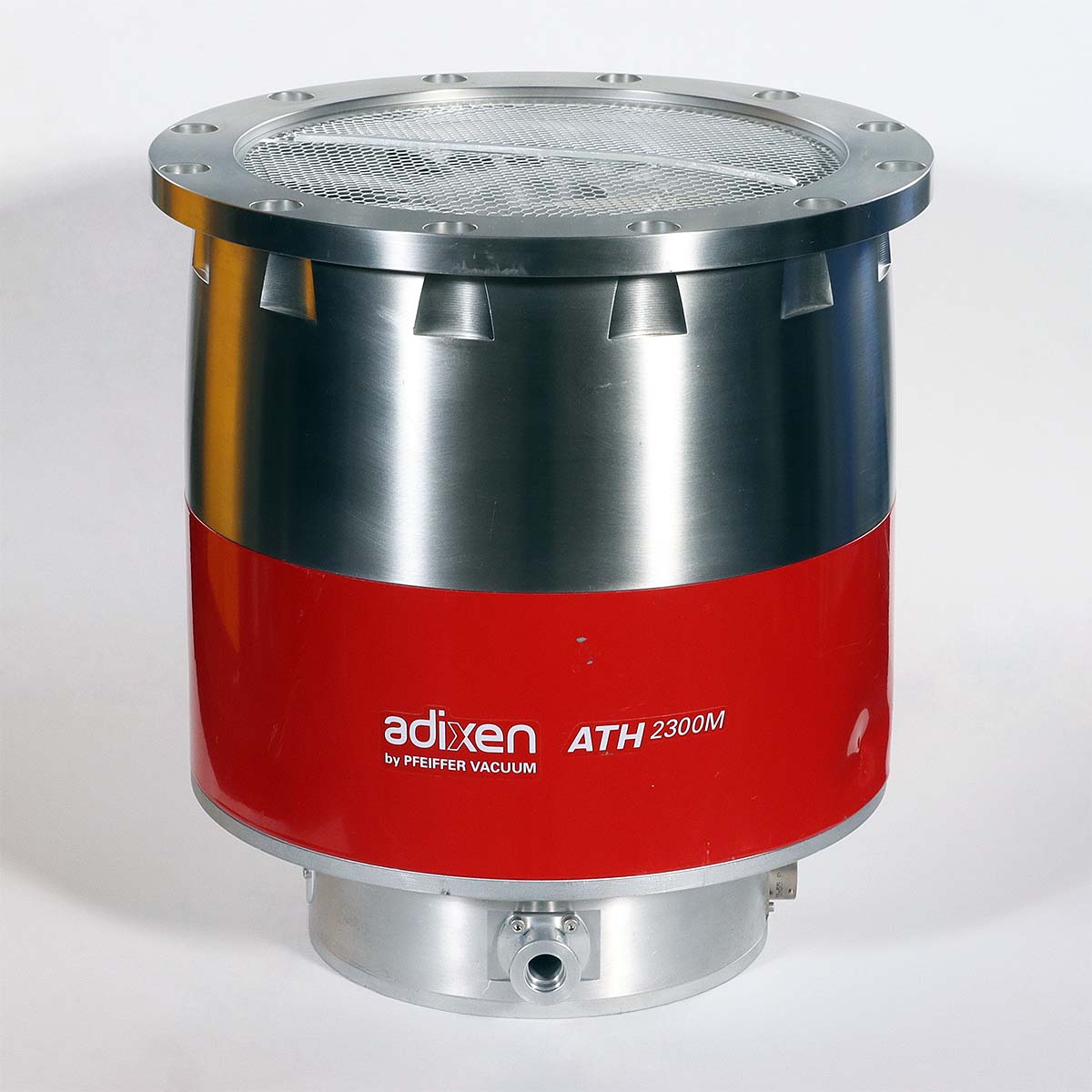

Adixen ATH 2300M - REBUILTCall for Price
-
