Pfeiffer DCU 100 - REBUILT

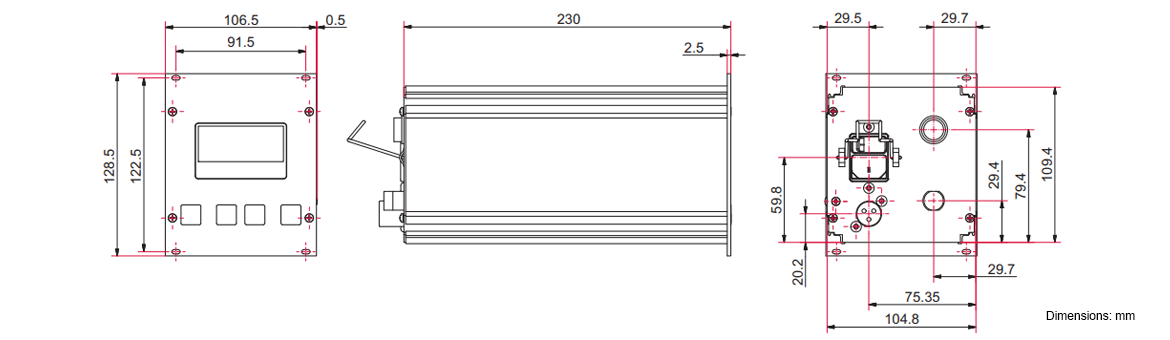

Height
128.5 mm
Width
106.3 mm
Length
234 mm
Weight
3.55 lbs
Pfeiffer Vacuum DCU 100 Turbomolecular Pump Controller
The Display Control Unit DCU is an operating unit for Pfeiffer drive units. It enables control over all the main parameters of the unit. Additionally, the connection of a vacuum gauge is possible.
DCU 001 = Basic unit without mains power unit
DCU 100 / 150 / 200 / 300 / 600 = Unit with mains power unit
Questions? send an email to our sales team!
Specifications
DCU 001
DCU 100
DCU 150
DCU 200
DCU 300
DCU 600
Connection voltage
12 - 30 V DC
90 - 132, 185 - 265 V AC
Frequency
-
50/60 Hz
Max. power consumption
≤ 5 VA
≤ 125 VA
≤ 170 VA
≤ 230 VA
≤ 350 VA
590 / 900 VA
Output voltage X2
-
24 VDC
48 VDC
72 VDC
140 VDC
Max. output current X2
-
4.1 / 4.6 A
5 / 6.2 A
4.1 / 4.6 A
3.2 / 4.2 A
3.8 / 5.8 A
Max. output power X2
-
100 / 110 W
120 / 150 W
200 / 220 W
230 / 300 W
530 / 812 W
Permissable ambient temperature
5 - 40°C
Max. relative humidity
5 - 85%
Air pressure
86 - 106 kPa
Protection type
IP 20
Weight
0.4 kg
1.6 kg
1.9 kg
2.2 kg
2.6 kg
Specifications
Type
Label
Description
Download
Pfeiffer DCU 001, 100, 150, 200, 300, 600 - REBUILT
Operating Instructions
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Pfeiffer Vacuum DCU 100 Turbomolecular Pump Controller
PM C01 694 C / PMC01694C
