Pfeiffer HiPace 30 Neo - NEW

Name: Pfeiffer HiPace 30 Neo - NEW
Brand: Pfeiffer
SKU: NEW_HiPace30Neo

Be the first to review this product

Call for Price

In stock

SKU

NEW_HiPace30Neo

Request For Quote

Weight	3.53 lbs
Pumping Speed	22 l/s
Ultimate Pressure	1 x 10^-7 mbar

Description

Pfeiffer Vacuum HiPace 30 Neo Turbomolecular Pump - NEW

Features include:

Small yet powerful turbo pump with a pumping speed of up to 32 l/s for N2
Highest compression in this pumping speed class
Simple integration into small analytical systems
Low weight, ideal for portable applications
Long maintenance intervals for a long life cycle
For installation in any orientation
TC 80 integrated electronic drive unit
Extensive accessories expand the range of applications

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

I/O interfaces	RS485, remote
Sound pressure level (EN ISO 2151)	≤ 48 dB(A)
Protection class	IP54 type 12
Run-up time	65 s
Ultimate pressure	1 x 10^-7 hPa(mbar)
Pumping speed for Ar	31 l/s
Pumping speed for H₂	24 l/s
Pumping speed for He	30 l/s
Pumping speed for N₂	32 l/s
Gas throughput at full rotational speed, short term, for Ar	3 hPa x l/s
Gas throughput at full rotational speed, short term, for H₂	20 hPa x l/s
Gas throughput at full rotational speed, short term, for He	12.5 hPa x l/s
Gas throughput at full rotational speed, short term, for N₂	7.5 hPa x l/s
Input voltage(s)	24 V DC (±10%)
Compression ratio for Ar	1 x 10¹¹
Compression ratio for H₂	1 x 10⁴
Compression ratio for He	2 x 10⁵
Compression ratio for N₂	1 x 10¹¹
Forevacuum max. for N₂	20 hPa (mbar)
Bearing	Hybrid
Rotational speed ±2 %	90,000 min^-1
Rotational speed variable	50 – 100%
Mounting orientation	Arbitrary

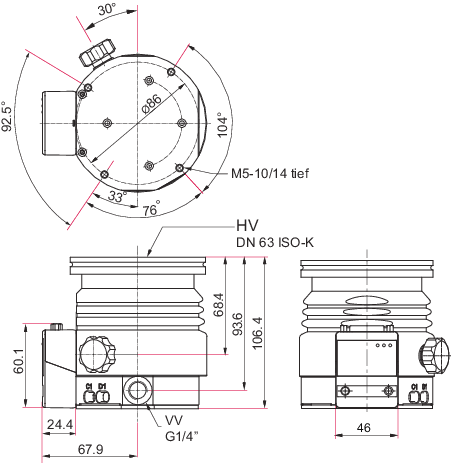

Dimensions (Ø x H)	86 x 106.4 mm
Weight	1.5 kg
Gas inlet / outlet	DN40/DN 63 ISO-K/ISO-KF/CF-F / G 1/4"/DN16/DN25

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Pfeiffer Vacuum HiPace 30 Neo Turbomolecular Pump - NEW

                               (BUSCH P/N)
PMP09026610 / PM P090 266 10 / 2000104289  HiPace 30 Neo  TC 80, DN 40 ISO-KF
PMP09031610 / PM P090 316 10 / 2000104290  HiPace 30 Neo  TC 80, DN 63 CF-F
PMP09030110 / PM P090 301 10 / 2000126154  HiPace 30 Neo  TC 80, DN 63 ISO-K, DN 16
PMP09030610 / PM P090 306 10 / 2000013634  HiPace 30 Neo  TC 80, DN 63 ISO-K, G 1/4"
