Pfeiffer HiScroll 18 - NEW

Name: Pfeiffer HiScroll 18 - NEW
Brand: Pfeiffer
SKU: NEW_HISCROLL18

Be the first to review this product

Call for Price

In stock

SKU

NEW_HISCROLL18

Request For Quote

Weight	51 lbs
Pumping Speed	18.1 m³/h
Ultimate Pressure	0.006 mbar

Description

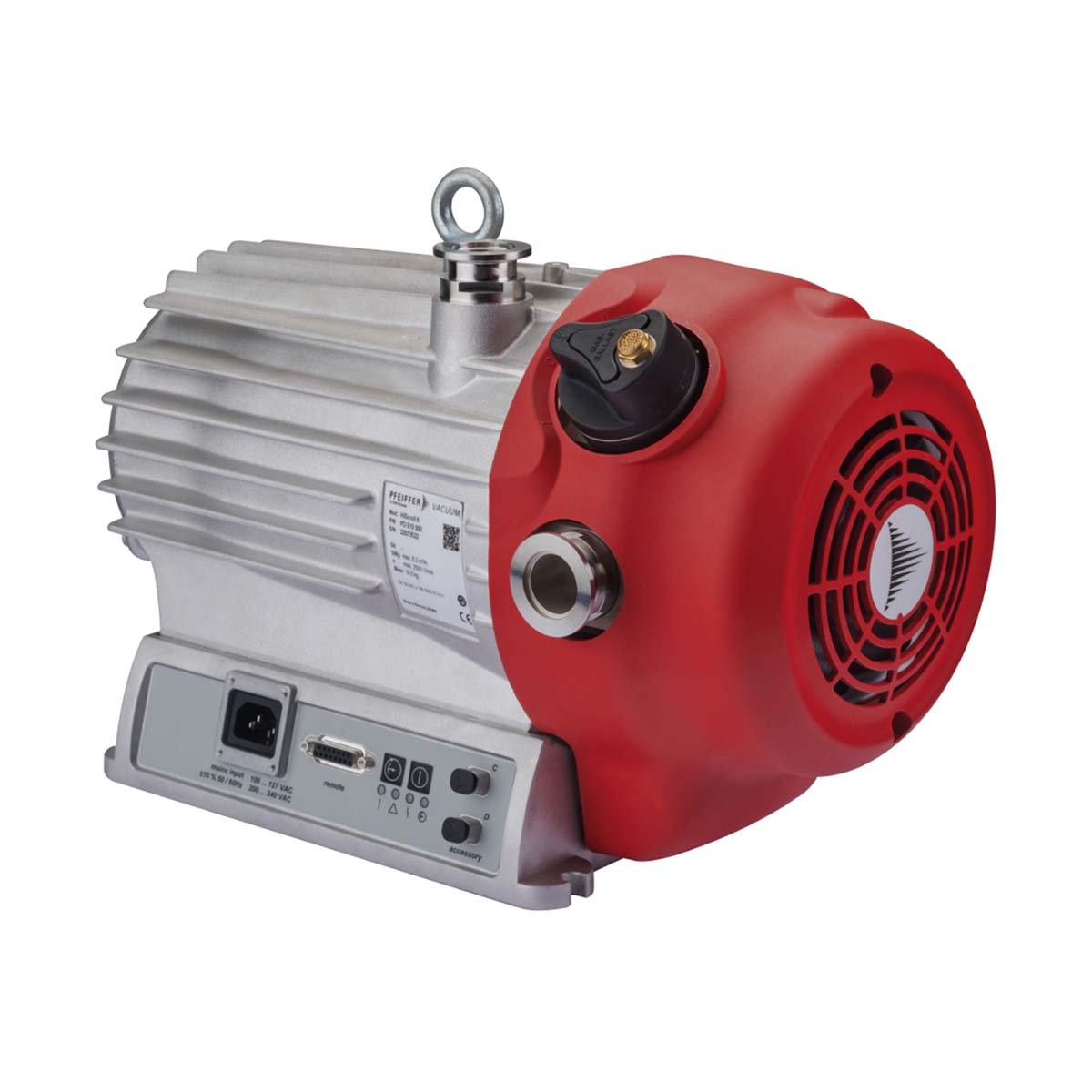

Pfeiffer HiScroll 18 Dry Scroll Vacuum Pump - NEW

HiScroll vacuum pumps are the compact, hermetically sealed, and powerful solution for your applications. Their scroll technology offers dry compression, high performance, and energy-efficient operation.

With their ultra-low noise and vibration levels, these vacuum pumps are ideal for analytical, industrial, and scientific applications in the medium vacuum range down to 10^-3 hPa (mbar).

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Pumping speed	18.1 m³/h
Pumping speed in boost mode	21.5 m³/h
Ultimate pressure (gas-ballast valve closed)	0.006 hPa (mbar)
Ultimate pressure (gas-ballast valve open stage 1)	0.05 hPa (mbar)
Ultimate pressure (gas-ballast valve open stage 2)	0.4 hPa (mbar)
Power consumption at ultimate pressure	235 W
Power consumption at standby speed	100 W
Motor speed	624 - 1,870 min^-1
Nominal motor speed	1,560 min^-1
Sound pressure level (ISO 3744) accuracy grade 2	47 dB(A)
Weight approx.	23 kg

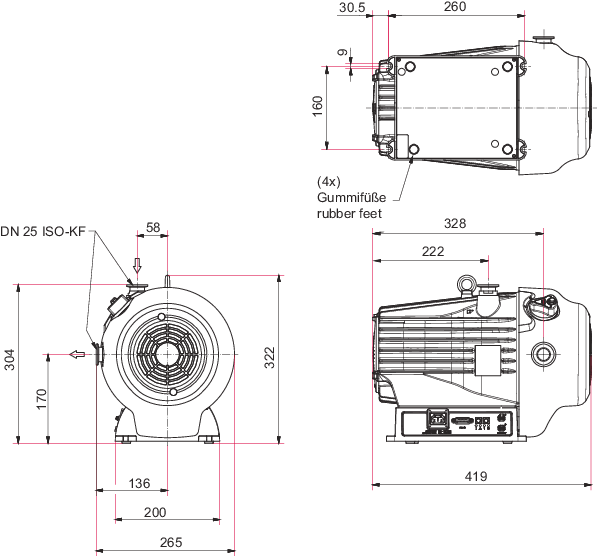

Dimensions (L x W x H)	419 x 265 x 304 mm
Gas inlet / outlet	DN 25 ISO-KF / DN 25 ISO-KF

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Pfeiffer HiScroll 18 Dry Scroll Vacuum Pump - NEW

PDS30000 / PD S30 000 / 2000026588 (BUSCH part #)  HiScroll 18  standard, including ATEX
PDS30010 / PD S30 010 / 2000026597 (BUSCH part #)  HiScroll 18  including pressure sensor
PDS30011 / PD S30 011 / 2000026600 (BUSCH part #)  HiScroll 18  w/ pressure sensor, w/out gas ballast
PDS30012 / PD S30 012 / 2000026601 (BUSCH part #)  HiScroll 18  w/ pressure sensor & automated gas ballast
PDS31000 / PD S31 000 / 2000223067 (BUSCH part #)  HiScroll 18  standard, including ATEX, C version
PDS30001 / PD S30 001 / 2000026591 (BUSCH part #)  HiScroll 18  w/out gas ballast, including ATEX
PDS30002 / PD S30 002 / 2000026592 (BUSCH part #)  HiScroll 18  w/ automated gas ballast
PDS30200 / PD S30 200 / 2000201715 (BUSCH part #)  HiScroll 18  three-phase motor, including ATEX
PDS30201 / PD S30 201 / 2000201716 (BUSCH part #)  HiScroll 18  three-phase motor, w/out gas ballast, including ATEX
