Pfeiffer HiScroll 6 - NEW
Call for Price
In stock
SKU
NEW_HISCROLL6
| Weight | 42 lbs |
|---|---|
| Pumping Speed | 6.1 m3/h |
| Ultimate Pressure | 0.015 mbar |
Pfeiffer HiScroll 6 Dry Scroll Vacuum Pump - NEW
HiScroll vacuum pumps are the compact, hermetically sealed, and powerful solution for your applications. Their scroll technology offers dry compression, high performance, and energy-efficient operation.
With their ultra-low noise and vibration levels, these vacuum pumps are ideal for analytical, industrial, and scientific applications in the medium vacuum range down to 10-3 hPa (mbar).
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Pumping speed | 6.1 m3/h |
| Pumping speed in boost mode | 7.2 m3/h |
| Ultimate pressure (gas-ballast valve closed) | 0.015 hPa (mbar) |
| Ultimate pressure (gas-ballast valve open stage 1) | 0.07 hPa (mbar) |
| Ultimate pressure (gas-ballast valve open stage 2) | 0.4 hPa (mbar) |
| Power consumption at ultimate pressure | 165 W |
| Power consumption at standby speed | 80 W |
| Motor speed | 1,000 - 3,000 min-1 |
| Nominal motor speed | 2,500 min-1 |
| Sound pressure level (ISO 3744) accuracy grade 2 | 48 dB(A) |
| Weight approx. | 19 kg |

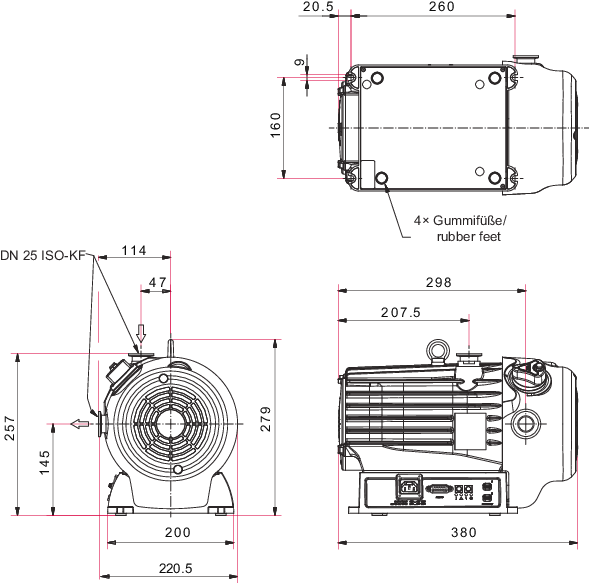

| Dimensions (L x W x H) | 380 x 220 x 257 mm |
| Gas inlet / outlet | DN 25 ISO-KF / DN 25 ISO-KF |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Pfeiffer HiScroll 6 Dry Scroll Vacuum Pump - NEW PDS10010 / PD S10 010 HiScroll 6 including pressure sensor PDS10011 / PD S10 011 HiScroll 6 w/ pressure sensor, w/out gas ballast PDS10012 / PD S10 012 HiScroll 6 w/ pressure sensor & automated gas ballast PDS11000 / PD S11 000 HiScroll 6 standard, including ATEX, C version PDS10001 / PD S10 001 HiScroll 6 w/out gas ballast, including ATEX PDS10002 / PD S10 002 HiScroll 6 w/ automated gas ballast
Related Products
-
Pfeiffer HiScroll 12 - NEWCall for Price
-

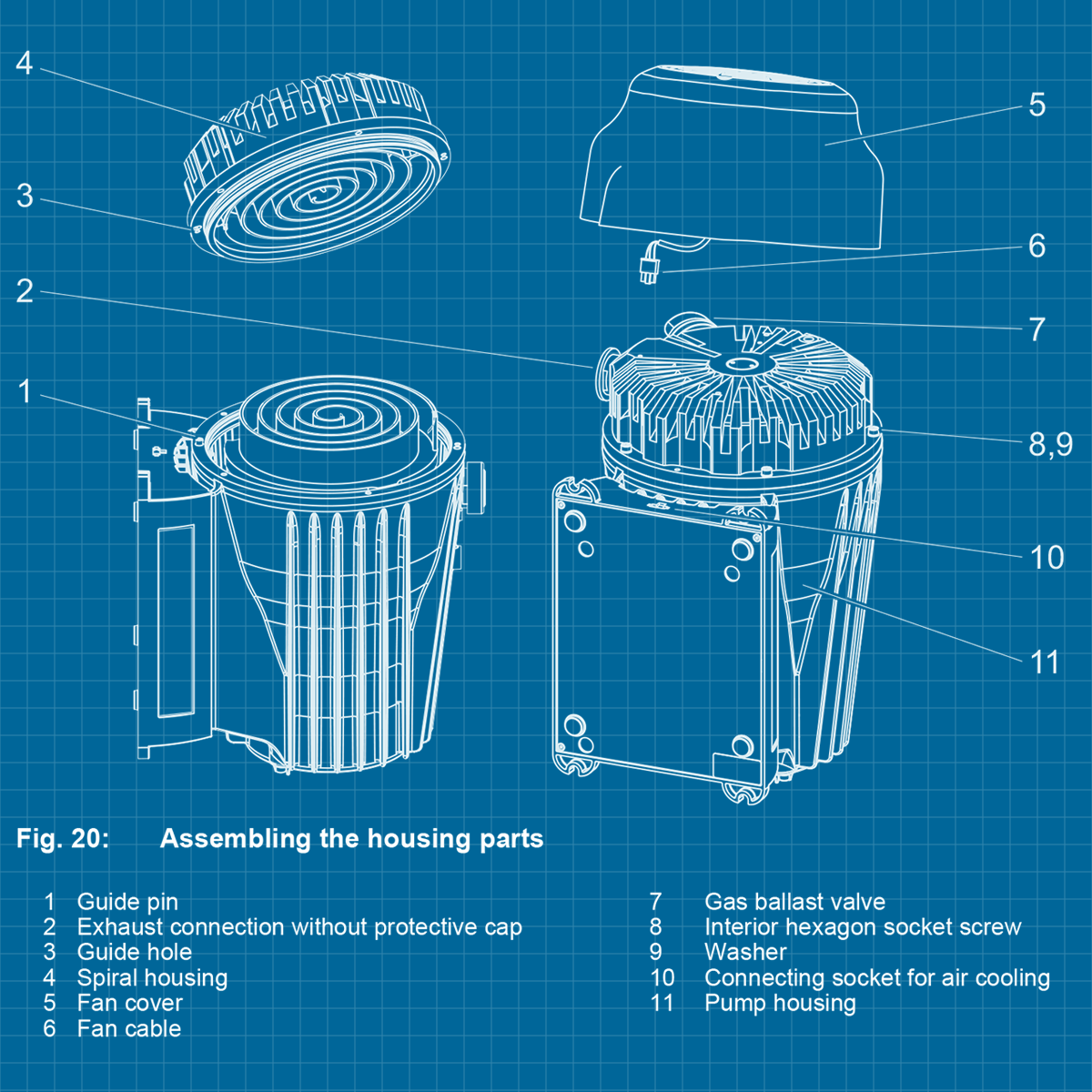

Pfeiffer HiScroll 6 - SERVICECall for Price
