Pfeiffer TPS - REBUILT
Call for Price

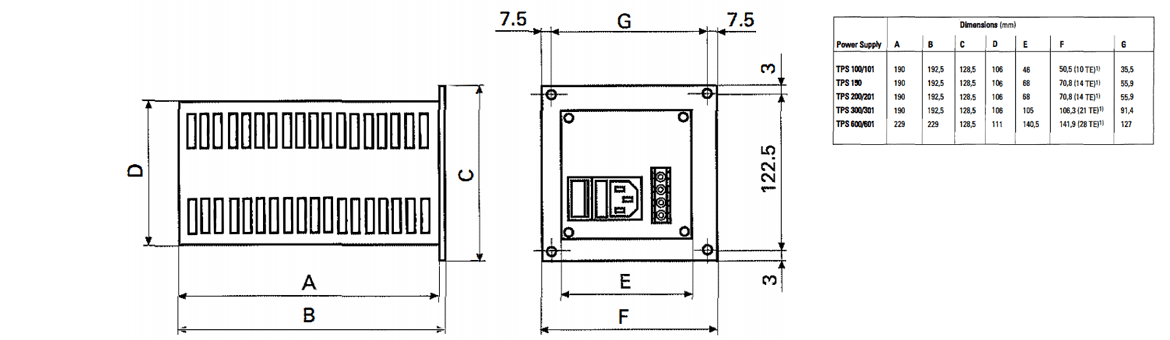

| Height | 122.5 mm |
|---|---|
| Width | |
| Length | 192.5 mm |
| Weight | 3.86 lbs |
Pfeiffer Vacuum TPS Turbomolecular Pump Controllers - Rebuilt
Turbo Power Supply (TPS). Power supplies for wall and standard-rail mounting. Simple integration and Plug and Play-ready. Performance ideally matched to the respective pump model. Satisfies international standards. Mains pack for wall/standard rail fitting.
Turbo Power Supply (TPS). Power supply in the form of a 3HU 19" rack module with front panel; for installation directly in 19" rack systems. Performance ideally matched to the respective HiPace pump model. Plug and Play-ready. Satisfies international standards. Mains pack 19" rack module 3HU with front panel.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Specifications | TPS 110 | TPS 111 | TPS 180 | TPS 181 | TPS 310 | TPS 311 | TPS 400 | TPS 401 |
|---|---|---|---|---|---|---|---|---|
| Ambient temperature | 5-50°C / 41-122°F / 278-323 K | |||||||
| Mains requirement: Frequency (range) | 50/60 Hz | |||||||
| Mains requirement: power consumption | 130 VA | 210 VA | 340 VA | 450 VA | ||||
| Mains requirement: Voltage (range) | 115-230 (-20-+15%) VAC | |||||||
| Output current | 4.6 A | 7.5 A | 12.5 A | 8.4 A | ||||
| Output voltage | 24 (±2%) VDC | 48 (±2%) VDC | ||||||
| Power consumption max. | 130 VA | 210 VA | 340 VA | 450 VA | ||||
| Power supply | TPS 110 | TPS 111 | TPS 180 | TPS 181 | TPS 310 | TPS 311 | TPS 400 | TPS 401 |
| Protection category | IP 20 | |||||||
| Weight | 0.7 kg / 1.54 lb | 1 kg / 2.2 lb | 1.1 kg / 2.43 lb | 1.75 kg / 3.86 lb | ||||
| Type | Label | Description | Download |
|---|---|---|---|
|
Pfeiffer TPS 100 - 601 - REBUILT | Operating Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Pfeiffer Vacuum TPS Turbomolecular Pump Controllers - Rebuilt
PM061340-T / PM 061 340 -T TPS 110 wall/rail fitting PM061344-T / PM 061 344 -T TPS 111 19" rack module PM061341-T / PM 061 341 -T TPS 180 wall/rail fitting PM061345-T / PM 061 345 -T TPS 181 19" rack module PM061342-T / PM 061 342 -T TPS 310 wall/rail fitting PM061346-T / PM 061 346 -T TPS 311 19" rack module PM061343-T / PM 061 343 -T TPS 400 wall/rail fitting PM061347-T / PM 061 347 -T TPS 401 19" rack module PM041827-T / PM 041 827-T TPS 100 wall/runner fitting PM041828-T / PM 041 828-T TPS 101 19" rack module PM051461-T / PM 051 461-T TPS 150 wall/runner fitting PM041813-T / PM 041 813-T TPS 200 wall/runner fitting PM041819-T / PM 041 819-T TPS 201 19" rack module PM041814-T / PM 041 814-T TPS 300 wall/runner fitting PM041814-AT/ PM 041 814-AT TPS 300 wall/runner fitting PM041820-T / PM 041 820-T TPS 301 19" rack module PM041815-T / PM 041 815-T TPS 600 wall/runner fitting PM041821-T / PM 041 821-T TPS 601 19" rack module PM041821-AT/ PM 041 821-AT TPS 601 19" rack module
