ROOTS 615 RGS - REBUILT
$8,470
In stock
SKU
REBUILT_615RGS
| Weight | 847 lbs |
|---|---|
| Motor Power | 10 hp |
| Pumping Speed | 1,300 cfm |
ROOTS 615 RGS Mechanical Vacuum Blower - REBUILT
ROOTS 6" mechanical booster pumps provide high throughput for industrial and arduous chemical applications.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Specifications | Horizontal flow | Vertical flow |
|---|---|---|
| Displacement | ||
| V belt (2,750 rpm) | 3,375 m3h-1 / 2,000 ft3min-1 | |
| Direct drive (1,800 rpm) | 2,210 m3h-1 / 1,300 ft3min-1 | |
| Direct drive (3,000 rpm) | 3,685 m3h-1 / 2,170 ft3min-1 | |
| Direct drive (3,600 rpm) | 4,420 m3h-1 / 2,600 ft3min-1 | |
| Inlet / outlet flanges | 8” ASA / ANSI | |
| Motor power EU / Asia | 11 kW | |
| Motor power US TEFC | 10 hp | |
| Cooling method | Air cooled | |
| Oil capacity | 1.9 liter / 0.51 gal | 4.1 liter / 1.1 gal |
| Max pressure differential | 506 mbar / 380 Torr | |
| Max temp rise | 135°C / 275°F | |
| Max discharge temp | 191°C / 375°F | |
| Weight bare shaft | 234 kg / 515 lbs | |
| Weight TEFC direct drive | 390 kg / 860 lbs | |
| Recommended oil | V-Lube H | |
| Type | Label | Description | Download |
|---|---|---|---|
|
ROOTS 615 RGS - REBUILT | Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
ROOTS 615 RGS Mechanical Vacuum Blower - REBUILT
Related Products
-

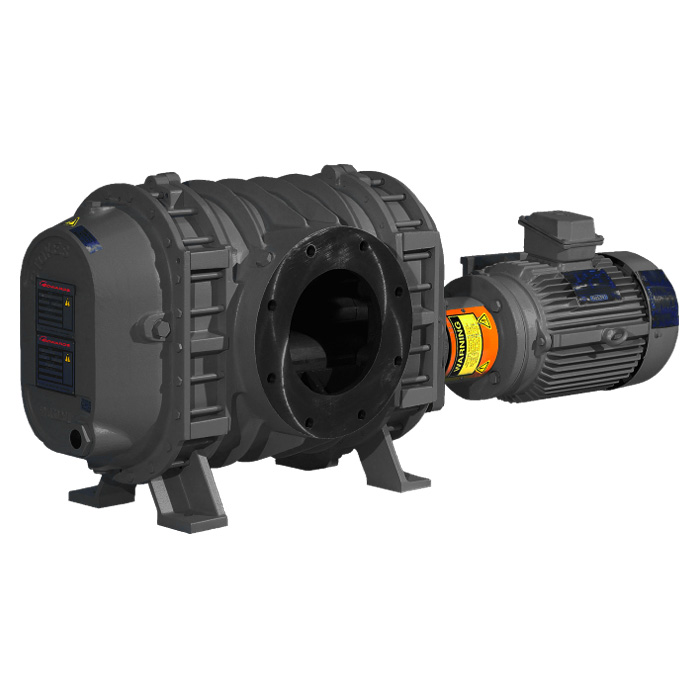

Edwards Stokes 615 Booster - NEWCall for Price
-

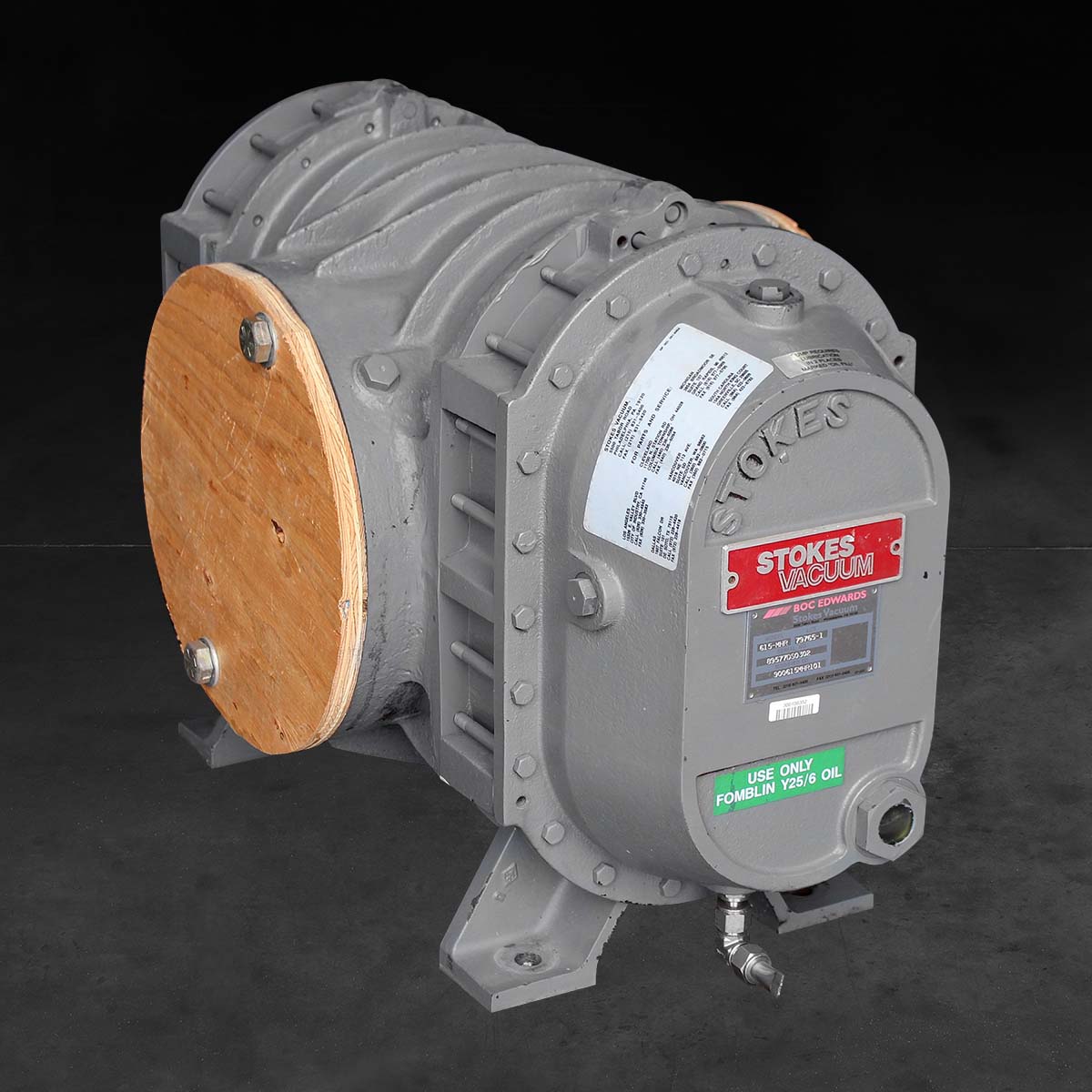

Edwards Stokes 615 - REBUILTCall for Price
-

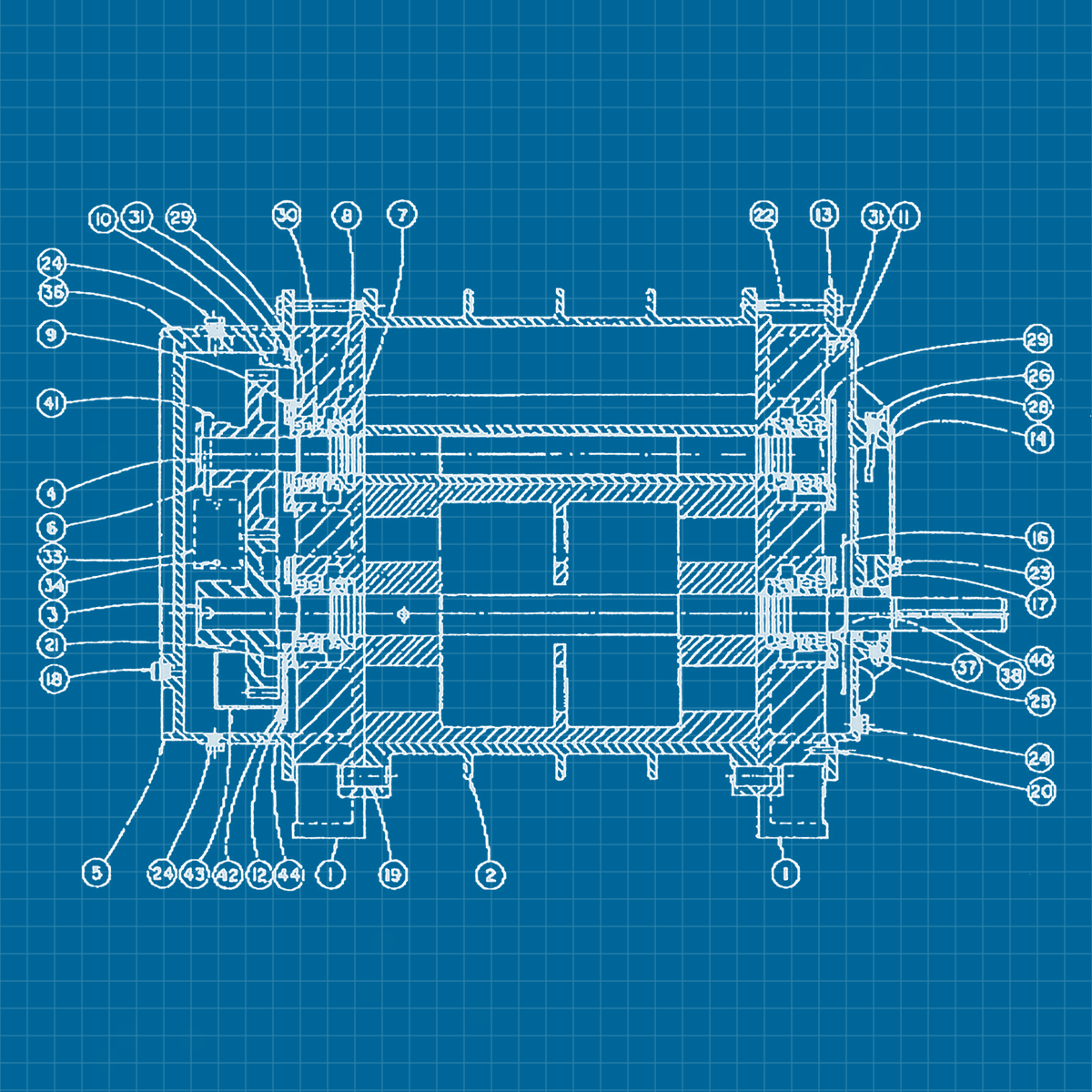

ROOTS 615 RGS - SERVICECall for Price
