Shimadzu TMP-3003LM - REBUILT

Name: Shimadzu TMP-3003LM - REBUILT
Brand: Shimadzu
SKU: REBUILT_TMP3003LM

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_TMP3003LM

Request For Quote

Weight	75 lbs

Description

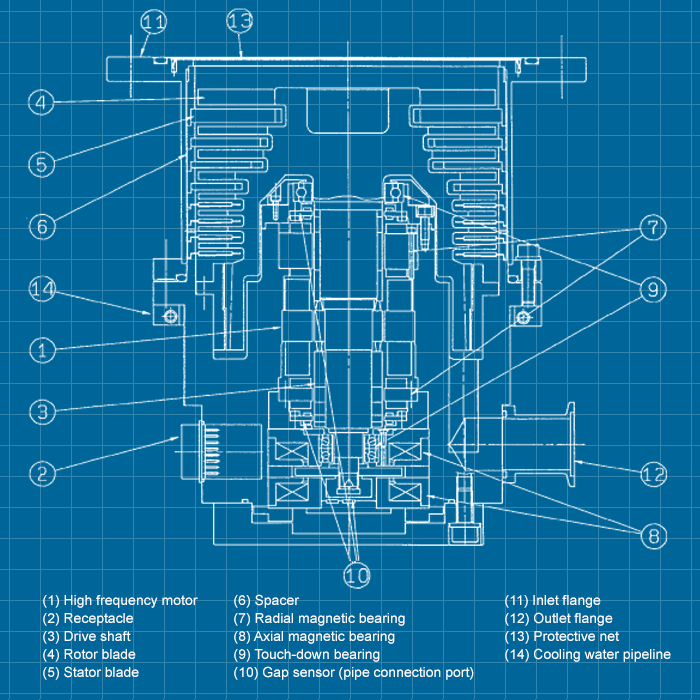

Shimadzu TMP-3003LM Turbomolecular Vacuum Pump - REBUILT

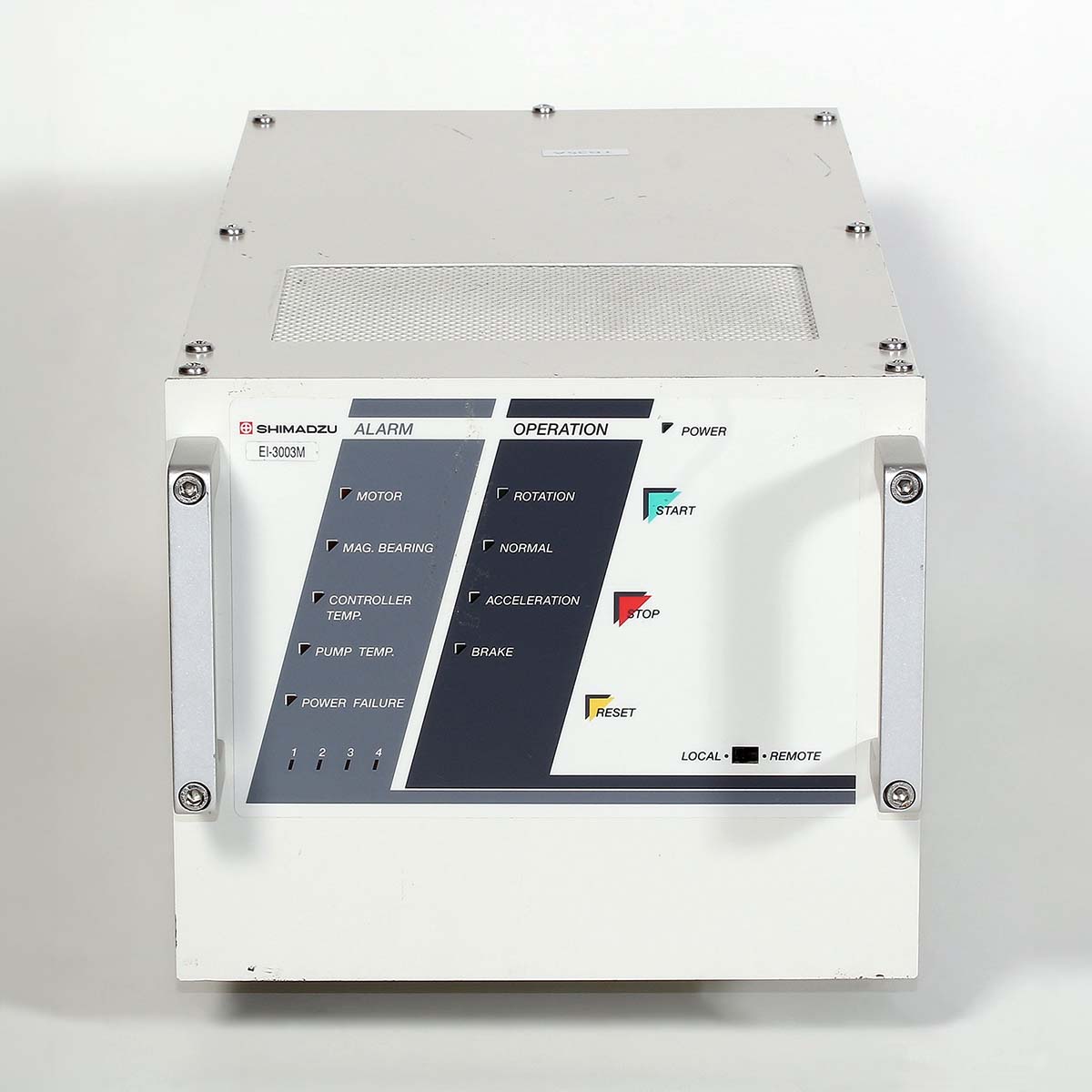

This Shimadzu TMP-3003LM high pumping throughput molecular pump includes a controller and cable, and a one year warranty. View our inventory of Shimadzu turbo pumps.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Turbo molecular pump		TMP-303LM	TMP-303LMC	TMP-303M	TMP-303MC
Inlet flange		VG100 / ICF152 / ISO100B / ISO100C
Outlet flange		KF25
Cooling method		Water		Cooling fan
Ultimate pressure (after baking) (Note1)		10^-8 Pa order	10^-7 Pa order	10^-8 Pa order	10^-7 Pa order
Maximum allowable inlet pressure (N₂ continuous exhaust)		200 Pa		1.3 Pa
Maximum allowable outlet pressure		400 Pa		40 Pa
Pumping speed (Note 2)	N₂	320 l/s
	He	340 l/s
	H₂	320 l/s
Compression ratio	N₂	1 x 10⁹
	He	8 x 10⁴
	H₂	1 x 10⁴
Rated speed		45000 rpm
Start-up time		5 minutes or less
Mounting position		In any desired direction
Bake-out temperature at an inlet flange		120 degrees C. or less
Vibration level (by Shimadzu's method)		0.012 µm or less (0-peak)
Recommended flow rate of purge gas		20 to 30 mL/min (Note 3)
Recommended pumping speed of backing pump in case of gas purge		200 L/min or more
Environmental Temperatures		0 to 40 degrees C.
Admissible ambient magnetic field	Radial direction	3 mT
Admissible ambient magnetic field	Axial direction	15 mT
Water	Flow rate	1 to 3 L/min		-
	Pressure	0.2 to 0.5 MPa
	Temperature	5 to 30 degrees C.
Mass		14 kg

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Shimadzu TMP-3003LM Turbomolecular Vacuum Pump - REBUILT
