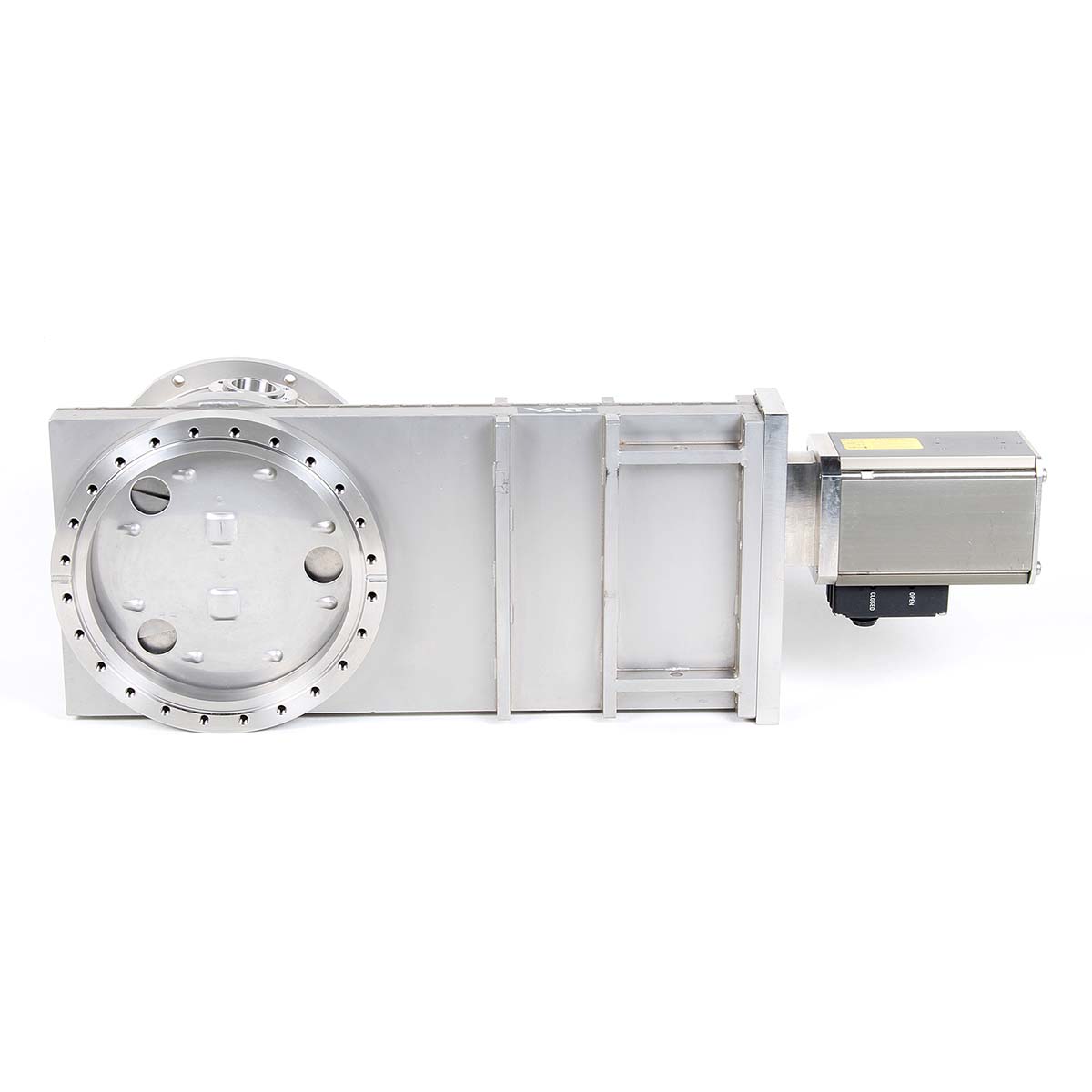

VAT 10846-UE24 Series 108 DN 200 10" OD CF UHV Vacuum Gate Valve
The standard valve for UHV isolation applications in research and industry.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inside diameter (ID) in mm | DN 200 |
| Flange | CF-F fixed flange UNF threads (compatible with ISO 3669) |
| Body material | Stainless steel |
| Actuator | Pneumatic actuator with position indicator without solenoid valve double acting |
| Solenoid | No |
| Position indicator | Yes |
| Pressure min. | 1 x 10-10 mbar |
| Pressure max. | 1.6 bar (abs) |
| Feedthrough | Bellows |
| Sealing technology | VATLOCK-System |
| Sealhead description | Metal |
| Sealing materials | FKM (VITON®) |
| Molecular flow conductance l/s | 12,200 |
| Max. differential pressure closed position in bar | 1.6 |
| Max. pressure on seat side during opening in bar | 0.03 |
| Compressed air pressure max. in bar | 7 |
| Compressed air pressure min. in bar | 4 |
| Volume of air cylinder in l | 0.25 |
| Closing or opening time in sec. | 2 |
| Valve body temperature max. in °C | 250 |
| Actuator temperature max. in °C | 200 |
| Position Indicator temp. max. in °C | 80 |
| Weight in kg / lbs | 24 / 52.91 |
| Type | Label | Description | Download |
|---|---|---|---|
|
VAT Series 108 - REBUILT | Installation, Operating & Maintenance Instructions | Download |
