VAT 12048-PA24 ISO-250 - REBUILT
Call for Price
In stock
SKU
REBUILT_12048-PA24
VAT 12048-PA24 Series 120 DN ISO-250 Vacuum Gate Valves are getting scarce so we recommend the replacement model the VAT 12148-PA24 valve.
Well suited as shut-off device for pumps. Key features are easy and fast maintenance and virtually shock-free locking.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inside diameter (ID) in mm | DN 250 |
| Flange | ISO-F (compatible with ISO 1609) |
| Body material | Aluminum |
| Actuator | Pneumatic actuator with position indicator without solenoid valve double acting |
| Solenoid | No |
| Position indicator | Yes |
| Pressure min. | 1 x 10-7 mbar |
| Pressure max. | 1.2 bar (abs) |
| Feedthrough | Shaft feedthrough |
| Sealing technology | VATLOCK-System |
| Sealhead description | FKM (VITON®) |
| Sealing materials | FKM (VITON®) |
| Molecular flow conductance l/s | 22,000 |
| Max. differential pressure closed position in bar | 1.2 |
| Max. pressure on seat side during opening in bar | 0.03 |
| Compressed air pressure max. in bar | 7 |
| Compressed air pressure min. in bar | 4 |
| Volume of air cylinder in l | 1.5 |
| Closing or opening time in sec. | 5 |
| Valve body temperature max. in °C | 120 |
| Actuator temperature max. in °C | 80 |
| Position Indicator temp. max. in °C | 80 |
| Weight in kg / lbs | 25 / 55.12 |
| Type | Label | Description | Download |
|---|---|---|---|
|
VAT Series 121 - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
VAT Fabrication No. 12048-PA24 Series 120 DN ISO-250 Vacuum Gate Valve
Related Products
-

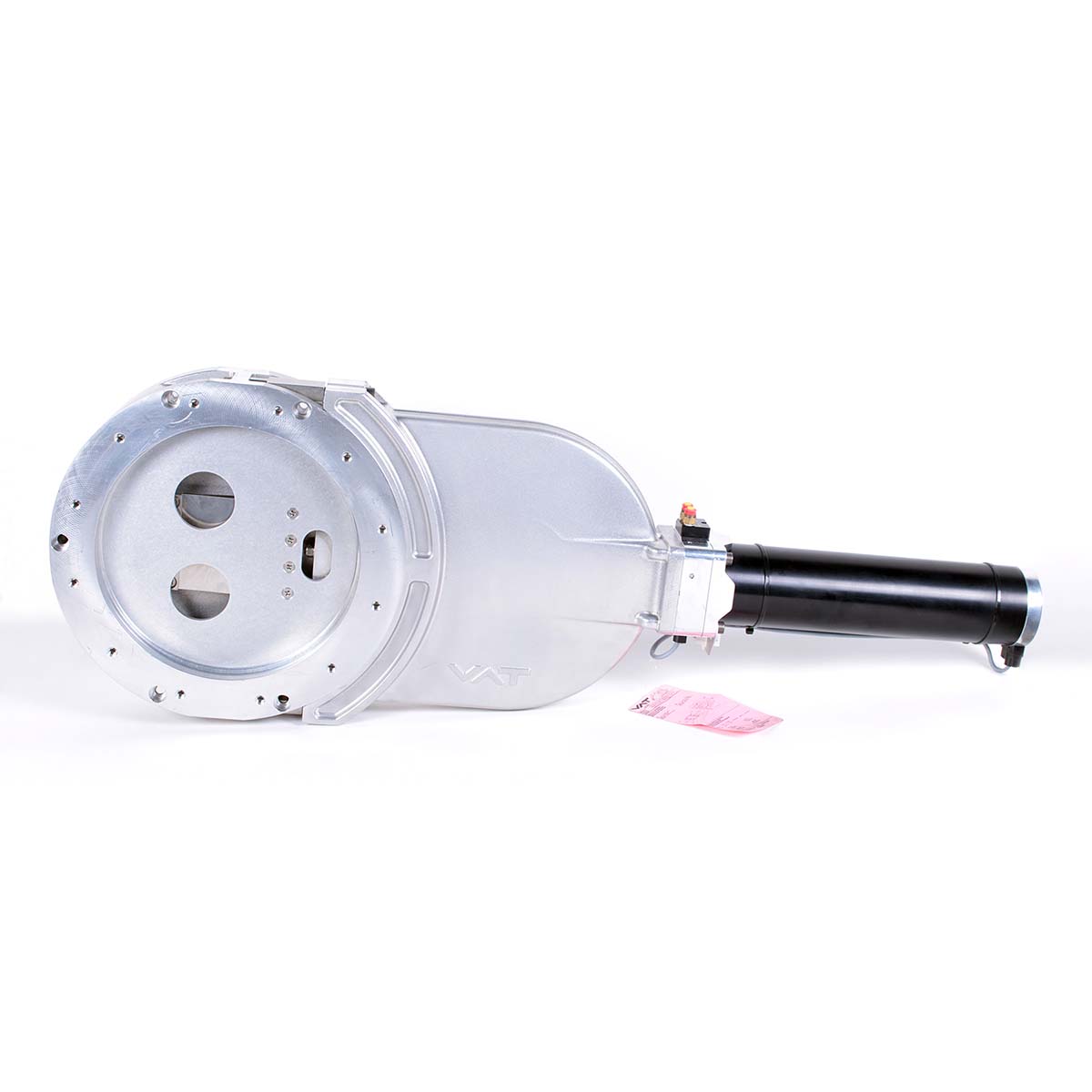

VAT 12148-PA24 ISO-250 - REBUILTCall for Price
-

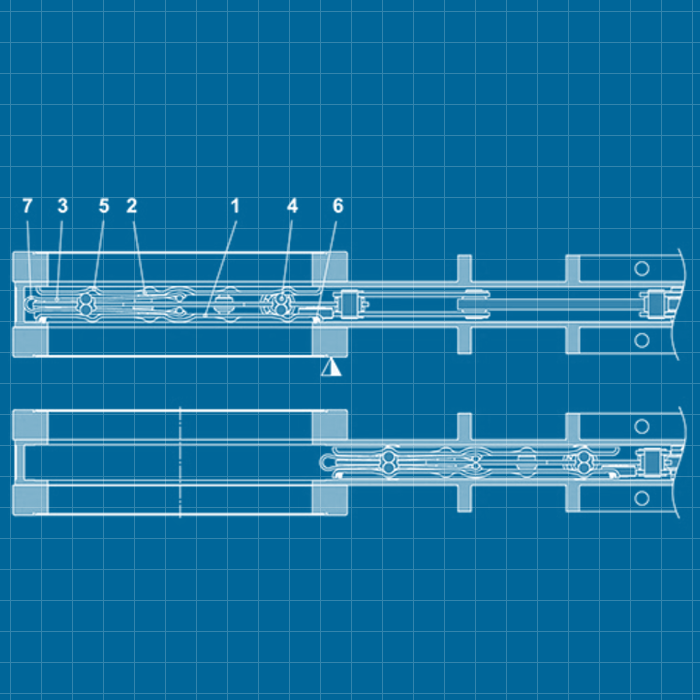

VAT Gate Valves - SERVICECall for Price
