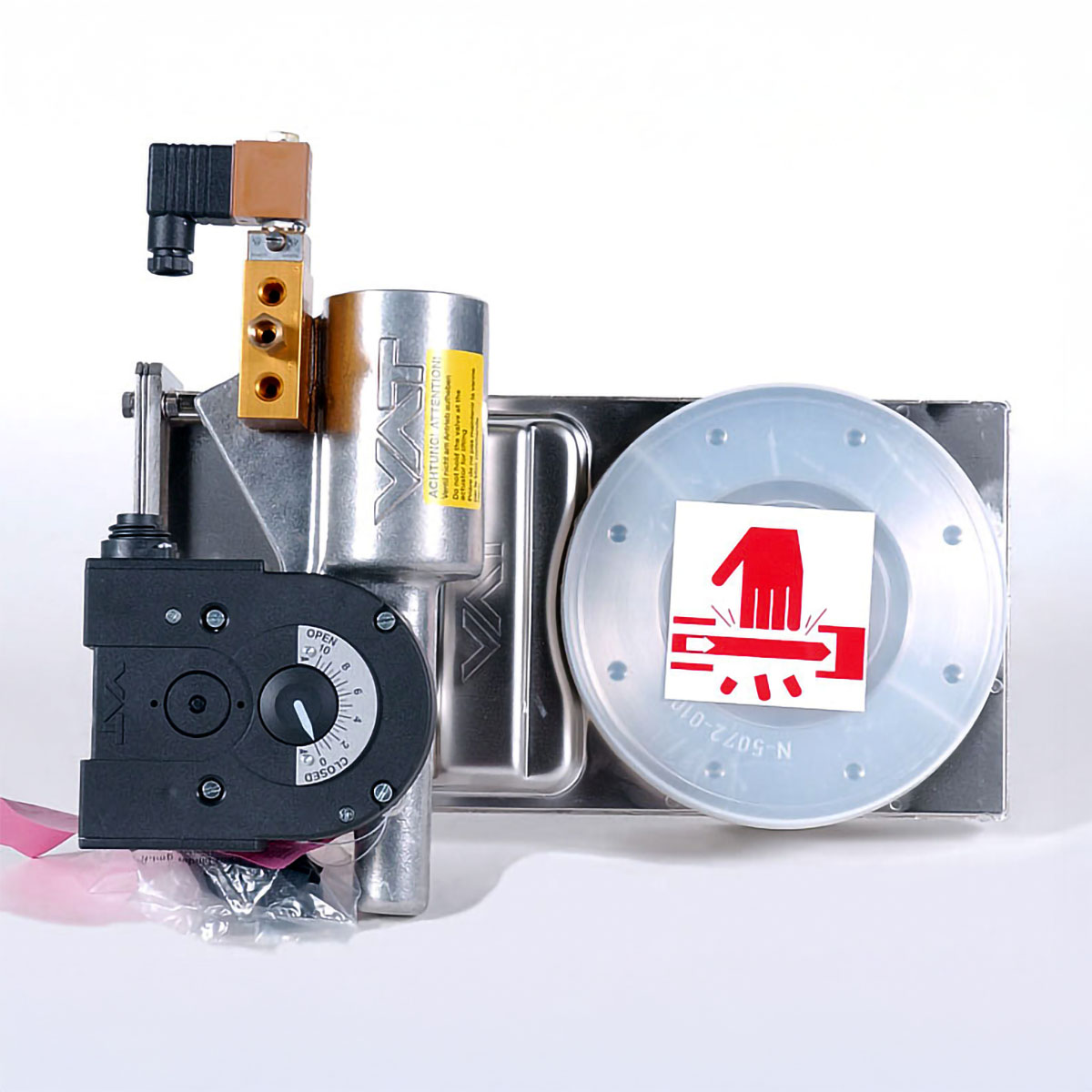

VAT 14044-PE44 ISO-160 - REBUILT
VAT 14044-PE44 Series 140 DN ISO-160 HV Vacuum Gate Valve
For Standard High Cycle Vacuum Isolation
Shut-off device for pumps in process systems, industrial applications, transfer valve.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inside diameter (ID) in mm |
DN 160 (6") |
| Flange |
ISO-F |
| Body material |
Stainless steel |
| Actuator |
Pneumatic, double acting |
| Solenoid |
Yes |
| Position indicator |
Yes |
| Pressure min. |
1 x 10-8 mbar |
| Pressure max. |
2.0 bar (abs) |
| Molecular flow conductance l/s |
5,000 |
| Max. differential pressure closed position in bar |
2 |
| Max. pressure on seat side during opening in bar |
0.03 |
| Compressed air pressure max. in bar |
7 |
| Compressed air pressure min. in bar |
4 |
| Volume of air cylinder in l |
0.27 |
| Closing or opening time in sec. |
2.5 |
| Valve body temperature max. in °C |
150 |
| Actuator temperature max. in °C |
50 |
| Position Indicator temp. max. in °C |
80 |
| Weight in kg / lbs |
25 / 55.12 |
| Type |
Label |
Description |
Download |
|
|
VAT Series 14 - REBUILT |
Installation, Operating & Maintenance Instructions |
Download
|
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
VAT Fabrication No. 14044-PE44 Series 140 DN ISO-160 HV Vacuum Gate Valve
