VAT 17236-TE14 ISO-63 - REBUILT
Call for Price
In stock
SKU
REBUILT_17236-TE14
VAT 17236-TE14 Series 170 DN ISO-63 HV Vacuum Gate Valve
Shut-off device for pumps in process systems, industrial applications, transfer valve.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inside diameter (ID) in mm | DN 63 |
| Flange | ISO-F (compatible with ISO 1609) |
| Body material | Stainless steel |
| Actuator | Pneumatic actuator with position indicator without solenoid valve double acting |
| Solenoid | No |
| Position indicator | Yes |
| Pressure min. | 1 x 10-8 mbar |
| Pressure max. | 2.0 bar (abs) |
| Feedthrough | Rotary feedthrough, HV |
| Sealing technology | VATLOCK-System |
| Sealhead description | FKM (VITON®) |
| Sealing materials | FKM (VITON®) |
| Molecular flow conductance l/s | 440 |
| Max. differential pressure closed position in bar | 2 |
| Max. pressure on seat side during opening in bar | 0.03 |
| Compressed air pressure max. in bar | 7 |
| Compressed air pressure min. in bar | 4 |
| Volume of air cylinder in l | 0.13 |
| Closing or opening time in sec. | 1.5 |
| Valve body temperature max. in °C | 150 |
| Actuator temperature max. in °C | 50 |
| Position Indicator temp. max. in °C | 80 |
| Weight in kg / lbs | 10 / 22.05 |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
VAT Fabrication No. 17236-TE14 Series 170 DN ISO-63 HV Vacuum Gate Valve
Related Products
-

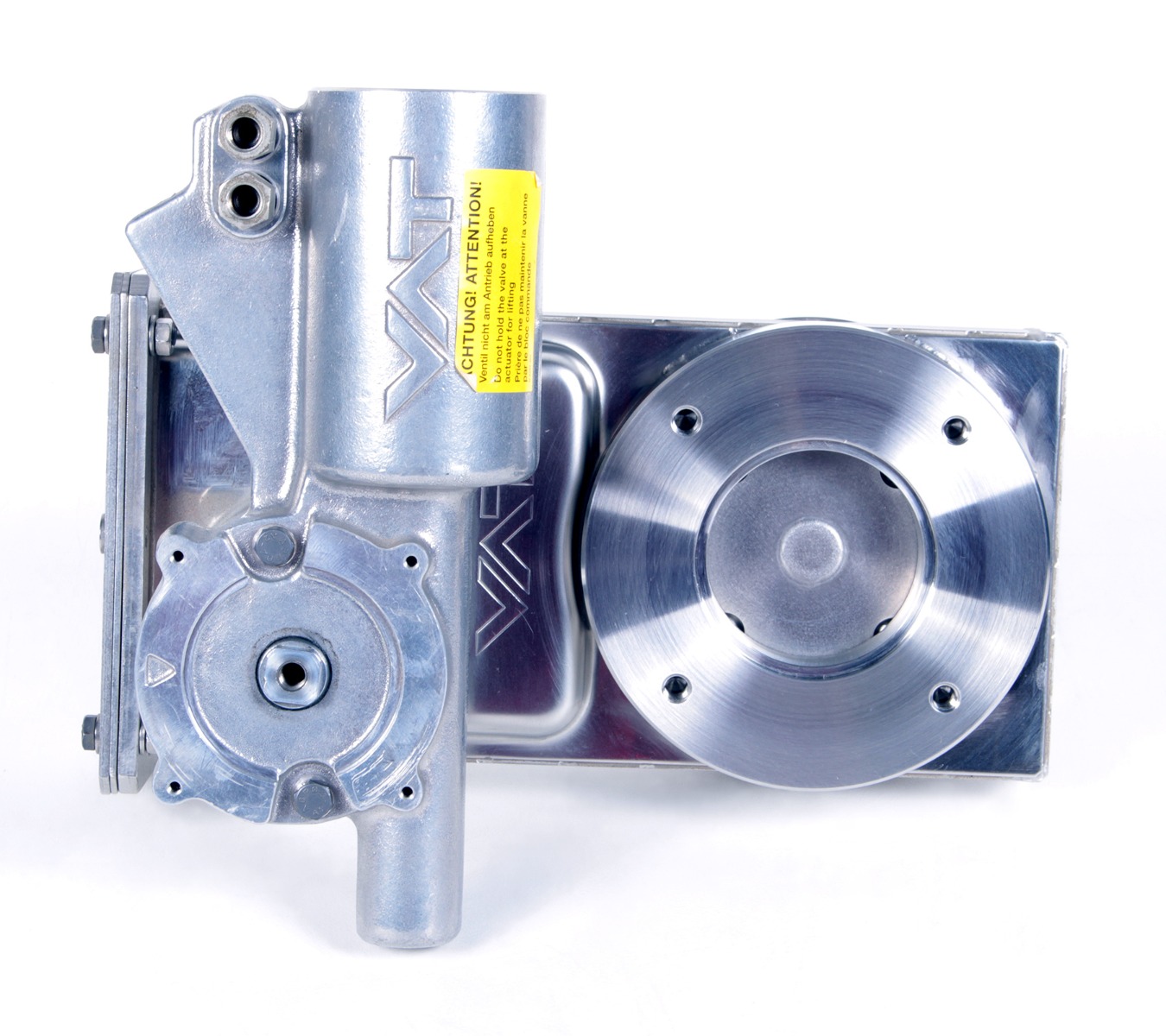

VAT 14036-PE24 ISO-63 - REBUILTCall for Price
-
