VAT 65148-PACW ISO-250 - REBUILT
Call for Price
In stock
SKU
REBUILT_65148-PACW

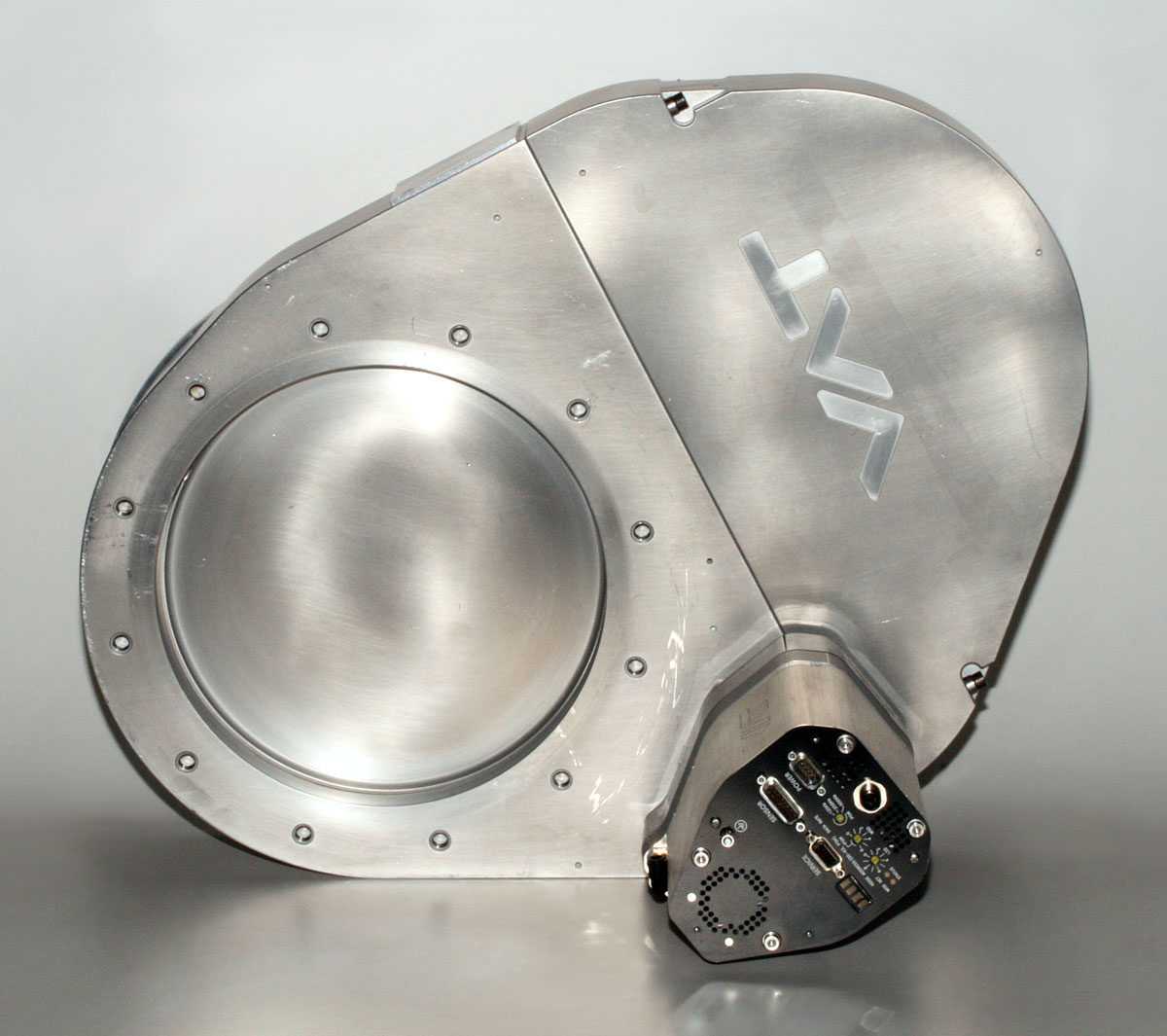

VAT 65148-PACW DN ISO-250 Vacuum Pendulum Control Valve
Optimized for corrosive semiconductor and FPD processes (e. g. etching) and for cleaning processes between deposition processes. In control mode, the valve works virtually particle-free. Maintenance can be done easy and fast.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inside diameter (ID) in mm | DN 250 |
| Flange | ISO-F (compatible with ISO 1609) |
| Body material | Aluminum |
| Actuator | UC-PFO / SPS, RS232 interface with 2 analog outputs / 2 sensors |
| Power Failure Option (PFO) | Yes |
| Sensor Power Supply (SPS) | 1 |
| Interface | RS232 with analog output |
| Number of Sensor(s) | 2 |
| Pressure min. | 1 x 10-8 mbar |
| Pressure max. | 1.2 bar (abs) |
| Feedthrough | Rotary feedthrough (actuator), Shaft feedthrough (sealing ring) |
| Sealing technology | SEALRING-System |
| Sealhead description | FKM (VITON®) |
| Sealing materials | FKM (VITON®) |
| Molecular flow conductance l/s | 22,000 |
| Min. controllable conductance | 2.5 |
| Max. differential pressure closed position in bar | 1.2 |
| Max. pressure on seat side during opening in bar | 0.005 |
| Compressed air pressure max. in bar | 7 |
| Compressed air pressure min. in bar | 4 |
| Closing or opening time in sec. | 4 / 4 |
| Valve body temperature max. in °C | 120 |
| Actuator temperature max. in °C | 50 |
| Weight in kg / lbs | 29 / 63.93 |
| Type | Label | Description | Download |
|---|---|---|---|
|
VAT Series 651 - REBUILT | Installation, Operating & Maintenance Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
VAT Fabrication No. 65148-PACW DN ISO-250 Vacuum Pendulum Control Valve
