Welch DuoSeal 1402 - REBUILT
| Weight |
132 lbs |
| Motor Power |
0.5 hp |
| Pumping Speed |
5.6 cfm |
| Ultimate Pressure |
1 x 10-4 torr |

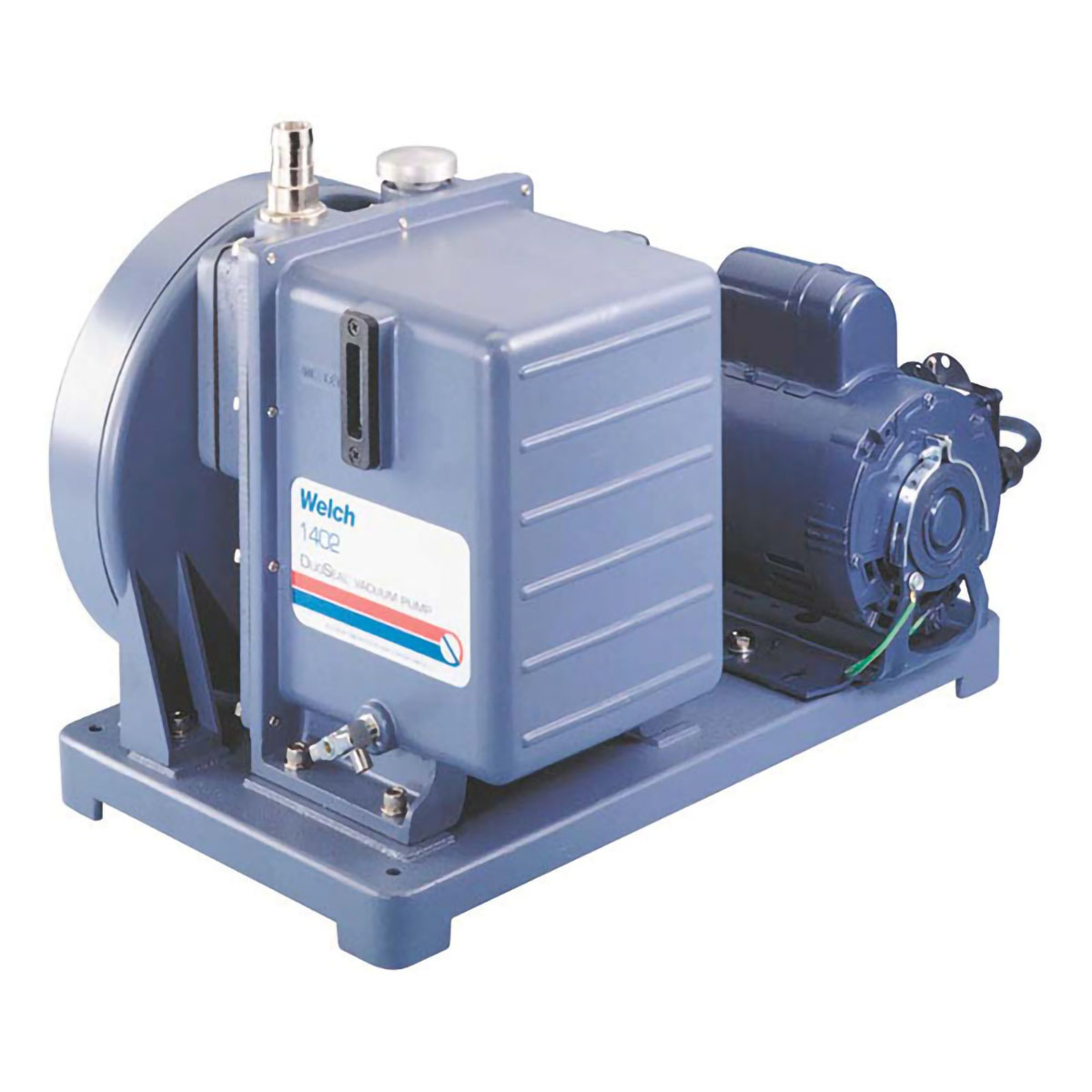

Welch Gardner Denver DuoSeal 1402 Rotary Vane Vacuum Pump - REBUILT
- High contamination tolerance
- Ultimate vacuum < 0.001 Torr
- Low RPM for long service life
Applications: Vacuum Ovens, Glove Boxes, General Laboratory Vacuum
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Applications |
Vacuum ovens, glove boxes, general lab vacuum |
| Type |
Belt drive vacuum pump |
| Free air displacement |
5.6 cfm (160 l/min) |
| Ultimate pressure |
1 x 10-4 (0.00013) |
| Pump RPM |
525 |
| Oil capacity |
2.25 l |
| Motor horsepower |
1/2 (370 watts) |
| Adjustable vac / gas ballast |
Yes |
| Tubing needed |
13/16 (21) |
| Intake thread |
1-20 NPT |
| Exhaust thread |
1-20 NPT |
| Weight |
132 lbs |
Specifications
| Type |
Label |
Description |
Download |
|
|
Welch DuoSeal Series - REBUILT |
Instruction Manual |
Download
|
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Welch Gardner Denver DuoSeal 1402 Rotary Vane Vacuum Pump - REBUILT
1402B01 / 1402B-01 115V 60Hz single-phase
1402C01 / 1402C-01 230V 60Hz 1-phase
1402C02 / 1402C-02 230V 50Hz 1-phase
1402M01 / 1402M-01 230V 60Hz 3-phase
