Adixen Alcatel ACP 28 - REBUILT
| Weight |
67 lbs |
| Pumping Speed |
16 cfm |
| Ultimate Pressure |
3 x 10-2 mbar |

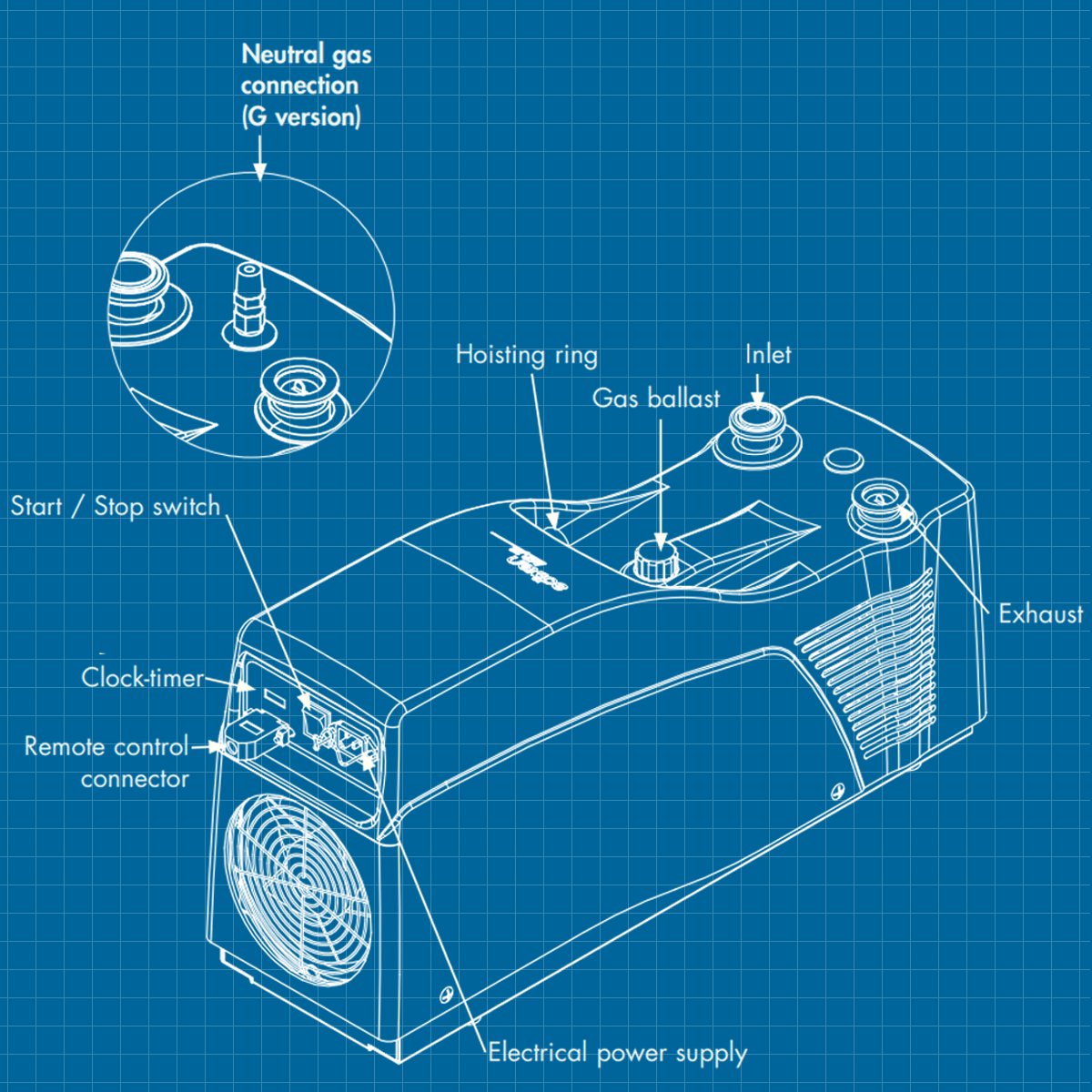

Adixen Alcatel ACP 28 Semiconductor Dry Vacuum Pump - REBUILT
The pump is designed for applications that require the pumping of clean (dust-free) and non-corrosive gases. Examples are:
- Instrumentation
- Gas analysis
- Electronic microscope
- X-ray spectrometer
- Leak detection
- Surface analyzer
- Research and development
- Semiconductor fabrication
- Load lock and transfer chamber pumping
- Wafer back pumping
Adixen Alcatel has more information on multi stage dry pumps. We also offer repair service.
Part # Configurations
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Utilization |
Indoor |
| Functioning altitude |
> 2,000 m |
| Installation category |
II |
| Pollution degree |
2 |
| Ultimate pressure |
3 x 10-2 mbar |
| Max ultimate pressure |
5 x 10-2 |
| Max pressure at inlet |
1,013 mbar |
| Max exhaust pressure |
1,200 mbar |
| Ambient operating temperature |
12 - 40°C |
| Leakage current |
< 5 mA |
| Power consumption |
| Gas ballast closed w/out purge |
700 W |
| Gas ballast opened w/ purge |
900 W |
| At atmospheric pressure |
1,000 W |
| Gas ballast flowrate |
0.3 m3/h |
| Single phase power |
110 - 230 V |
| Fan flow rate |
410 m3/h |
| Inlet |
DN 25 ISO-KF |
| Outlet |
Dn 16 ISO-KF |
| Oil capacity |
25 cm3 |
| Weight |
30 kg |

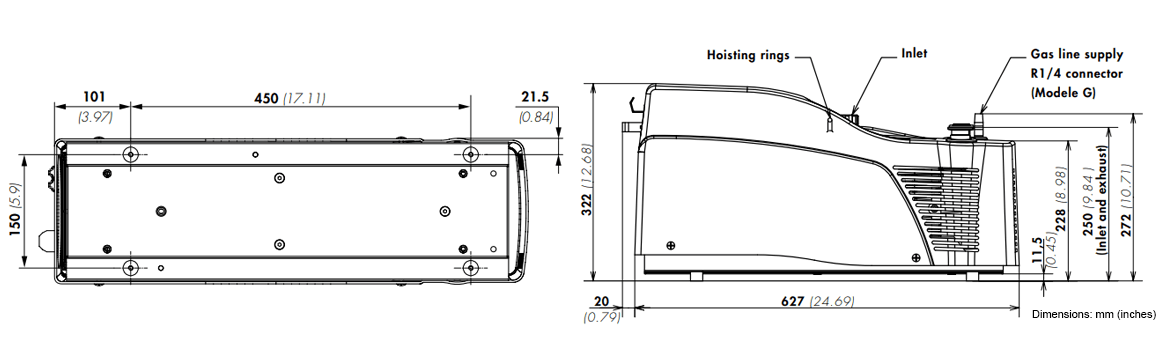

Specifications
| Type |
Label |
Description |
Download |
|
|
Adixen Alcatel ACP Series - REBUILT |
User's Manual |
Download
|
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
