Adixen ACP 40 - REBUILT
Call for Price
In stock
SKU
REBUILT_ACP40
| Weight | 70.5 lbs |
|---|---|
| Pumping Speed | 22 cfm |
| Ultimate Pressure | 5 x 10-2 mbar |

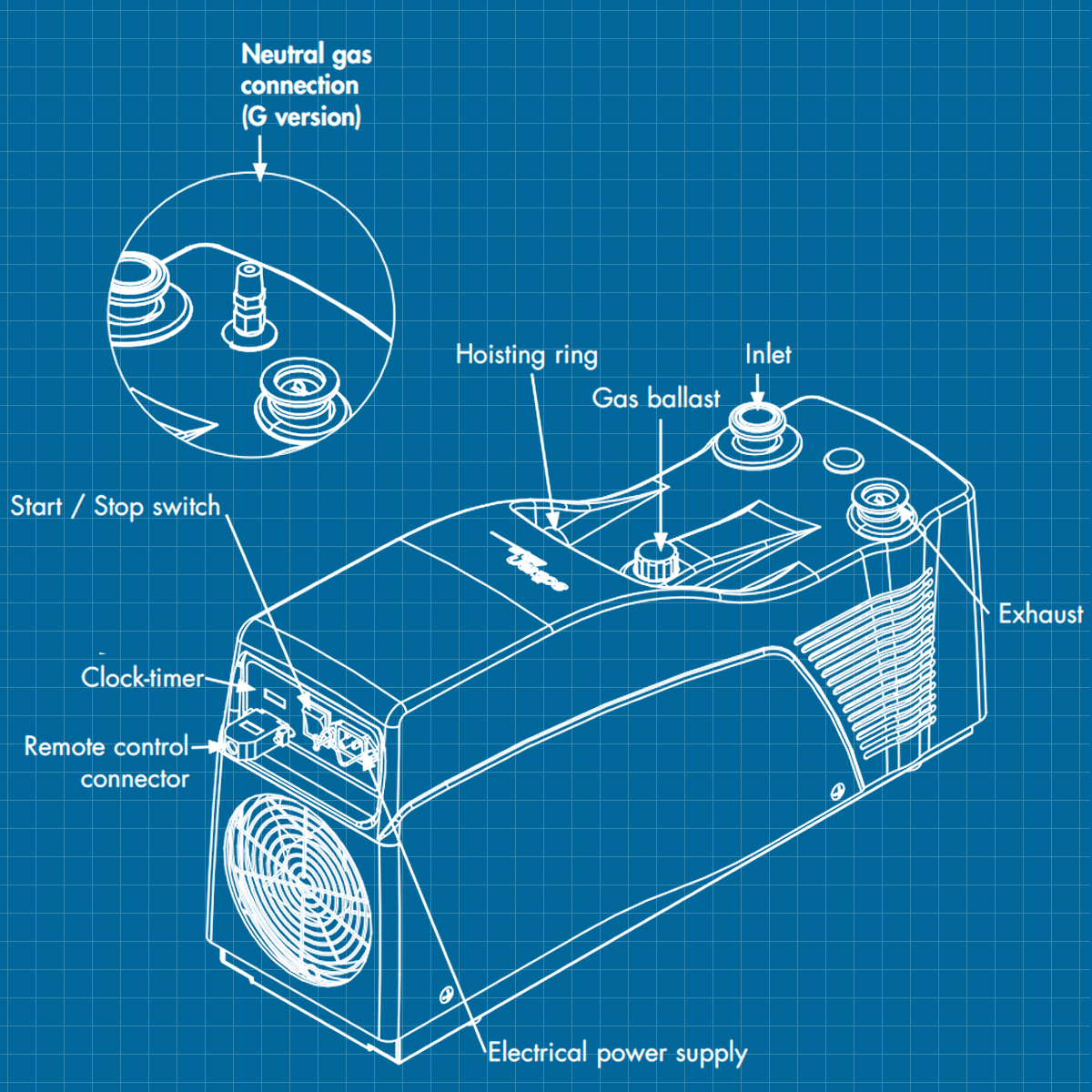

Adixen ACP 40 Semiconductor Dry Vacuum Pump - REBUILT
Alcatel designed the pump for applications that require the pumping of clean (dust-free) and non-corrosive gases. Examples are:
- Instrumentation
- Gas analysis
- Electronic microscope
- X-ray spectrometer
- Leak detection
- Surface analyzer
- Research and development
- Semiconductor fabrication
- Load lock and transfer chamber pumping
- Wafer back pumping
Adixen has more information on multi stage dry pumps. We also offer repair service.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Utilization | Indoor |
| Functioning altitude | > 2,000 m |
| Installation category | II |
| Pollution degree | 2 |
| Ultimate pressure | 3 x 10-2 mbar |
| Max ultimate pressure | 5 x 10-2 |
| Max pressure at inlet | 1,013 mbar |
| Max exhaust pressure | 1,200 mbar |
| Ambient operating temperature | 12 - 40°C |
| Leakage current | < 5 mA |
| Power consumption | |
| Gas ballast closed w/out purge | 700 W |
| Gas ballast opened w/ purge | 900 W |
| At atmospheric pressure | 1,000 W |
| Gas ballast flowrate | 1.2 m3/h |
| Single-phase power | 110 - 230 V |
| Fan flow rate | 410 m3/h |

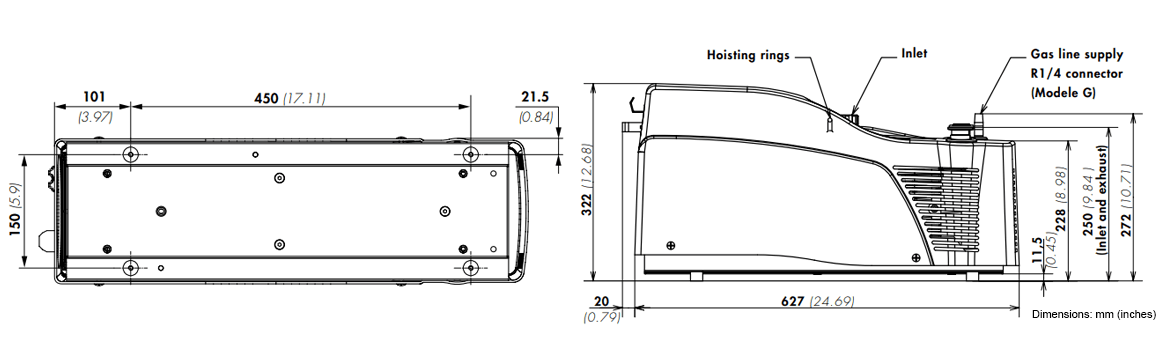

| Inlet | DN 25 ISO-KF |
| Outlet | D 16 ISO-KF |
| Oil capacity | 25 cm3 |
| Weight | 32 kg |
| Type | Label | Description | Download |
|---|---|---|---|
|
Adixen Alcatel ACP Series - REBUILT | User's Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Adixen Alcatel ACP 40 Semiconductor Dry Vacuum Pump - REBUILT
