Adixen Alcatel ADP 122 P - REBUILT
Call for Price
In stock
SKU
REBUILT_ADP122P
| Weight | 580 lbs |
|---|---|
| Pumping Speed | 65.8 cfm |
| Ultimate Pressure | 5 x 10-2 mbar |
Adixen Alcatel ADP 122 P Semiconductor Dry Vacuum Pump - REBUILT

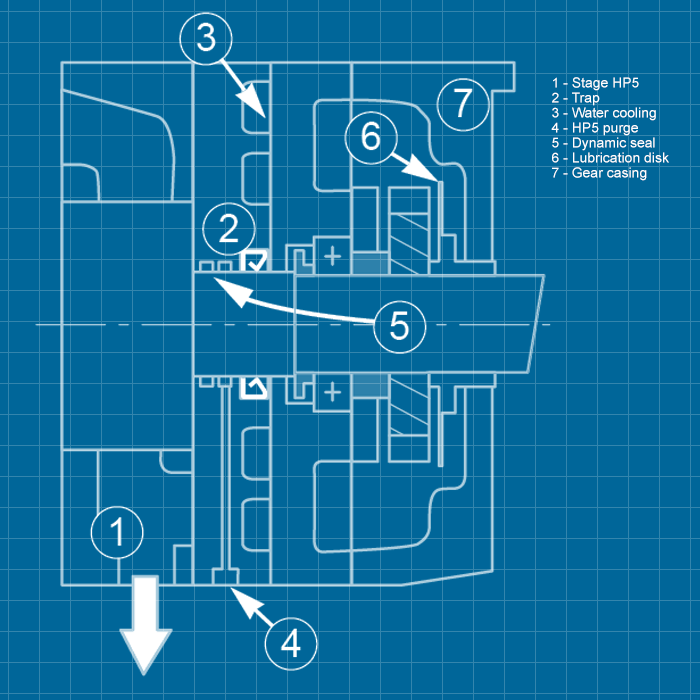

The "P model" pumps of the Series Two range include a cooling circuit and an inert gas purge circuit. These pumps are especially designed for corrosive applications.
Adixen Alcatel has more information on multi stage dry pumps. We also offer repair service.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| 60 Hz | |||
| Peak pumping speed | 112 m3/h | 65.8 cfm | 1,867 l/mn |
| Typical ultimate pressure | 9 x 103 mbar | 6.7 x 103 Torr | |
| Max. ultimate pressure | 1.5 x 10-2 mbar | 1.1 x 10-2 Torr | |
| Ultimate pressure | 5 x 10-2 mbar | 3.7 x 10-2 Torr | |
| Power at ultimate | 1.5 kW | ||
| Motor rating | 1.5 kW | ||
| 50 Hz | |||
| Peak pumping speed | 95 m3/h | 55.8 cfm | 1,583 l/mn |
| Typical ultimate pressure | 1 x 10-2 mbar | 7.5 x 10-2 Torr | |
| Max. ultimate pressure | 3 x 10-2 mbar | 2.2 x 10-2 Torr | |
| Ultimate pressure | 9 x 10-2 mbar | 6.7 x 10-2 Torr | |
| Power at ultimate | 1.3 kW | ||
| Motor rating | 1.5 kW |
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Adixen Pfeiffer ADP / ADS Series Two - REBUILT | Operating Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Adixen Alcatel ADP 122 P Semiconductor Dry Vacuum Pump - REBUILT
