Adixen Alcatel ADS 1202 P - REBUILT
Call for Price
In stock
SKU
REBUILT_ADS1202P
| Weight | 1230 lbs |
|---|---|
| Motor Power | 6.9 hp |
| Pumping Speed | 676 cfm |
| Ultimate Pressure | 5 x 10-4 mbar |
Adixen Alcatel ADS 1202 P Dry Pump Vacuum System - REBUILT

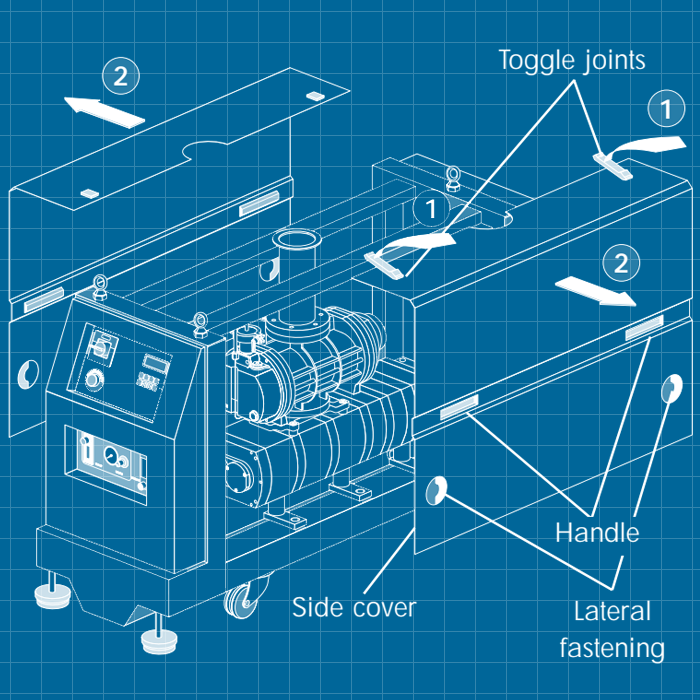

Adixen Alcatel ADS packages are highly reliable and designed for easy maintenance. It has a universal motor to cover the widest possible voltage and frequency range from a single variant. PTB Sales can provide repair service for your ADS package.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Nominal flow-rate | |||
| 50 Hz: | 1,050 m3/h | 17,500 l/mn | 617 cfm |
| 60 Hz: | 1,150 m3/h | 19,167 l/mn | 676 cfm |
| Ultim. pressure at 50 Hz | 8 x 10-4 mbar | 6 x 10-4 torr | |
| Ultim. pressure at 60 Hz | 5 x 10-4 mbar | 3.7 x 10-4 torr | |
| Nominal power | 5.2 kW | ||
| Supply voltage 3 Ph | 200/480 V | ||
| Consumption at ult. pressure | 50 Hz: 3 kW / 60 Hz: 3.2 kW | ||
| Max. exhaust pressure | 1,200 mbar | 900 Torr | |
| N2 purge flow rate | 0 to 50 sl/mn | ||
| Cooling water | 80 l/h | ||
| Rotation speed | 3,000 to 3,600 rpm | ||
| Pump running ambient temperature | 50 to 40 °C | ||
| Gear boxes | 0.35 l | ||
| Fluid capacity | 2.05 l | ||
| Inlet flange | DN 40 ISO-KF | ||
| Exhaust flange | DN 40 ISO KF | ||

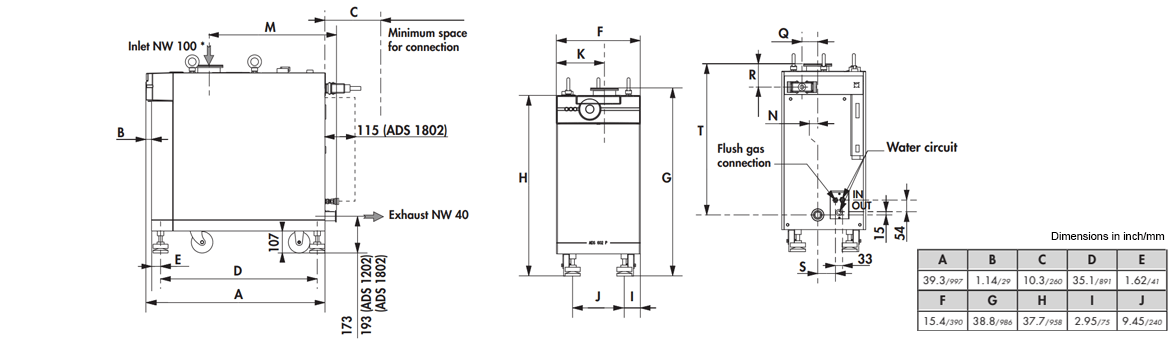

| Dimensions l x w x h | 39.2 x 15.4 x 38.8 inches | ||
| Weight | 550 kg |
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Adixen Pfeiffer ADP / ADS Series Two - REBUILT | Operating Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Adixen Alcatel ADS 1202 P Dry Pump Vacuum System - REBUILT 1202LM (Light to Medium Duty) 1202P (Process Duty) 1202H (Harsh Duty)
