Agilent IDP-10 - NEW
| Weight | 62 lbs |
|---|---|
| Pumping Speed | 6.00 cfm |
| Ultimate Pressure | 2 x 10-2 mbar |
Agilent IDP-10 Dry Scroll Vacuum Pump - NEW
The Agilent IDP-10 dry scroll pump is a compact, high performance, oil-free vacuum pump that is easy to maintain. The inverter driven motor provides uniform vacuum performance at all global frequencies and input voltages. The hermetic design, with the motor and all bearings completely isolated from the vacuum path extends the bearing life and provides clean, dry vacuum. An optional integral inlet protection valve, built into the pump module, is available and adds no additional height to the pump.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Peak pumping speed | 170 l/min (10.2 m3/h) at full speed |
| Media | No corrosive, explosive or particulate forming gases |
| Ultimate pressure | 2.0 x 10-2 mbar (1.5 x 10-2 Torr) |
| Max. inlet pressure | 1.0 atmosphere (0 psig) |
| Max. recommended continuous inlet pressure | 2.0 x 10-2 mbar (1.5 x 10-2 Torr) |
| Max. outlet pressure at nom voltage | 1.34 atmosphere (5 psig) |
| Inlet connection | NW25 |
| Exhaust connection | NW16 |
| Gas ballast | Female, 0.25 inch, national pipe thread, (20 µm sintered plug provided) SAE-2 5/16-24 |
| Water vapor handling per Pneurop 6602 | 120 grams/hr maximum |
| Ambient operating temperature | 5 to 40°C (41 to 104°F) |
| Storage temperature | –20 to 60°C (–4 to 140°F) |
| Motor rating | 0.5 hp (350 W); 3-phase inverter driven |
| Operating voltages | 100-127; 200-240 VAC, 50/60 Hz |
| Motor thermal protection | Automatic thermal protection |
| Operating speed | 63.33 Hz: 1,900 rpm; 45 Hz: 1,350 rpm |
| Cooling system | Air-cooled |
| Weight | Pump only: 24.74 kg (54.5 lbs), shipping weight: 28.1 kg (62 lbs) |

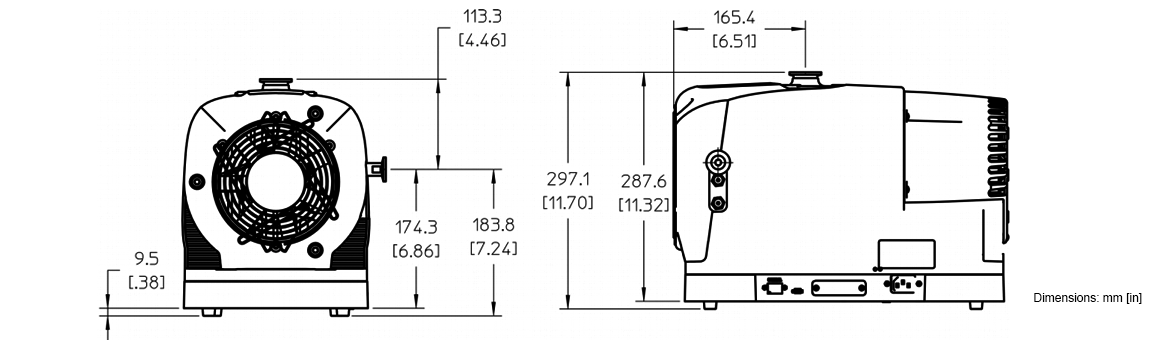

| Dimensions (H x W x L mm) | 297 x 260 x 420 |
| Leak rate (with exhaust sealed) | <1 x 10-6 sccs (1 x 10-6 mbar.l/s) |
| Noise level | 53 +/- 2 dB (A) |
| Vibration level at inlet | 7 mms-1 rms |
| Hour meter | Integral hour meter provided |
| Emissions and immunity | EN 61236-1:2013 as a Class A device |
| Safety | EN/IEC 61010 3rd Edition certified |
| Type | Label | Description | Download |
|---|---|---|---|
|
Agilent IDP-10 - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent IDP-10 Dry Scroll Vacuum Pump - NEW X3810-64000 standard X3810-64010 w/ inlet isolation valve
