Agilent IDP-10 - REBUILT
Weight
62 lbs
Motor Power
0.5 hp
Pumping Speed
10.2 m3 /h
Ultimate Pressure
2 x 10-3 mbar

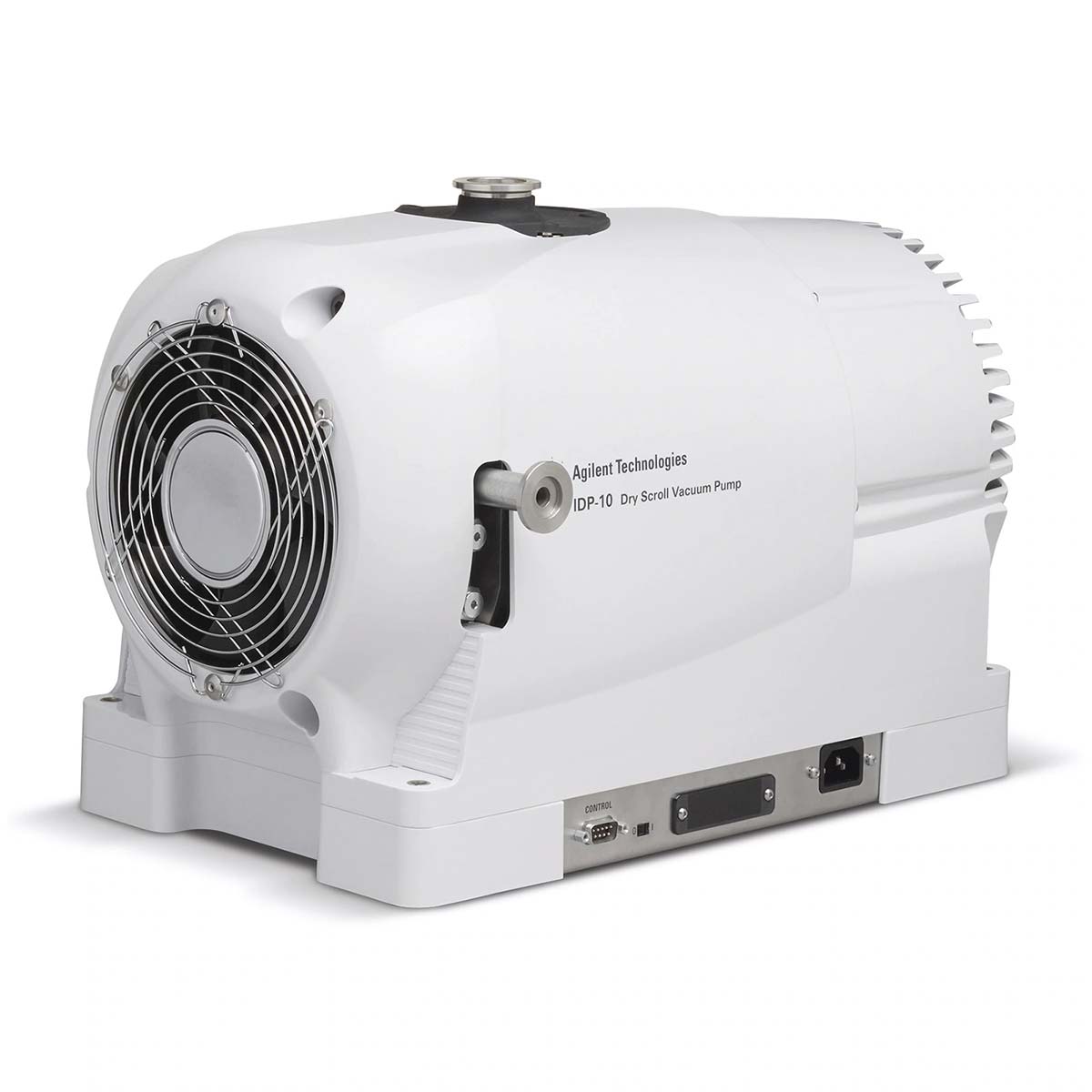

Agilent IDP-10 Dry Scroll Vacuum Pump - REBUILT

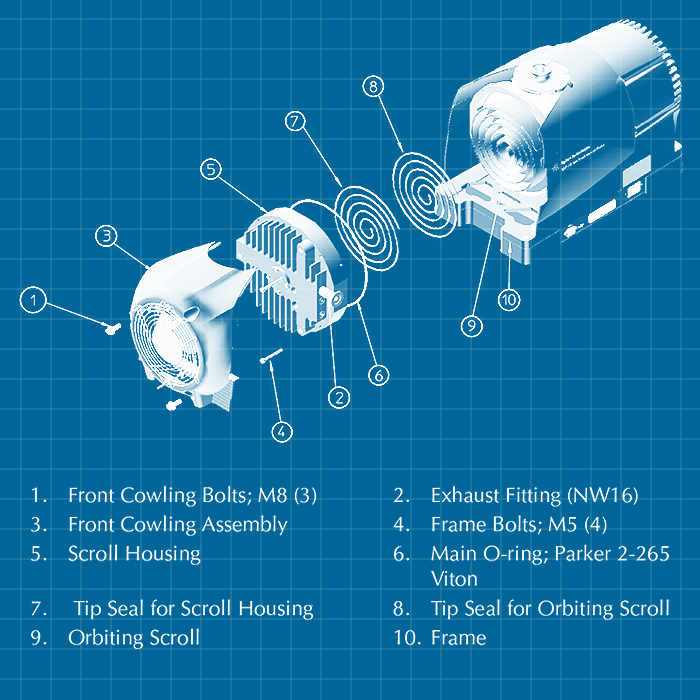

These Agilent IDP pumps are sold rebuilt and come with a one year warranty. The warranty does not cover tip seal maintenance. For example, per OEM specs, scroll pump tip seals must be replaced every 8,000 hours, or slightly less than 11 months, to maintain good base pressure.
Questions? send an email to our sales team!
Peak pumping speed
Default factory setting: 63.3 Hz: 1,900 RPM, 170 L/min (10.2 m3 /h)
Media
No corrosive, explosive or particulate forming gases
Ultimate pressure
2.0 x 10-2 mbar (1.5 x 10-2 Torr)
Max. inlet pressure at nominal voltage
1.0 atmosphere (0 psig)
Max. recommended continuous inlet pressure
400 mbar (300 Torr)
Max. outlet pressure
115V range: 5 psig, 115 VAC 50/60HZ or greater, derate linearly to 0 psig at 100VAC below 115VAC 230V range: 5 pisg, 200 VAC 50/60HZ or greater
Inlet connection
NW25
Exhaust connection
Female 1/4" National Pipe Thread (NW16)
Gas ballast
Female 1/8" National Pipe Thread, (20 micron sintered plug provided)
Water vapor handling
120 grams/hr maximum
Ambient operating temperature
5 to 40°C (41 to 104°F)
Storage temperature
–20 to 60°C (–4 to 140°F)
Motor rating
1/2 hp (370 W)
Operating voltages
Operates with inverter - functions with several power inputs: 1 phase/100-120VAC 50/60Hz, 9 A typical; 200-240 50/60Hz, 5 A typical
Motor thermal protection
Automatic thermal protection
Operating speed
Full Speed 1,900 (factory set) RPM; user variable from 1,350 to 1,900 RPM
Cooling system
Air-cooled
Weight
Pump only: 24.7 kg (55 lbs), shipping weight: 28.1 kg (62 lbs)

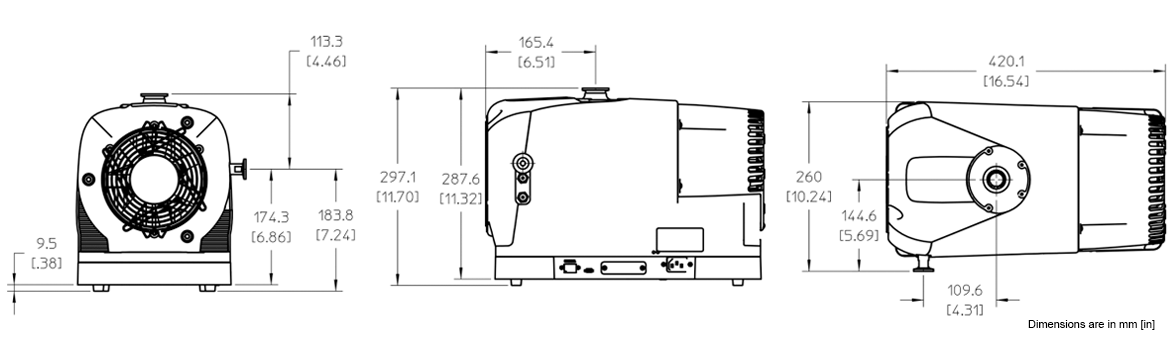

Dimensions (H x W x L mm)
297 x 260 x 420
Leak rate (with exhaust sealed)
< 1 x 10-7 sccs
Noise level (per ISO 11201)
52 +/- 2 dB(A)
Vibration level at inlet (per ISO 10816-1)
Class 1B, 7 mm/s
Fuse type
M5 x 20 mm, 10 A, Slo-Blo, Littelfuse Model 215010 or equivalent, not user replaceable
Hour meter
Integral hour meter provided, displays running time to closest 1 hour
Emissions and immunity
EN 61236-1:2006 as a Class A device
Ambient Relative Humidity
5-95%; non-condensing
Specifications
Type
Label
Description
Download
Agilent IDP-10 - REBUILT
Instruction Manual
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent IDP-10 Dry Scroll Vacuum Pump - REBUILT
G700480010 / G7004-80010
