Agilent IDP-15 - REBUILT
Call for Price
In stock
SKU
REBUILT_IDP15
| Weight | 75 lbs |
|---|---|
| Motor Power | 0.75 hp |
| Pumping Speed | 15.4 m3/h |
| Ultimate Pressure | 1.33 x 10-2 mbar |
Agilent IDP-15 Dry Scroll Vacuum Pump - REBUILT
These Agilent IDP pumps are sold rebuilt and come with a one year warranty. The warranty does not cover tip seal maintenance. For example, per OEM specs, scroll pump tip seals must be replaced every 8,000 hours, or slightly less than 11 months, to maintain good base pressure.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Peak pumping speed | 60 Hz: 256 L/m, 15.4 m3/hr 50 Hz: 214 L/m, 12.8 m3/hr |
| Media | Not suitable for use with corrosive, explosive or particulate forming gases |
| Ultimate pressure | 10 x 10-3 Torr (13.3 x 10-3 mbar) |
| Maximum inlet pressure | 1.0 atmosphere (0 psig) |
| Maximum outlet pressure | 6.5 psig |

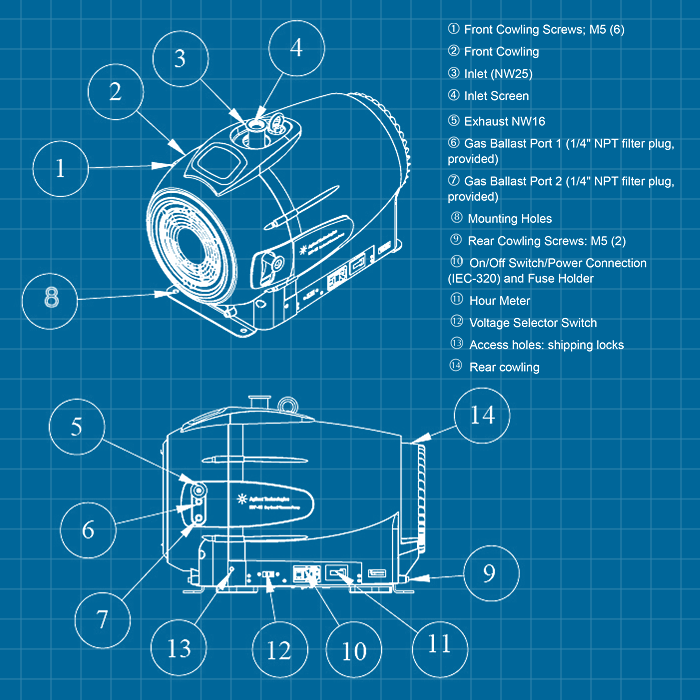

| Inlet connection | NW25 Exhaust connection NW16 Gas ballast: 1/4" NPTF (two positions) |
| Water vapor handling per Pneurop 6602 | Gas Ballast Position 1: 20.7 g/hr Gas Ballast Position 2: 235 g/hr |
| Ambient operating temperature | 5°C to 45°C (41°F to 113°F) |
| Storage temperature | -20°C to 60°C (-4°F to 140°F) |
| Motor rating | 0.75 hp (560 W), 1-phase / 100 VAC, 50/60 Hz |
| Operating voltages | single-phase / 115 VAC, 60 Hz, 1-phase / 220-230 VAC, 50/60 Hz |
| Motor thermal protection | Automatic thermal protection |
| Operating speed | 60 Hz: 1,725 rpm, 50 Hz: 1,450 rpm |
| Cooling system | Air-cooled pump |
| Weight | 34 kg (75 lbs) |

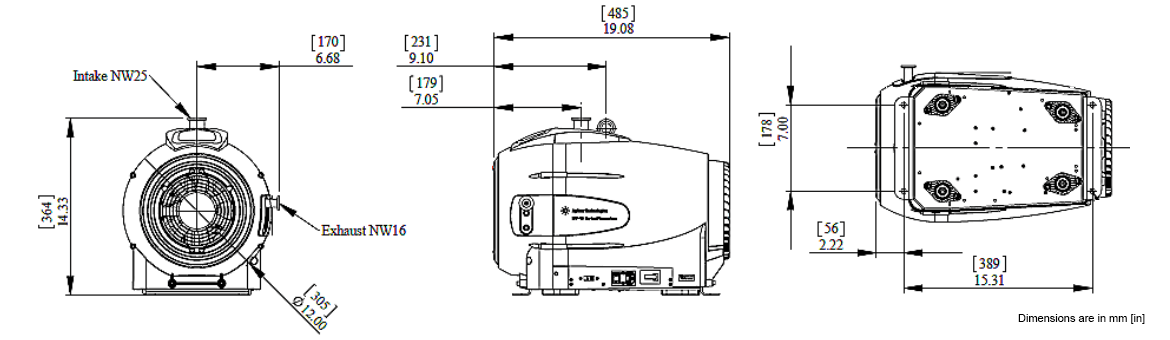

| Dimensions | 364mm (14.3”) h x 333mm (13.1”) w x 485mm (19.1”) l |
| Leak rate (with exhaust and gas ballast sealed) | < 1 x 10-6 sccs helium |
| Vibration level at inlet | < 9 mms-1 rms |
| Noise level | 50 dBA ± 2dBA |
| Conformance standards | CE, CSA, RoHS |
| Type | Label | Description | Download |
|---|---|---|---|
|
Agilent IDP-15 - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent IDP-15 Dry Scroll Vacuum Pump - REBUILT X381564000 / X3815-64000 IDP-15 standard X381564010 / X3815-64010 IDP-15 standard w/ inlet valve
