Agilent IDP-7 - NEW
| Weight | 62 lbs |
|---|---|
| Pumping Speed | 7.2 m3/h |
| Ultimate Pressure | 4.0 x 10-2 mbar |

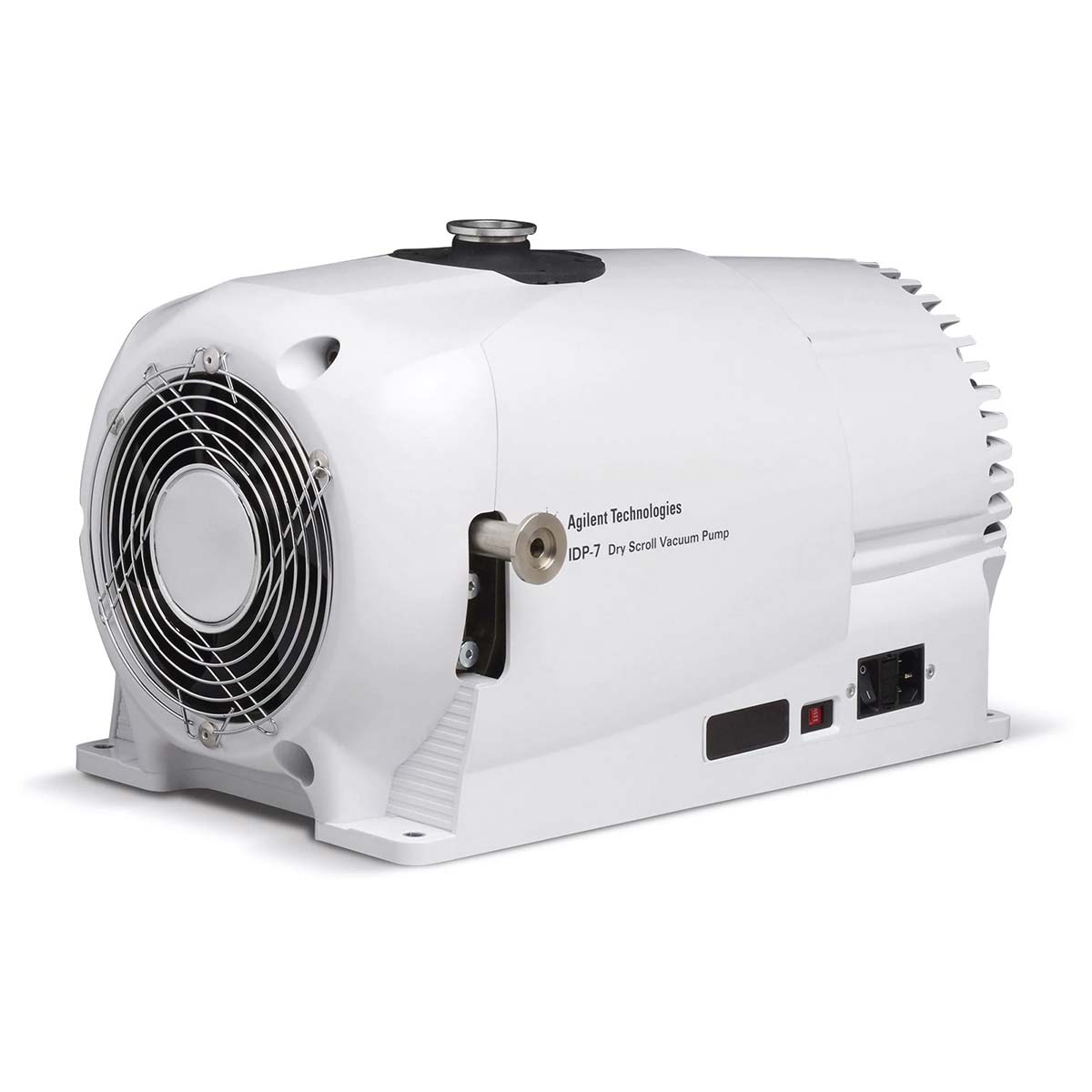

Agilent IDP-7 Dry Scroll Vacuum Pump - NEW
The Agilent IDP-7 dry scroll pump is an innovative, compact, high-performance, oil-free vacuum pump that is suitable for a wide variety of applications. It is the smallest scroll pump made for general vacuum applications, which makes it easy to integrate into OEM systems, and it weighs only 21 pounds (9.5 kg). Yet with a pumping speed of 60 l/m and a very low base pressure of 250 milliTorr, it is the highest-performing dry pump in its class.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Peak pumping speed | 60 Hz: 152 L/min (9.1 m3/h) 50 Hz: 120 L/min (7.2 m3/h) |
| Media | No corrosive, explosive or particulate forming gases |
| Ultimate pressure |
60 Hz: 2.6 x 10-2 mbar (2.0 x 10-2 Torr) 50 Hz: 4.0 x 10-2 mbar (3.0 x 10-2 Torr) |
| Max. inlet pressure | 1.0 atmosphere (0 psig) |
| Max. recommended continuous inlet pressure | 200 mbar (150 Torr) |
| Max. outlet pressure at nom voltage | 1.34 atmosphere (5 psig) |
| Inlet connection | NW25 |
| Exhaust connection | NW16 |
| Gas ballast | Female, 0.25 inch, national pipe thread, (20 µm sintered plug provided) SAE-2 5/16-24 |
| Water vapor handling per Pneurop 6602 |
120 grams/hr maximum |
| Ambient operating temperature | 5 to 40°C (41 to 104°F) |
| Storage temperature | –20 to 60°C (–4 to 140°F) |
| Motor rating | 0.38 hp (300 W) |
| Operating voltages |
100-120; 200-240 VAC, 50/60 Hz, single-phase, 3 to 6A typical |
| Motor thermal protection | Automatic thermal protection |
| Operating speed | 60 Hz: 1,750 rpm; 50 Hz: 1,450 rpm |
| Cooling system | Air-cooled |
| Weight | Pump only: 24.5 kg (54 lbs), shipping weight: 28.1 kg (62 lbs) |

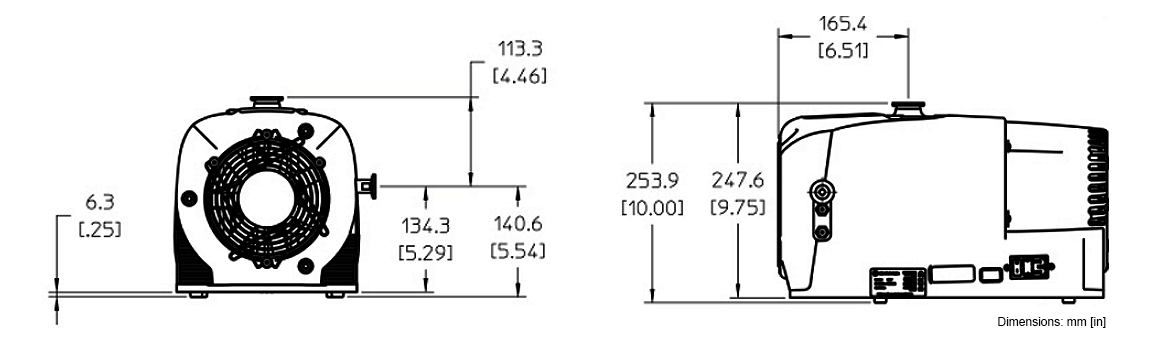

| Dimensions (H x W x L mm) | 254 x 260 x 420 |
| Leak rate (with exhaust sealed) | < 1 x 10-6 sccs (1 x 10-6 mbar.l/s) |
| Noise level | 52 +/- 2 dB (A) |
| Vibration level at inlet | 7 mms-1 rms |
| Hour meter | Integral hour meter provided |
| Emissions and immunity | EN 61236-1:2013 as a Class A device |
| Safety | EN/IEC 61010 3rd Edition certified |
| Type | Label | Description | Download |
|---|---|---|---|
|
Agilent IDP-7 - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent IDP-7 Dry Scroll Vacuum Pump - NEW X3807-64000 IDP-7 dry scroll vacuum pump X3807-64010 IDP-7 dry scroll vacuum pump w/ inlet isolation valve
