Agilent TPS-compact - NEW

Name: Agilent TPS-compact - NEW
Brand: Agilent Varian
SKU: NEW_TPSCompact

Be the first to review this product

Starting at $17,495

In stock

Only %1 left

SKU

NEW_TPSCompact

Request For Quote

Weight	36.8 lbs
Pumping Speed	48 l/s
Ultimate Pressure	< 1 x 10^-8 mbar

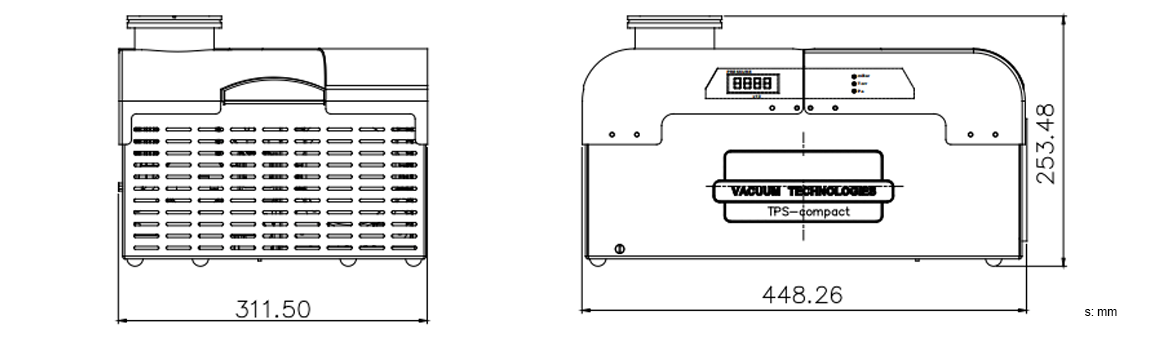

Dimensions

Description

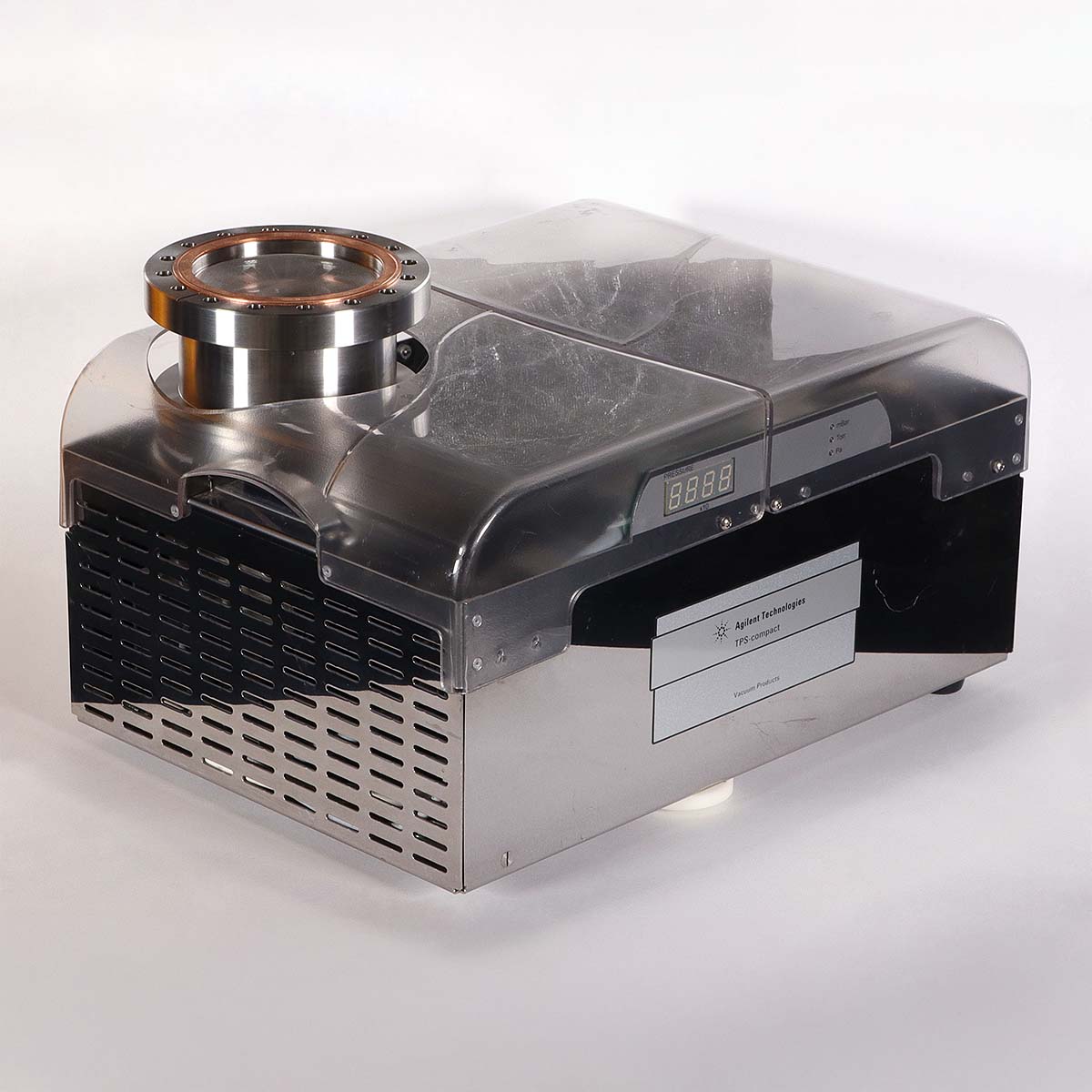

Agilent TPS-compact Turbomolecular Vacuum Pumping System - NEW

The TPS-compact is a portable, hydrocarbon-free pumping station. Available with either the TwisTorr 74 FS or 304 FS turbomolecular pumps and backed by the Agilent 3 m³/h (60 L/min) dry scroll pump technology, it offers the fastest pumpdown on the market in a compact package. The large pressure display is capable of reading a variety of active gauges.

The TPS-compact pumping system can operate on worldwide voltages and is CE/CSA-UL certified.

The system is ideal for medium-size chambers up to 100 L, in university laboratories, industrial applications, and medical applications. The simple to use, on/off switch gives you high vacuum with the flip of a switch.

Dry, integrated 3 m³/h scroll pump (IDP-3) for fast roughing
Plug and pump design for easy, one-switch operation
Compact footprint for easy portability
Onboard electronics and display to read full range gauge pressure from atm to base pressure
Ready for Vacuum Link app to give full pump control through your mobile phone
Multiple turbo pump sizes to meet your application needs
High turbo pump compression ratio enabling low base pressure, down to 1 x 10^-9 mbar
Analog I/O provides accurate control of the system and pressure driven setpoint
Serial RS232 communication protocol with A-plus software enables pump operation, control, and recording of system parameters (i.e., pressure)
Wide voltage range (90–240 V) for worldwide operation
CE/CSA certification

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

	Equipped w/ TwisTorr 74 FS	Equipped w/ TwisTorr 304 FS
Pumping speed	N₂: 48 l/s (ISO 63, with inlet screen)*	N₂: 180 l/s (with inlet screen)*
Base Pressure**	1 x 10^-9 mbar [CFF Flanges] 1 x 10^-8 mbar [ISO Flanges]
Pumpdown Time (15 L volume)	46 sec (100 mbar); 104 sec (1 mbar); 160 sec (1 x 10^-4 mbar); 210 sec (5 x 10^-5 mbar); 400 sec (1.3 x 10^-5 mbar)	80 sec (16 mbar); 110 sec (3 mbar); 155 sec (6 x 10^-5 mbar); 200 sec (1 x 10^-5 mbar)
Turbo pump rotational speed	70,000 RPM	60,000 RPM
Start-up Time	144 sec	150 sec
Operating Ambient Temperature	5°C to 35°C
Input Voltage and Frequency	115 Vac 60 Hz or 220-240 Vac 50/60 Hz or 100 Vac 50/60 Hz
Maximum Input Power	260 VA	310 VA
Bakeout Temperatur	120°C at inlet [CFF Flanges] 80°C at inlet [KF/ISO Flanges]
Communication	RS-232 - Analogical I/O
Weight	16.7 Kg [36.8 lbs]	20.1 Kg [44.3 lbs]

Specifications

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent TPS-compact Turbomolecular Vacuum Pump System - NEW

X3580A#010#020#120  TwisTorr 74FS  KF40 120V
X3580A#010#027#120  TwisTorr 74FS  CFF 2.75” 120V
X3580A#010#021#120  TwisTorr 74FS  ISO 63 120V
X3580A#010#022#120  TwisTorr 74FS  CFF 4.5” 120V
X3580A#010#020#220  TwisTorr 74FS  KF40 220V
X3580A#010#027#220  TwisTorr 74FS  CFF 2.75” 220V
X3580A#010#021#220  TwisTorr 74FS  ISO 63 220V
X3580A#010#022#220  TwisTorr 74FS  ISO 63 220V
X3580A#010#020#105  TwisTorr 74FS  KF40 105V
X3580A#010#027#105  TwisTorr 74FS  CFF 2.75” 105V
X3580A#010#021#105  TwisTorr 74FS  ISO 63 105V
X3580A#010#022#105  TwisTorr 74FS  CFF 4.5” 105V

X358064004 / X3580-64004  TwisTorr 304 FS  ISO-100, 3.6 m³/h scroll, 115V, 60Hz
X350064000 / X3500-64000  (w/ water cooling)
X350064004 / X3500-64004  (w/o water cooling)
X350064010 / X3500-64010  (split flow KF-40 w/ water cooling)

X358064005 / X3580-64005  TwisTorr 304 FS  6" CF, 3.6 m³/h scroll, 115V, 60Hz
X350064001 / X3500-64001  (w/ water cooling
X350064005 / X3500-64005  (w/o water cooling)

X358064006 / X3580-64006  TwisTorr 304 FS  ISO-160, 3.6 m³/h scroll, 115V, 60Hz
X350064002 / X3500-64002  (w/ water cooling)
X350064006 / X3500-64006  (w/o water cooling)

X358064007 / X3580-64007  TwisTorr 304 FS  8" CF, 3.6 m³/h scroll, 115V, 60Hz
X350064003 / X3500-64003  (w/ water cooling)
X350064007 / X3500-64007  (w/o water cooling)

X358064014 / X3580-64014  TwisTorr 304 FS  ISO-100, 3.0 m³/h scroll, 230V, 50/60Hz
X350064000 / X3500-64000  (w/ water cooling)
X350064004 / X3500-64004  (w/o water cooling)
X350064010 / X3500-64010  (split flow KF-40 w/ water cooling)

X358064015 / X3580-64015  TwisTorr 304 FS  6" CF, 3.0 m³/h scroll, 230V, 50/60Hz
X350064001 / X3500-64001  (w/ water cooling)
X350064005 / X3500-64005  (w/o water cooling)

X358064016 / X3580-64016  TwisTorr 304 FS  ISO-160, 3.0 m³/h scroll, 230V, 50/60Hz
X350064002 / X3500-64002  (w/ water cooling)
X350064006 / X3500-64006  (w/o water cooling)

X358064017 / X3580-64017  TwisTorr 304 FS  8" CF, 3.0 m³/h scroll, 230V, 50/60Hz
X350064003 / X3500-64003  (w/ water cooling)
X350064007 / X3500-64007  (w/o water cooling)

X358064024 / X3580-64024  TwisTorr 304 FS  ISO-100, 3.6 m³/h scroll, 100V, 60Hz
X350064000 / X3500-64000  (w/ water cooling)
X350064004 / X3500-64004  (w/o water cooling)
X350064010 / X3500-64010  (split flow KF-40 w/ water cooling)

X358064025 / X3580-64025  TwisTorr 304 FS  6" CF, 3.6 m³/h scroll, 100V, 60Hz
X350064001 / X3500-64001  (w/ water cooling)
X350064005 / X3500-64005  (w/o water cooling)

X358064026 / X3580-64026  TwisTorr 304 FS  ISO-160, 3.6 m³/h scroll, 100V, 60Hz
X350064002 / X3500-64002  (w/ water cooling)
X350064006 / X3500-64006  (w/o water cooling)

X358064027 / X3580-64027  TwisTorr 304 FS  8" CF, 3.6 m³/h scroll, 100V, 60Hz
X350064003 / X3500-64003  (w/ water cooling)
X350064007 / X3500-64007  (w/o water cooling)
