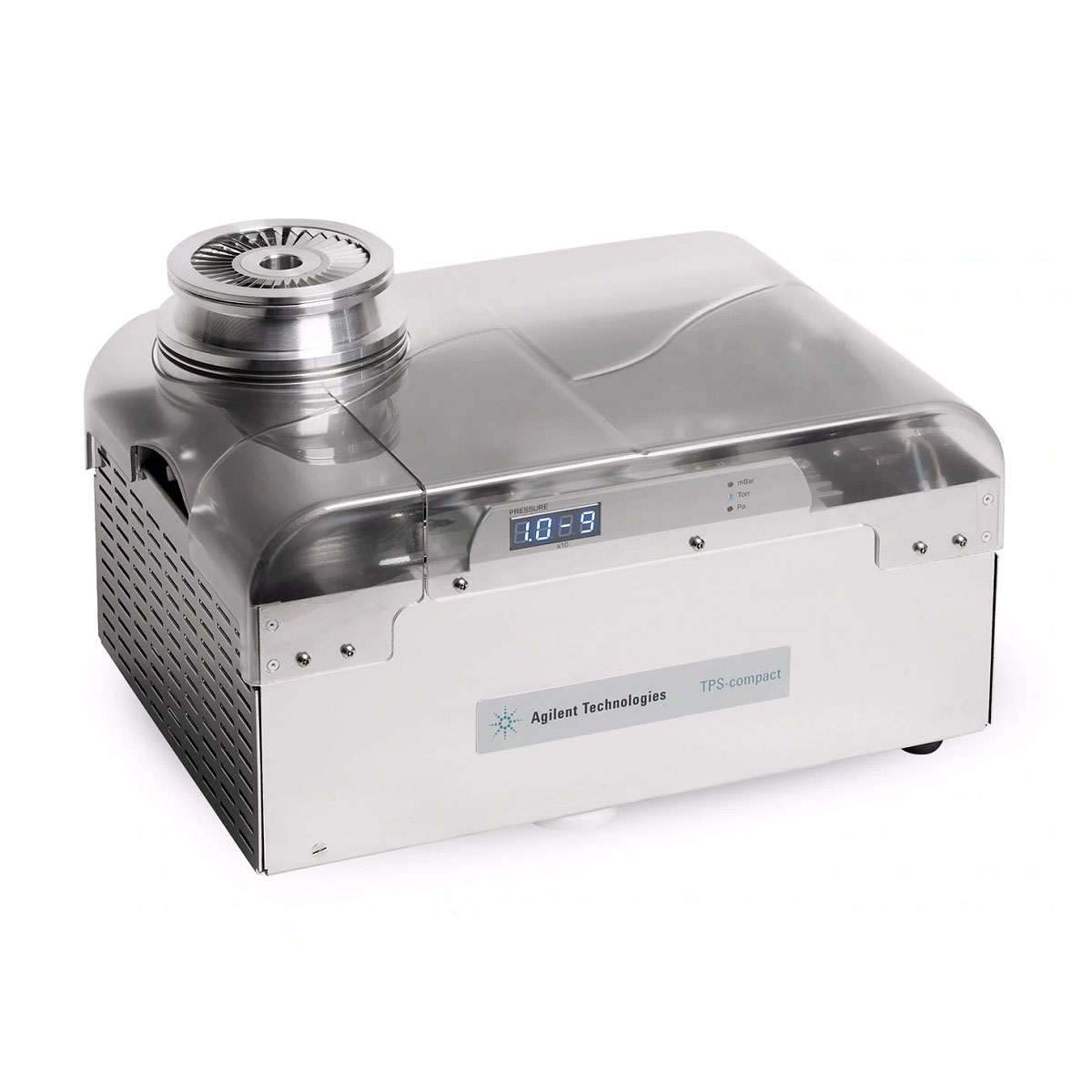

Agilent Varian TPS-compact - REBUILT
Call for Price
In stock
SKU
REBUILT_TPScompact
| Weight | 42 lbs |
|---|---|
| Pumping Speed | 77-250 l/s |
| Ultimate Pressure | 1 x 10-9 mbar |
Agilent Varian TPS-compact Turbomolecular Vacuum Pump System - REBUILT
A portable, fully Integrated, hydrocarbon-free pumping system powered by the Turbo-V 81 MacroTorr or Turbo-V 301 Navigator pumps, backed by the unique Agilent 60 l/min IDP-3 dry scroll, new generation primary pump. A cost-effective pumping solution with large pressure display, Active Gauge capability, voltage 110-220V, CE/CSA certified.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Turbo-V 81M | Turbo-V 301 | |
|---|---|---|
| Pumping speed | N2: 77 l/s | N2: 250 l/s |
| Base pressure** | 1 x 10-9 mbar (CFF flanges), 1 x 10-8 mbar (ISO flanges) | |
| Pumpdown time (15 lt volume) | 80 sec (100 mbar); 110 sec (1 mbar); 155 sec (1 x 10-4 mbar); 400 sec (5 x 10-5 mbar) | 80 sec (100 mbar); 110 sec (1 mbar); 155 sec (1 x 10-4 mbar); 230 sec (1 x 10-5 mbar) |
| Turbo pump rotational speed | 80,000 rpm | 56,000 rpm |
| Start-up time | 15 sec. | |
| Operating ambient temperature | 5°C to 35°C | |
| Input voltage and frequency | 115 VAC 60 Hz or 220-240 VAC 50 / 60 Hz | |
| Maximum input power | 260 VA | 310 VA |
| Bakeout temperature | 120°C at inlet (CFF flanges) - 80°C at inlet (KF/ISO flanges) | |
| Communication | RS232 - Analogical I/O | |
| Weight | 16.7 kg (36.8 lbs) | 19.1 kg (42.1 lbs) |
| Type | Label | Description | Download |
|---|---|---|---|
|
Agilent Varian TPS-compact - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian TPS-compact Turbomolecular Vacuum Pump System - REBUILT 9698217 / 969-8217 Turbo-V 81M KF-40 120V 9698225 / 969-8225 Turbo-V 81M KF-40 220V 9698218 / 969-8218 Turbo-V 81M 2.75" CF 120V 9698226 / 969-8226 Turbo-V 81M 2.75" CF 220V 9698219 / 969-8219 Turbo-V 81M ISO-63 120V 9698227 / 969-8227 Turbo-V 81M ISO-63 220V 9698220 / 969-8220 Turbo-V 81M 4.5" CF 120V 9698228 / 969-8228 Turbo-V 81M 4.5" CF 220V 9698221 / 969-8221 Turbo-V 301 ISO-100 120V 9698229 / 969-8229 Turbo-V 301 ISO-100 220V 9698222 / 969-8222 Turbo-V 301 6" CF 120V 9698230 / 969-8230 Turbo-V 301 6" CF 220V 9698223 / 969-8223 Turbo-V 301 ISO-160 120V 9698231 / 969-8231 Turbo-V 301 ISO-160 220V 9698224 / 969-8224 Turbo-V 301 8" CF 120V 9698232 / 969-8232 Turbo-V 301 8" CF 220V TPS-mobile 9698420 / 969-8420 Turbo-V 81M ISO-63 DS-42 110V 9698421 / 969-8421 Turbo-V 81M ISO-63 DS-102 110V 9698422 / 969-8422 Turbo-V 81M ISO-63 IDP-3 110V 9698423 / 969-8423 Turbo-V 81M ISO-63 SH-110 110V 9698424 / 969-8424 Turbo-V 301 ISO-100 DS-102 110V 9698425 / 969-8425 Turbo-V 301 ISO-100 DS-302 110V 9698426 / 969-8426 Turbo-V 301 ISO-100 DS-402 110V 9698427 / 969-8427 Turbo-V 301 ISO-100 IDP-3 110V 9698428 / 969-8428 Turbo-V 301 ISO-100 SH-110 110V 9698429 / 969-8429 Turbo-V 301 ISO-100 TS-300VPI 110V 9698439 / 969-8439 Turbo-V 750 8" CF DS-302 110V 9698440 / 969-8440 Turbo-V 750 8" CF DS-402 110V 9698441 / 969-8441 Turbo-V 750 8" CF TS-300VPI 110V 9698442 / 969-8442 Turbo-V 750 8" CF TS-600VPI 110V 9698413 / 969-8413 Turbo-V 81M ISO-63 DS-42 220V 9698411 / 969-8411 Turbo-V 81M ISO-63 DS-102 220V 9698416 / 969-8416 Turbo-V 81M ISO-63 IDP-3 220V 9698412 / 969-8412 Turbo-V 81M ISO-63 SH-110 220V 9698403 / 969-8403 Turbo-V 301 ISO-100 DS-102 220V 9698400 / 969-8400 Turbo-V 301 ISO-100 DS-302 220V 9698417 / 969-8417 Turbo-V 301 ISO-100 DS-402 220V 9698418 / 969-8418 Turbo-V 301 ISO-100 IDP-3 220V 9698402 / 969-8402 Turbo-V 301 ISO-100 SH-110 220V 9698401 / 969-8401 Turbo-V 301 ISO-100 TS-300VPI 220V 9698435 / 969-8435 Turbo-V 750 8" CF DS-302 220V 9698436 / 969-8436 Turbo-V 750 8" CF DS-402 220V 9698437 / 969-8437 Turbo-V 750 8" CF TS-300VPI 220V 9698438 / 969-8438 Turbo-V 750 8" CF TS-600VPI 220V TPS-bench 9698212 / 969-8212 Turbo-V 301 ISO-100 SH-110 110V 9698213 / 969-8213 Turbo-V 301 ISO-100 DS-102 110V 9698214 / 969-8214 Turbo-V 81M ISO-63 DS-102 110V 9698215 / 969-8215 Turbo-V 81M ISO-63 SH-110 110V 9698216 / 969-8216 Turbo-V 81M ISO-63 DS-42 110V 9698203 / 969-8203 Turbo-V 301 ISO-100 SH-110 220V 9698208 / 969-8208 Turbo-V 301 ISO-100 DS-102 220V 9698204 / 969-8204 Turbo-V 81M ISO-63 DS-102 220V 9698202 / 969-8202 Turbo-V 81M ISO-63 SH-110 220V 9698200 / 969-8200 Turbo-V 81M ISO-63 DS-42 220V
