Agilent TPS-mobile - NEW

Name: Agilent TPS-mobile - NEW
Brand: Agilent Varian
SKU: NEW_TPS-mobile

Be the first to review this product

In stock

Only %1 left

SKU

NEW_TPS-mobile

Request For Quote

Weight	200 lbs
Pumping Speed	48 l/s
Ultimate Pressure	< 5 x 10^-10 mbar

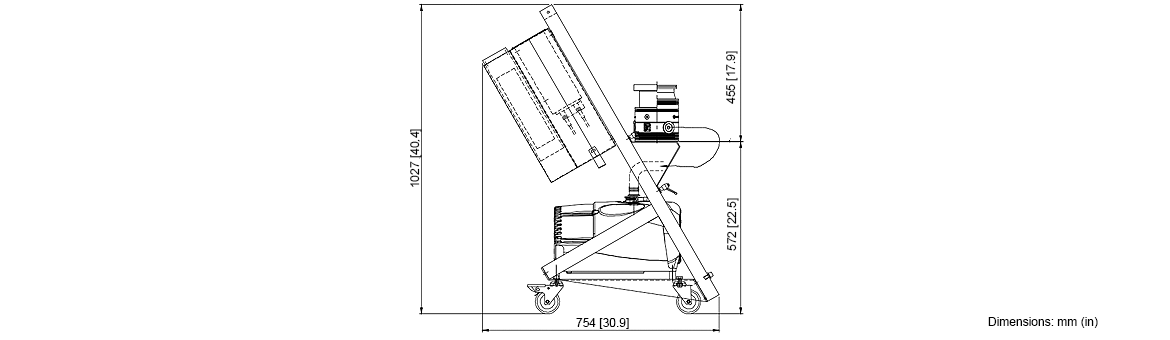

Dimensions

Description

Agilent TPS-mobile Turbomolecular Vacuum Pumping System - NEW

The TPS-mobile is a customizable, high-capacity pumping system on the smallest footprint roll-around cart. Choose from more than 400 possible configurations consisting of small- and medium-sized TwisTorr turbomolecular pumps with pumping speeds from 70–700 l/s and backed by either an IDP or TriScroll dry scroll pump with 3–30 m³/hr pumping speed or DS rotary vane pumps with 6–30 m³/hr pumping speed.

The TPS-mobile is an optimum solution when pumping out larger systems and needing to maintain maximum mobility. Add the right gauge selection to monitor system pressure.

Mobility: Roll-around cart helps you move your vacuum station right where you need it
Flexibility: Easily detachable turbo pump can be quickly mounted in any orientation on the vacuum chamber
Customization: Build your ideal system, choosing from 400+ configurations based on your specific requirements
Onboard gauge reading function to display system pressure
Ready for Vacuum Link app to give full pump control through your mobile phone
Serviceability: Easy and fast field replacement of single components provided with Agilent Advanced Exchange Service
Analog I/O provides accurate control of the system and pressure-driven setpoints
Wide Range of turbo pump options between 70 to 700 l/s and dry or wet backing pumps from 3 to 30 m³/h
Serial RS232 communication protocol with A-plus software enables pump operation, control, and recording of system parameters (i.e., pressure)

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

	TwisTorr 74 FS KF 40, ISO 63, CFF 2¾”, CFF 4½”	TwisTorr 304 FS ISO 100, CFF 6”, ISO 160, CFF 8”	Turbo-V 551 Navigator CFF 6”, ISO 160, CFF 8”
Pumping Speed *	N₂: 48 l/s (w/ inlet screen)*	N₂: 180 l/s (w/ inlet screen)*	N₂: 550 l/s (w/ inlet screen)
Base pressure w/ IDP-7 dry scroll or DS102 rotary vane pump	< 5 x 10^-10 mbar (< 3.75 x 10^-10 Torr)	< 1.0 x 10^-10 mbar (< 7.5 x 10^-11 Torr)	< 1.0 x 10^-10 mbar (< 7.5 x 10^-11 Torr)

* Pump nominal speed: TwisTorr 74 FS N₂: 60 l/s; Twistorr 304 FS N₂: 250 l/s.

	TPS-mobile w/ TwisTorr 74 FS ISO 63 & IDP-7	TPS-mobile w/ TwisTorr 304 FS ISO 100 & IDP-7
Pumpdown Time (15 liter volume)	34 sec (100 mbar) 76 sec (1 mbar) 120 sec (1 x 10^-4 mbar) 160 sec (5 x 10^-5 mbar) 400 sec (1 x 10^-5 mbar)	40 sec (50 mbar) 60 sec (8 mbar) 80 sec (7 x 10^-1 mbar) 100 sec (1 x 10^-4 mbar) 130 sec (1 x 10^-5 mbar)

Specifications

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent TPS-mobile Turbomolecular Vacuum Pump System - NEW

9698412 / 969-8412  TwisTorr 84 FS  ISO-63 SH-110
9698416 / 969-8416  TwisTorr 84 FS  ISO-63 IDP-3
9698411 / 969-8411  TwisTorr 84 FS  ISO-63 DS-102
9698413 / 969-8413  TwisTorr 84 FS  ISO-63 DS-42
9698423 / 969-8423  TwisTorr 84 FS  ISO-63 SH-110
9698422 / 969-8422  TwisTorr 84 FS  ISO-63 IDP-3
9698421 / 969-8421  TwisTorr 84 FS  ISO-63 DS-102
9698420 / 969-8420  TwisTorr 84 FS  ISO-63 DS-42

9698406 / 969-8406  Turbo-V 551  8" CFF TS-600
9698404 / 969-8404  Turbo-V 551  8" CFF TS-300
9698419 / 969-8419  Turbo-V 551  8" CFF DS-402
9698405 / 969-8405  Turbo-V 551  8" CFF DS-302
9698433 / 969-8433  Turbo-V 551  8" CFF TS-600
9698432 / 969-8432  Turbo-V 551  8" CFF TS-300
9698431 / 969-8431  Turbo-V 551  8" CFF DS-402
9698430 / 969-8430  Turbo-V 551  8" CFF DS-302

9698401 / 969-8401  TwisTorr 304 FS  ISO-100 TS-300VPI
9698402 / 969-8402  TwisTorr 304 FS  ISO-100 SH-110
9698418 / 969-8418  TwisTorr 304 FS  ISO-100 IDP-3
9698417 / 969-8417  TwisTorr 304 FS  ISO-100 DS-402
9698400 / 969-8400  TwisTorr 304 FS  ISO-100 DS-302
9698403 / 969-8403  TwisTorr 304 FS  ISO-100 DS-102
9698429 / 969-8429  TwisTorr 304 FS  ISO-100 TS-300VPI
9698428 / 969-8428  TwisTorr 304 FS  ISO-100 SH-110
9698427 / 969-8427  TwisTorr 304 FS  ISO-100 IDP-3
9698426 / 969-8426  TwisTorr 304 FS  ISO-100 DS-402
9698425 / 969-8425  TwisTorr 304 FS  ISO-100 DS-302
9698424 / 969-8424  TwisTorr 304 FS  ISO-100 DS-102

TPS-mobile
Models: 9698400, 9698402, 9698404, 9698406, 9698412, 9698416, 9698418, 9698422, 9698424, 9698426, 9698428, 9698430, 9698432, 9698401, 9698403, 9698405, 9698411, 9698417, 9698419, 9698421, 9698423, 9698425, 9698427, 9698429, 9698431, 9698433
