Agilent AX 65 - NEW

Name: Agilent AX 65 - NEW
Brand: Agilent Varian
SKU: NEW_AX 65

Be the first to review this product

Call for Price

In stock

Only %1 left

SKU

NEW_AX 65

Request For Quote

Weight	8 lbs
Pumping Speed	138 cfm
Ultimate Pressure	3 x 10^-3 to <5 x 10^-8 Torr

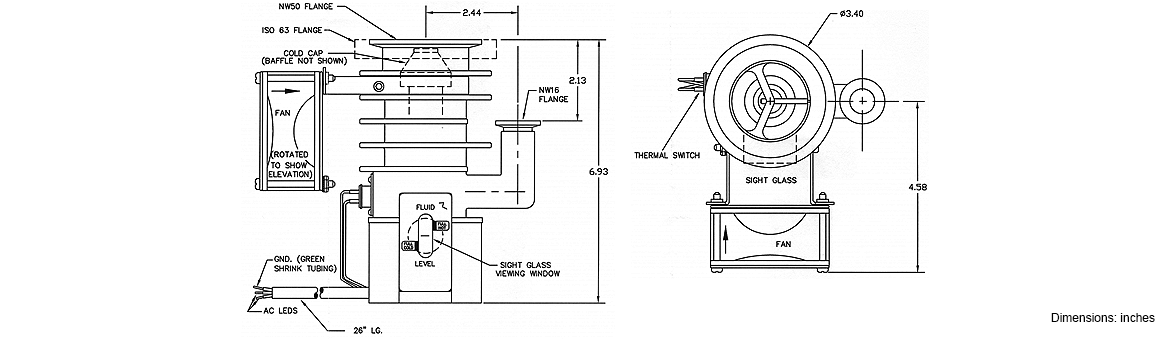

Dimensions

Description

Agilent Varian AX 65 - NEW

The Agilent AX-65 Oil diffusion pump is the smallest diffusion pump available in the market and the only pump that is air-cooled. Its vertical finned boiler and high power provide stable pumping and high helium pumping speed. This pump can be ordered with a cold cap or a dense baffle. The pump includes a fluid-level sight glass that indicates the fluid level at all times.

This pump is a perfect fit for instrumentation applications such as Gas Chromatography Mass Spectrometry (GCMS) and centrifuges.

High performance specifications means higher, cleaner vacuum levels
Fluid-level sight glass provides quick indication of pump fluid status at all times
The wide range of available pump configuration and flange combinations optimizes pump performance and fit for your application
Compact design makes integration into space-limited equipment easy
Full thermal protection guards against all over-temperature conditions
Optional 'pump-ready' thermal switch indicates when pump is operational
Finned, vertical boiler promotes stable pumping, especially of light gases
Three-stage jet with ejector stage purifies pumping fluid and gives higher forepressure tolerance
Fast warmup and cool down: 7 minute warmup time and 10 minute cool down time
Air cooling system simplifies utility requirements

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Backstreaming Rate	2 x 10^-4 mg/cm²/min
Cooldown Time	10 min
Electrical Requirements	1 ph 50/60 Hz 90/115/165/220 V
Fluid Charge	30 CC
Fluid Type	Oil
Input Voltage	90, 115, 165, 220 V
Maximum Forepressure - Full Load	0.60 Torr 0.78 mbar
Maximum Forepressure - No Load	0.75 Torr 1.00 mbar
Maximum Throughput	0.19 T-l/s (0.25 mbar-l/s)
Operating Range	3.9 x 10^-3 to 6.5 x 10^-8 mbar 3 x 10^-3 to <5 x 10^-8 Torr
Pump Weight	8 lbs 3.63 kg
Pumping Speed - Air	65 l/s
Pumping Speed - He/H2	90 l/s
Recommended Backing Pump	≥ 0.15 cfm (0.25 m³/hr)
Warmup Time	7 min

Specifications

Digital Manuals

Type	Label	Description	Download
	Agilent AX-65 - NEW	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent Varian AX 65 - NEW

L9670306 Pump, diffusion, AX-65, NW50, cold cap, 165 V, 250 W
L9670305 Pump, diffusion, AX-65, NW50, cold cap, 90 V, 250 W
L9670316 Pump, diffusion, AX-65, NW50, baffle, 165 V, 250 W
L9670315 Pump, diffusion, AX-65, NW50, baffle, 90 V, 250 W
L9670304 Pump, diffusion, AX-65, NW50, cold cap, 220 V, 200 W
L9670303 Pump, diffusion, AX-65, NW50, cold cap, 115 V, 200 W
L9670314 Pump, diffusion, AX-65, NW50, baffle, 220 V, 200 W
L9670302 Pump, diffusion, AX-65, NW50, cold cap, 220 V, 250 W
L9670313 Pump, diffusion, AX-65, NW50, baffle, 115 V, 200 W
L9670301 Pump, diffusion, AX-65, NW50, cold cap, 115 V, 250 W
L9670312 Pump, diffusion, AX-65, NW50, baffle, 220 V, 250 W
L9670311 Pump, diffusion, AX-65, NW50, baffle, 115 V, 250 W
