Agilent HS 2 - NEW

Name: Agilent HS 2 - NEW
Brand: Agilent Varian
SKU: NEW_HS2

Be the first to review this product

In stock

Only %1 left

SKU

NEW_HS2

Request For Quote

Weight	10 lbs
Pumping Speed	339 cfm
Ultimate Pressure	3.7 x 10^-3 to <5 x 10^-8 Torr

Dimensions

Description

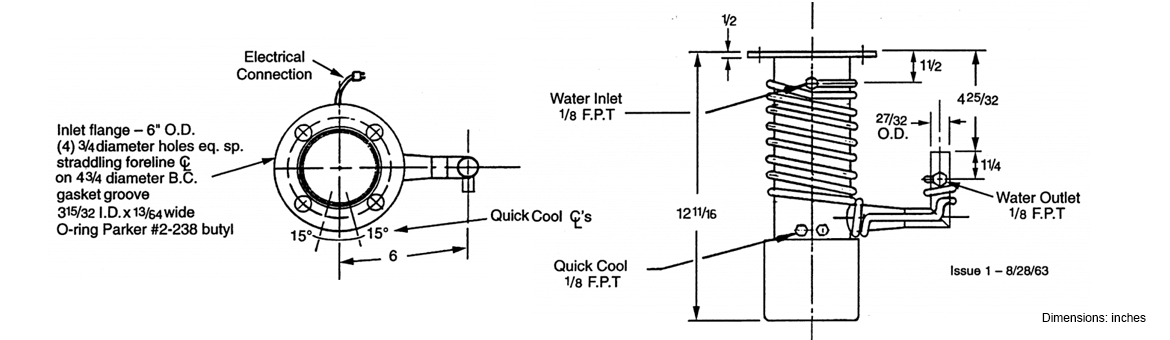

Agilent HS 2 Oil Diffusion High Vacuum Pump - NEW

The Agilent HS-2 is a oil diffusion pump with high throughput and high pumping speed of 160 l/s air, 200 l/s He, H₂. With its fully optimized vapor jet and the robust boiler design, the pump will run without any maintenance for many years. It is available with an ASA inlet flange and with 120V or 240V. This pump is a perfect fit for instrumentation applications such as Gas Chromatography Mass Spectrometry (GCMS) and centrifuges.

High pumping performance in a compact package
Fractionating jet purifies pumping fluid
High tolerable forepressure
Stainless steel jet and pump body
Standard quick-cool fluid
Finned boiler increases surface area, prolonging pumping fluid life
Foreline baffle prevents pumping fluid loss into backing system
Pumping speed: 160 l/s, Maximum Throughput: 0.60 Torr l/s
Operating range: 3.7 x 10^-3 to 5 x 10^-8 Torr
15 minute warmup time and 10 minute cooldown time

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification


Backstreaming Rate	1 x 10^-3 mg/cm²/min
Cooldown Time	10 min
Electrical Requirements	1 ph 50/60 Hz 120/240 V
Fluid Charge	100 CC
Fluid Type	Oil
Input Voltage	120, 240 V
Maximum Forepressure - Full Load	0.40 Torr 0.52 mbar
Maximum Forepressure - No Load	0.55 Torr 0.75 mbar
Maximum Throughput	0.60 T-L/s (0.80 mbar-L/s)
Operating Range	3.7 x 10^-3 to < 5 x 10^-8 Torr 4.9 x 10^-3 to < 6.5 10^-8 mbar
Pump Power	450 W
Pump Weight	10 lbs 4.54 kg
Pumping Speed - Air	160 L/s
Pumping Speed - Air, via AVS 4.1 (1963)	285 L/s
Pumping Speed - He/H2	200 L/s
Recommended Backing Pump	≥ 5.0 cfm (8.5 m³/hr)
Warmup Time	15 min
Water Connections	1/8 inch FPT
Water Cooling - Temperature Requirement	60-80 °F 15-26 °C
Water Cooling Flow Requirement	0.1 gpm 20 L/hr

Specifications

Digital Manuals

Type	Label	Description	Download
	Agilent HS-2 - NEW	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent HS 2 Oil Diffusion High Vacuum Pump - NEW

82906301 HS-2 diffusion pump, with standard cold cap, 120 V, ASA flange
82906302 HS-2 diffusion pump, with standard cold cap, 240 V, ASA flange
