Agilent HS 16 - NEW
Weight
500 lbs
Pumping Speed
12,713 cfm
Ultimate Pressure
2 x 10-3 to < 5 x 10-8 Torr

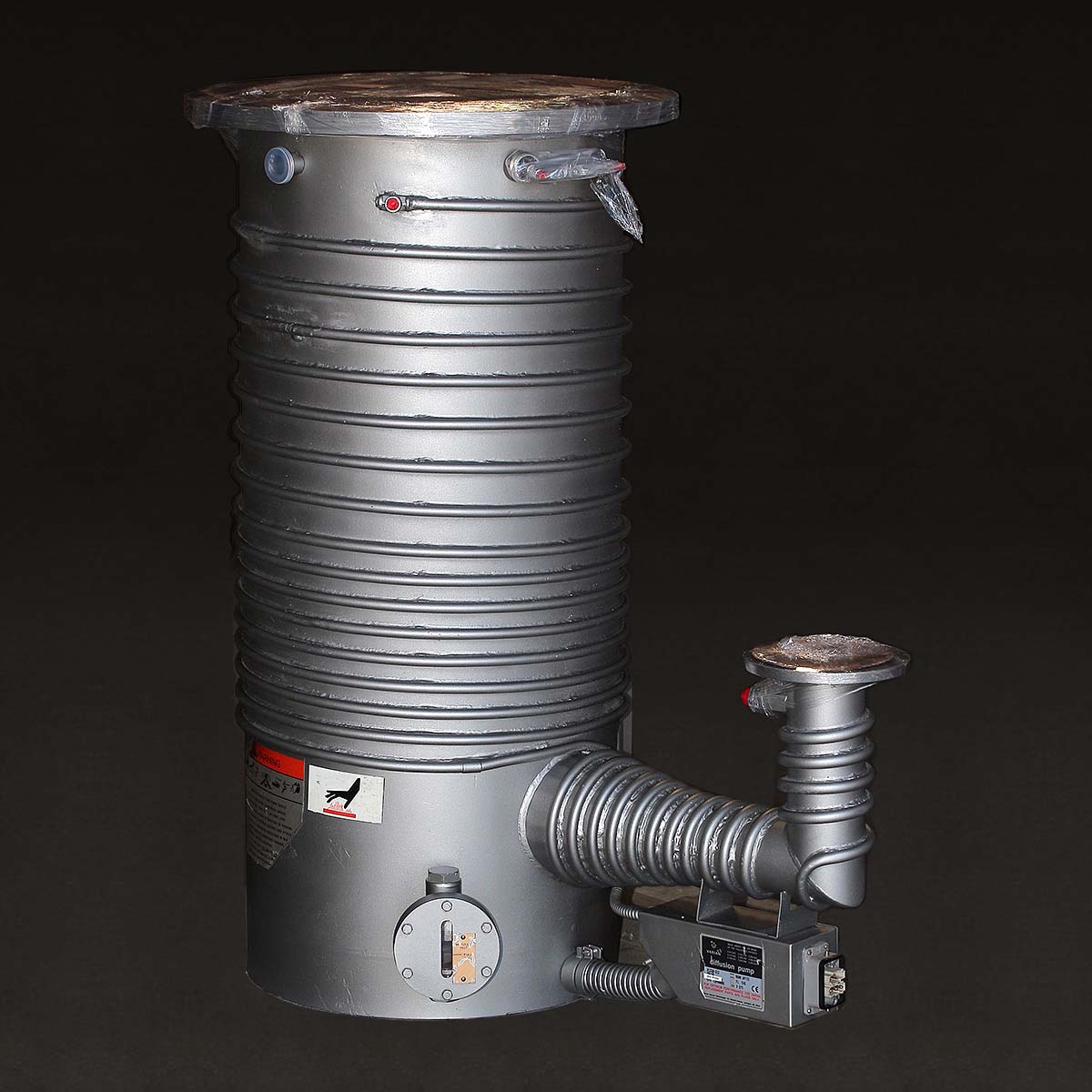

Agilent HS-16 Oil Diffusion High Vacuum Pump - NEW
The Agilent HS-16 is a oil diffusion pump with high throughput and high pumping speed of 6,000 l/s. With its fully optimized vapor jet, the robust boiler design and the thermal protection switches the pump will run without any maintenance for many years. It is available with 16 in. ASA or ISO 500K inlet flange. This pump is a perfect fit for industrial applications such as vacuum furnace, heat treatment, metallizing, and coating processes for optical lenses, electronics and protective film layers.

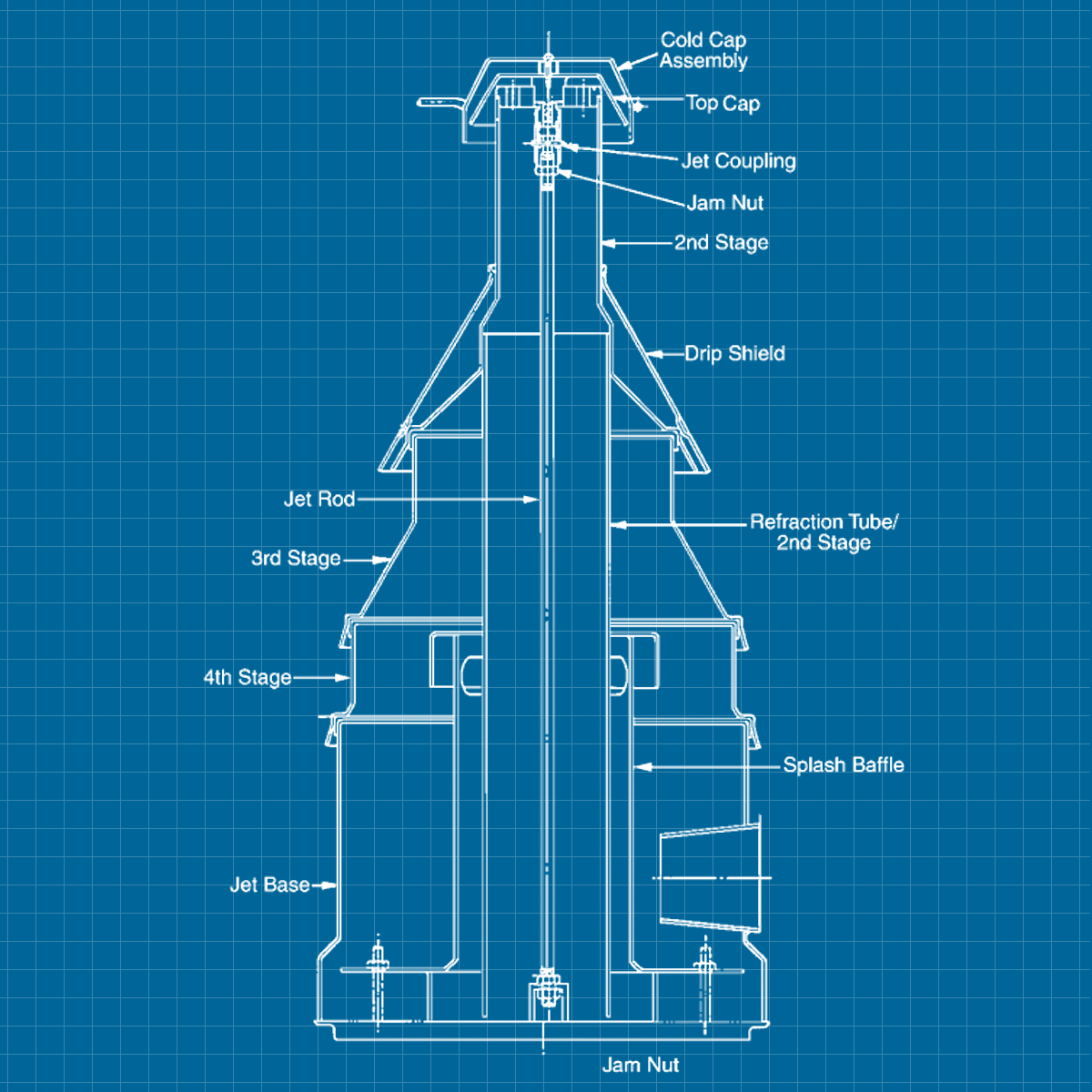

Five-stage fractionating jet purifies pumping fluid
High throughput, 9,600-watt version available
High tolerable forepressure
Full thermal protection
Fill and drain assembly for pump oil
Fluid-level sight glass provides quick indication of pump fluid status at all times
Standard gauge port (NW-25) below inlet flange included
Foreline baffle prevents loss of fluid into backing pump system
Optional halo baffle reduces bac
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
Backstreaming Rate
Cooldown Time
Electrical Requirements
3 ph
50/60 Hz
240/415/480 V
Fluid Charge
Fluid Type
Input Voltage
Maximum Forepressure - Full Load
Maximum Forepressure - No Load
Maximum Throughput
9.5 T-L/s (11.7 mbar-L/s) at 8100 W
Operating Range
2 x 10-3 to <5 x 10-8 Torr
1.3 x 10-3 to <6.5 x 10-8 mbar
Pump Weight
Pumping Speed - Air
Pumping Speed - Air, via AVS 4.1 (1963)
Pumping Speed - He/H2
Recommended Backing Pump
Warmup Time
Water Connections
Water Cooling - Temperature Requirement
Water Cooling Flow Requirement
Specifications
Type
Label
Description
Download
Agilent HS & NHS Series - NEW
Instruction Manual
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent HS-16 Oil Diffusion High Vacuum Pump - NEW
79292308 / 79292-308 ASA w/ standard cold cap 240V
79292318 / 79292-318 ASA w/ halo baffle 240V
79292326 / 79292-326 ASA w/ standard cold cap 415V
79292336 / 79292-336 ASA w/ halo baffle 415V
79292319 / 79292-319 ASA w/ standard cold cap 480V
79292319 / 79292-319 ASA w/ halo baffle 480V
L5921308 / L5921-308 ISO w/ standard cold cap 240V
L5921318 / L5921-318 ISO w/ halo baffle 240V
L5921326 / L5921-326 ISO w/ standard cold cap 415V
L5921336 / L5921-336 ISO w/ halo baffle 415V
L5921309 / L5921-309 ISO w/ standard cold cap 480V
L5921319 / L5921-319 ISO w/ halo baffle 480V
