Agilent Varian HS-16 - REBUILT

Name: Agilent Varian HS-16 - REBUILT
Brand: Agilent Varian
SKU: REBUILT_HS16

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_HS16

Request For Quote

Weight	500 lbs
Pumping Speed	12,713 cfm
Ultimate Pressure	8.60 x 10^-1 mbar

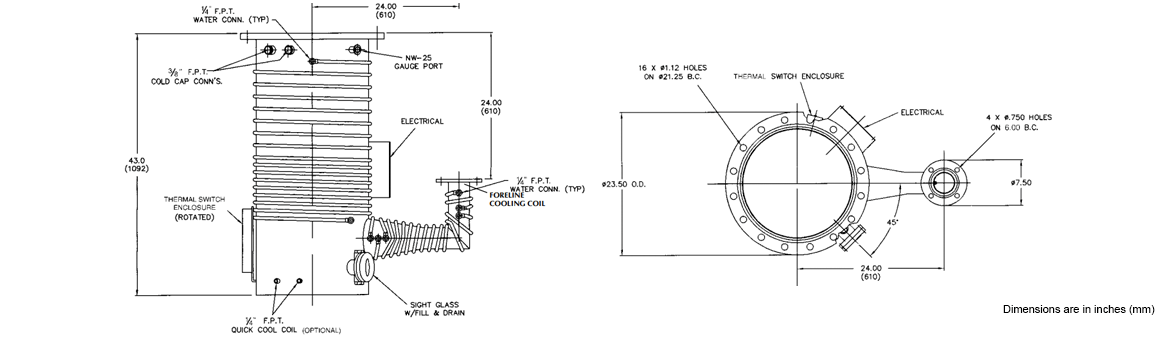

Dimensions

Description

Agilent Varian HS-16 Diffusion High Vacuum Pump - REBUILT

The HS-16 diffusion pump comes with full thermal protection and quick-cool coils, and with sight glass/fill and drain assemblies. We also carry Agilent Varian diffusion pump LN₂ traps and baffles and valves.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Backstreaming Rate 1.5 x 10^-3 mg/cm²/min Cooldown Time 30 min Electrical Requirements 3-phase 50/60 Hz 240/415/480 V Fluid Charge 2,839 CC Fluid Type Oil Input Voltage 240, 415, 480 V Maximum Forepressure - Full Load 0.55 Torr / 0.72 mbar Maximum Forepressure - No Load 0.65 Torr / 0.85 mbar Maximum Throughput 9.5 T-L/s (11.7 mbar-L/s) at 8,100 W Operating Range 2 x 10^-3 to <5 x 10^-8 Torr
1.3 x 10^-3 to <6.5 x 10^-8 mbar Pump Weight 500 lbs / 227 kg Pumping Speed - Air 6,000 L/s Pumping Speed - Air, via AVS 4.1 (1963) 10,000 L/s Pumping Speed - He/H2 7,500 L/s Recommended Backing Pump ≥ 80 cfm (136 m³/hr) Warmup Time 30 min Water Connections 1/4 inch FPT Water Cooling - Temperature Requirement 60-80°F / 15-26°C Water Cooling Flow Requirement 1.5 gpm / 300 L/hr

Digital Manuals

Type	Label	Description	Download
	Varian HS & NHS Series - REBUILT	Instruction Manual	Download
	Varian Diffusion Pumps - REBUILT	Data Sheet	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent Varian HS-16 Vacuum Diffusion Pump - REBUILT

Type No. 0164

79292308 / 79292-308  ASA w/ standard cold cap 240V
79292318 / 79292-318  ASA w/ halo baffle 240V
79292326 / 79292-326  ASA w/ standard cold cap 415V
79292336 / 79292-336  ASA w/ halo baffle 415V
79292319 / 79292-319  ASA w/ standard cold cap 480V
79292319 / 79292-319  ASA w/ halo baffle 480V
L5921308 / L5921-308  ISO w/ standard cold cap 240V
L5921318 / L5921-318  ISO w/ halo baffle 240V
L5921326 / L5921-326  ISO w/ standard cold cap 415V
L5921336 / L5921-336  ISO w/ halo baffle 415V
L5921309 / L5921-309  ISO w/ standard cold cap 480V
L5921319 / L5921-319  ISO w/ halo baffle 480V
