Agilent DS 102 - NEW
| Weight | 48 lbs |
|---|---|
| Motor Power | 0.5 hp |
| Pumping Speed | 5 m3/h |
| Ultimate Pressure | 2 x 10-3 mbar |

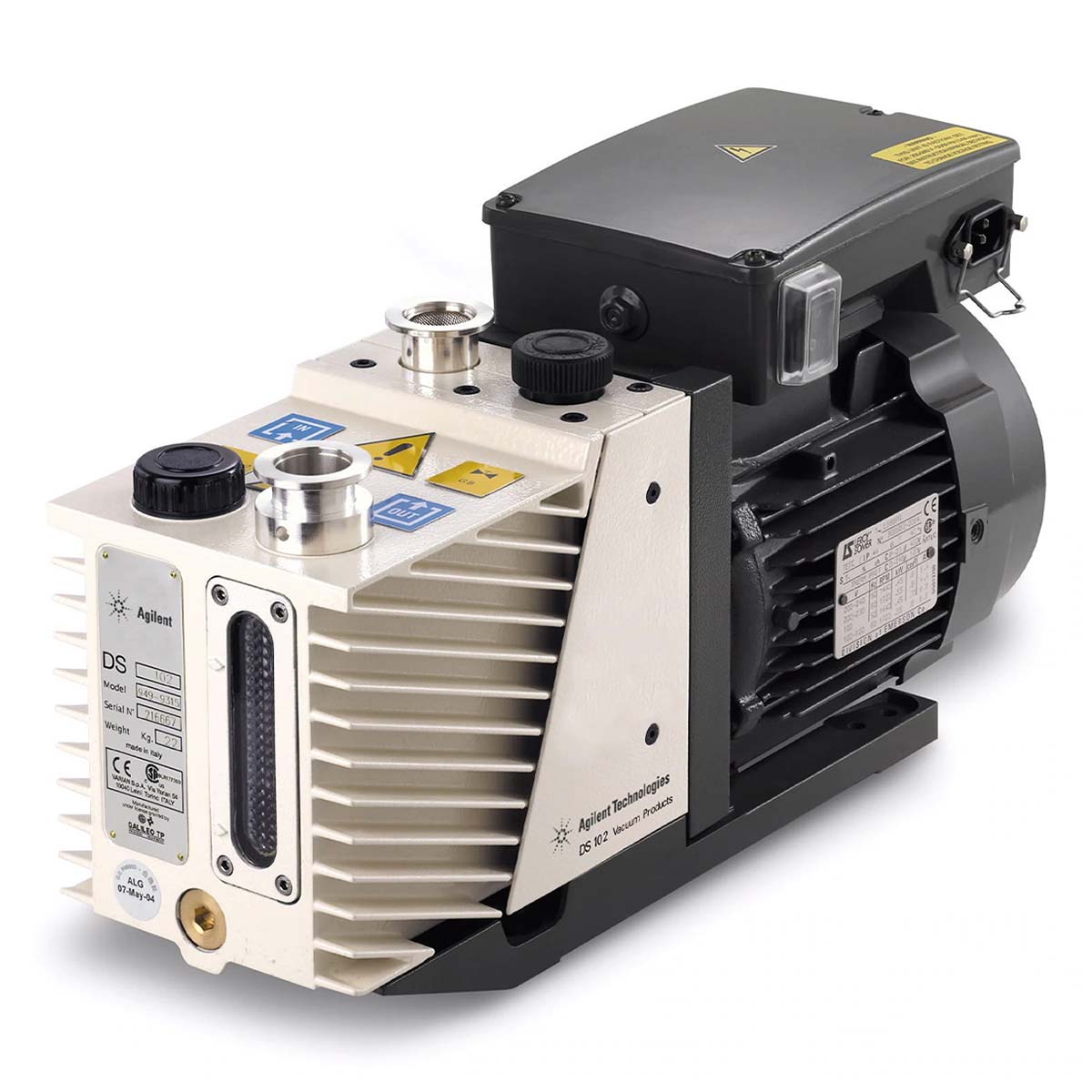

Agilent Varian DS 102 Rotary Vane Vacuum Pump - NEW
Thanks to a very simple and highly reliable design, these field-proven rotary vane pumps provide excellent vacuum performance. Agilent’s quality and manufacturing standards ensure that the DS Rotary Vane Pumps provide high pumping stability for light gases, low noise, minimal oil backstreaming, and a long operating life. The pump’s two-stage design allows for low operating temperature, minimal backstreaming at low pressure and good pumping efficiency and gas ballast in the low 10-2 mbar region. DS Rotary Vane Pumps conform to European Union directives (CE) and Restriction of Hazardous Substances (RoHS) requirements, and all pumps are UL and Canadian Standards Authority (CSA) approved
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Free air displacement | 50 Hz: 95 l/min (5.7 m3/h) | 60 Hz: 114 l/min (4 cfm) |
| Pumping speed | 50 Hz: 5 m3/h | 60 Hz: 3.5 m3/h |
| Ultimate partial pressure | 10-4 mbar | |
| Ultimate total pressure | 2 x 10-3 mbar | |
| Ultimate total pressure w/ gas ballast | 2 x 10-2 mbar | |
| Water vapor tolerance | 15 mbar | |
| Water vapor capacity | 60 g/h | |
| Oil capacity, min/max | 0.2/0.5 l | |
| Motor rating 1-phase | 50 Hz: 0.45 kW | 60 Hz: 0.55 kW |
| Nominal rotational speed | 50 Hz: 1,500 rpm | 60 Hz: 1,800 rpm |
| Weight (kg/lbs) | 22/48 | |
| Inlet | 25KF DN | |
| Outlet | 25KF DN |
| Type | Label | Description | Download |
|---|---|---|---|
|
Agilent DS Series - NEW | User Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian DS 102 Rotary Vane Vacuum Pump - NEW 9499315 / 949-9315 DS 102 single-phase worldwide motor
