Agilent Varian DS 102 - REBUILT
Call for Price
In stock
SKU
REBUILT_DS102
| Weight | 48 lbs |
|---|---|
| Pumping Speed | 4 cfm |
| Ultimate Pressure | 2 x 10-3 mbar |

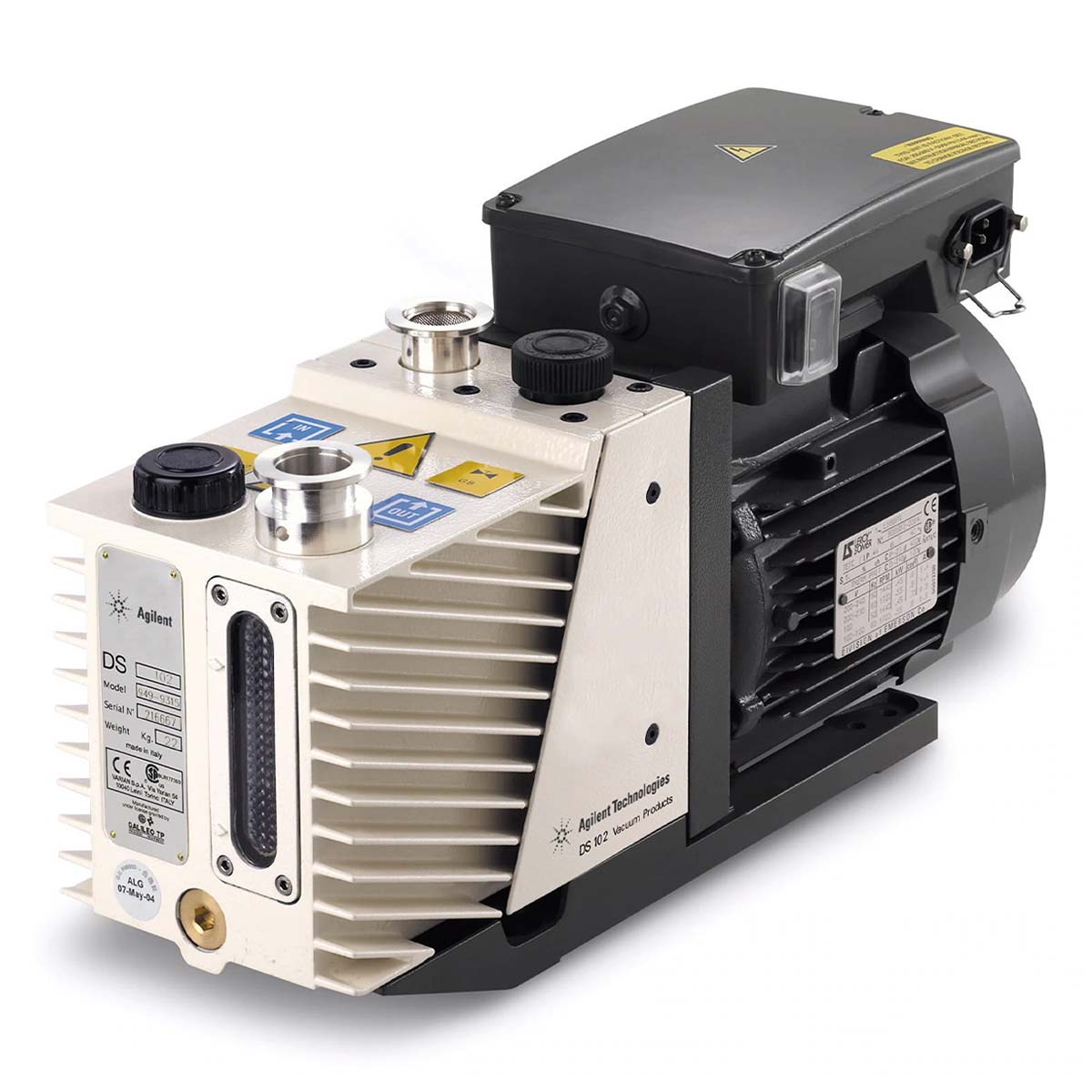

Agilent Varian DS 102 Rotary Vane Vacuum Pump - REBUILT
The Agilent Varian two stage, direct drive, rotary vane mechanical pump incorporates hardened steel rotors, positively lubricated and frictionless hydrodynamic bearings, and stainless steel vane springs and filters. The spring loaded vanes do not rely on centrifugal force for sealing. An anti suckback valve with its integral rubber seal prevents oil from migrating back into the vacuum system should the motor be stopped inadvertently.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Free air displacement | 50 Hz: 95 l/min (5.7 m3/h) | 60 Hz: 114 l/min (4 cfm) |
| Pumping speed | 50 Hz: 5 m3/h | 60 Hz: 3.5 m3/h |
| Ultimate partial pressure | 10-4 mbar | |
| Ultimate total pressure | 2 x 10-3 mbar | |
| Ultimate total pressure w/ gas ballast | 2 x 10-2 mbar | |
| Water vapor tolerance | 15 mbar | |
| Water vapor capacity | 60 g/h | |
| Oil capacity, min/max | 0.2/0.5 l | |
| Motor rating 1-phase | 50 Hz: 0.45 kW | 60 Hz: 0.55 kW |
| Nominal rotational speed | 50 Hz: 1,500 rpm | 60 Hz: 1,800 rpm |
| Weight (kg/lbs) | 22/48 | |
| Inlet | 25KF DN | |
| Outlet | 25KF DN |
| Type | Label | Description | Download |
|---|---|---|---|
|
Varian DS Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian DS 102 Rotary Vane Vacuum Pump - REBUILT 9499315 / 949-9315 DS 102 single-phase worldwide motor
