Agilent Varian HS-20 - REBUILT
Call for Price
In stock
SKU
REBUILT_HS20
| Weight | 600 lbs |
|---|---|
| Pumping Speed | 21,189 cfm |
| Ultimate Pressure | 1.3 × 10-3 to 5 × 10-8 Torr |

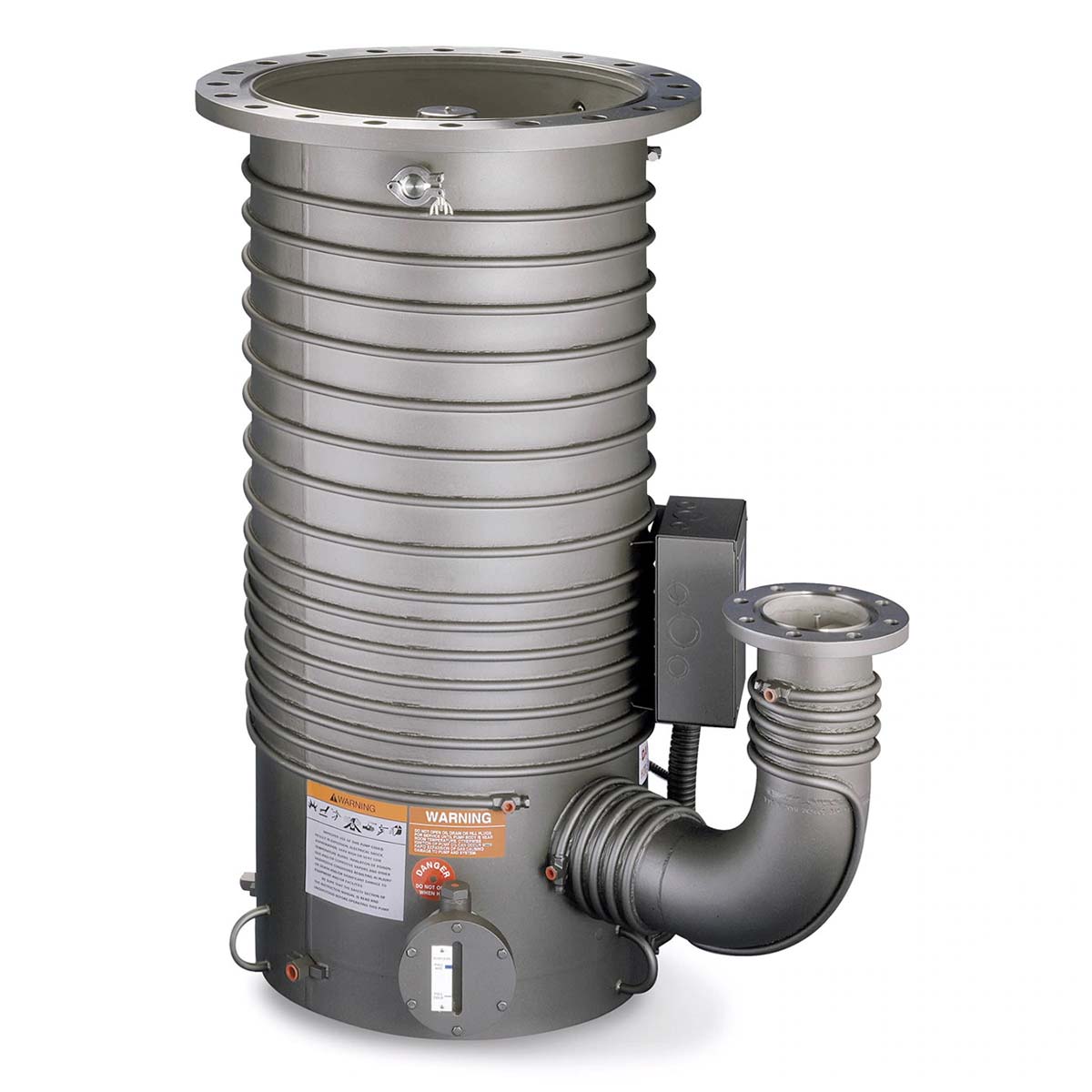

Agilent Varian HS-20 Diffusion High Vacuum Pump - REBUILT (0165)
The HS-20 diffusion pump comes with full thermal protection and quick-cool coils, and with sight glass/fill and drain assemblies. We also carry Agilent Varian diffusion pump LN2 traps and baffles and valves.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Backstreaming Rate | 1.5 x 10-3 mg/cm²/min |
| Cooldown Time | 45 min |
| Electrical Requirements | 3-phase, 50/60 Hz, 240/415/480 V |
| Fluid Charge | 18,927 CC |
| Fluid Type | Oil |
| Input Voltage | 240, 415, 480 V |
| Maximum Forepressure - Full Load | 0.55 Torr (0.72 mbar) |
| Maximum Forepressure - No Load | 0.65 Torr (0.85 mbar) |
| Maximum Throughput | 12.5 T-L/s (16.7 mbar-L/s) |
| Operating Range | 1.3 x 10-3 to 5 x 10-8 Torr 1.7 x 10-3 to 6.5 x 10-8 mbar |
| Pump Power | 12,000 W |
| Pump Weight | 600 lbs (272.2 kg) |
| Pumping Speed - Air | 10,000 L/s |
| Pumping Speed - Air, via AVS 4.1 (1963) | 17,500 L/s |
| Pumping Speed - He/H2 | 12,500 L/s |
| Recommended Backing Pump | ≥ 100 cfm (170 m3/hr) |
| Warmup Time | 45 min |
| Water Connections | 1/4 inch FPT |
| Water Cooling - Temperature Requirement | 60-80°F (15-26°C) |
| Water Cooling Flow Requirement | 1.5 gpm (300 L/hr) |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian HS-20 Diffusion High Vacuum Pump - REBUILT Type No. 0165
