Agilent Varian M4 - REBUILT
Call for Price
In stock
SKU
REBUILT_M4
| Weight | 50 lbs |
|---|---|
| Pumping Speed | 1695 cfm |
| Ultimate Pressure | 6.50 x 10-1 torr |

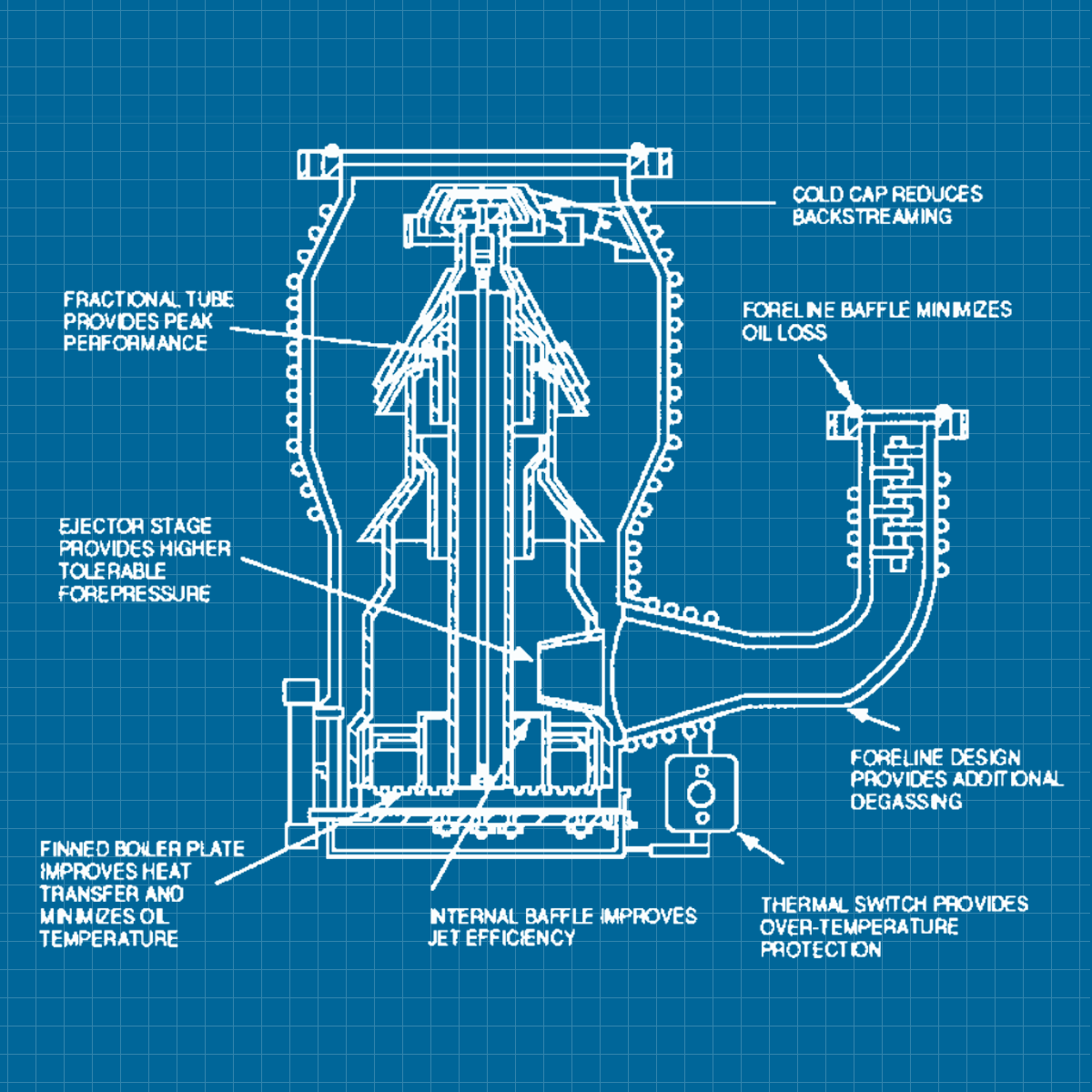

Agilent Varian M4 Diffusion High Vacuum Pump - REBUILT
- High pumping speed and through put in a compact design
- Fractionating jet purifies fluid
- High tolerable fore pressure
- Stainless steel body with 3 stage aluminum jet
- Full thermal protection
- Finned boiler increases surface area prolonging fluid life
- Rotatable inlet flange
- Corrosion resistant copper/nickel alloy water lines
- Foreline baffle prevents fluid loss to backing system
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Model | M2 0189 |
M4 0187 |
M6 0188 |
||
|---|---|---|---|---|---|
| Speed (l/s) | |||||
| Air | 175 | 800 | 1,500 | ||
| Hydrogen | 210 | 1,000 | 1,800 | ||
| Helium | |||||
| Operating range untrapped, Torr | 2 x 10-3 to < 5 x 10-8 |
1 x 10-3 to < 5 x 10-9 |
|||
| Max. fore pressure, Torr | |||||
| No load | 0.55 | 0.65 | 0.70 | ||
| Full load | 0.40 | 0.45 | 0.60 | ||
| Max. throughput | |||||
| @ 1 x 10-2 Torr-l/s | 0.65 | 1.5 | 2.4 | ||
| Min. recommended backing pump for max. throughput | |||||
| cfm | 5 | 10 | 11 | ||
| Backstreaming rate at inlet flange | |||||
| (mg/cm2/min) | 1 x 10-3 | 1 x 10-4 | |||
| Warmup time (min) | 10 | 12 | |||
| Cooldown time (min) w/ quick cool coil where applicable | 30 | 20 | |||
| Fluid charge | 100 cm3 | 250 cm3 | 400 cm3 | ||
| Electrical requirements | 1-phase | ||||
| 50/60 Hz | |||||
| 120/240 V | |||||
| Power (watts) | 450 | 1,190 | 1,785 | ||
| Cooling water gpm @ 60 - 80°F (15 - 26) | 0.1 | 0.15 | 0.2 | ||
| Type | Label | Description | Download |
|---|---|---|---|
|
Varian Diffusion Pumps - REBUILT | Data Sheet | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian M4 Diffusion High Vacuum Pump - REBUILT F8265301 / F8265-301 ASA w/ standard cold cap 120V F8265306 / F8265-306 ASA w/ standard cold cap 208V F8265302 / F8265-302 ASA w/ standard cold cap 240V
